MTI  |  SKU: 1000SP

2 x 5 Channels Syringe Pumps for DIY Electrospinning and Liquid Atomizer - 1000SP

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

2 x 5 Channels Syringe Pumps for DIY Electrospinning and Liquid Atomizer - 1000SP

MTI

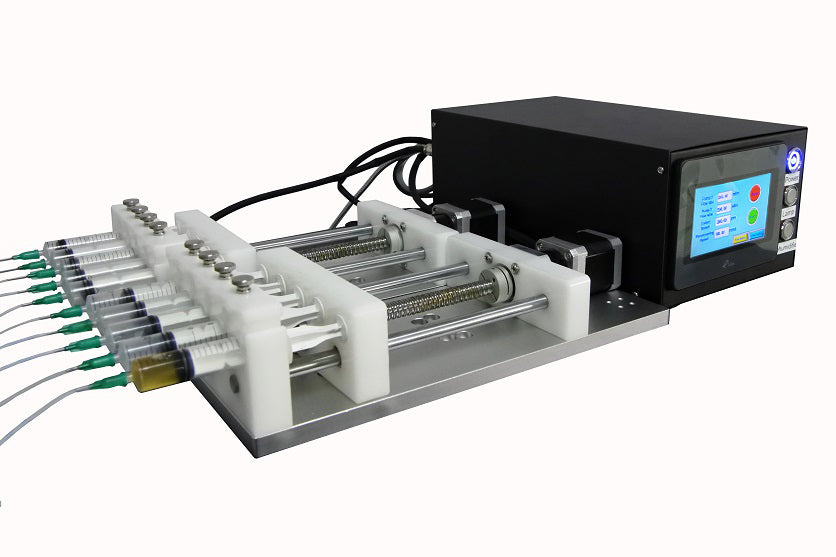

1000 SP is a multi-channel syring pumping system for DIY electrospinning, ultrsonic spray, or other liquid atomization. It provides two 5-channel syringe pumps and fixtures, which allows 10 syringes installed at the same time. It is an excellent platform for customers who want to build their own research equipment.

SPECIFICATIONS

Power

  • 100~240 VAC, single-phase, 50/60 Hz

  • Power: 50 W

  • An power adapter is provided
Dual-Channel Syringe Pump


  • Two syringe pumps are independently controlled.

  • 5 syringes can be installed on one pump to dispense different liquids at the same injection rate simultaneously. Up to 10 syrings can be installed.

  • Pumping rate: 5 mL/h ~ 300 mL/h adjustable for each pump (calculated based on ID 14 mm syringes)

  • Ten (10) 10 mL plastic syringes with ID = 14.4 mm are included.
Controller
  • A touch screen controller which controls pumping speed
Warranty
  • One-year limited warranty with lifetime support (demo before purchase available)
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request
Dimensions

  • Controller: 320 mm (L) x 170 mm (W) x 132 mm (H)

  • Syring Pump Stations (2): 320 mm (L) x 280 mm (W) x 90 mm (H)
Operation Instructions Video


Reference Article
Application Notes
  • Be cautious of using hazardous materials. The working chamber of this unit is not flame-proof, explosive proof or vacuum-sealed. Contact your health and safety department manager for detailed material handling instruction. If you need a vacuum-sealed safety chamber please consider the MSK-USP-06.
