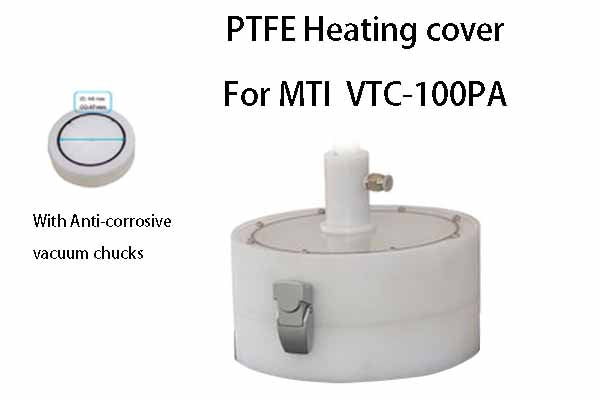

Anti-corrosive PTFE Heating cover (up to 200C) with PTFE vacuum chucks FOR VTC-100PA - MTI-PTFE-VTC100PA

PTFE Heating cover is designed for Heating over 120°C, PTFE Vacuum Chamber is required and is capable of drying temperature up to 200°C. Vacuum chuck and chamber also need to be replaced by PTFE material to withstand high heating temperature. A 30-segment programmable PID temperature controller is included. Please contact us to order this product to order the whole set.

SPECIFICATIONS:

Model No.	PP Chamber	PTFE-Chamber
Material	Polypropylene (PP) (Anti-corrosion) (In Standard Package)	PTFE (High-performance anti-corrosion) (Higher thermal resistance performance)
Max working temperature	Max. 120°C ( capable of drying temperature up to 120°C(< 5 minutes).)	Max.200°C  ( capable of drying temperature up to 200°C(< 5 minutes))
Vacuum Chuck Size	?44mm	?44mm
	?9mm	?9mm
Max working temperature	For the VTC-100PA Spin system, max. 200 °C (several seconds or minutes). For PTFE Vacuum Chuck only, max. operating temperatures are 250 °C.
For heating cover in the standard package	Thermal insulation for the Heating cover of VTC100PA, 6" INCH
Option parts	Please contact us to order MTI-VTC100PA-ORING, ( 12mm 45mm for ?44mm chuck) Anti-corrosive vacuum chucks or O-Ring with different sizes FOR VTC-100PA, MTI-VTC100PA
Operation Instructions	Click the picture to watch the demo video for how to use 9mm vacuum chuck hold 5mm sample.
