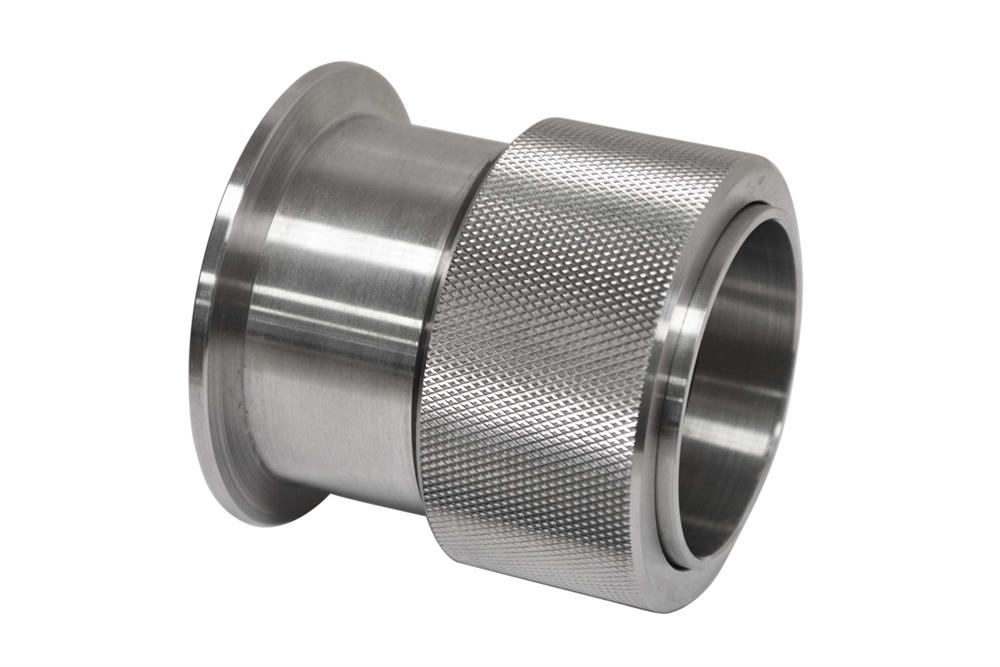

Single-side Quick Clamp Hi-Vacuum Flange for 25mm O.D. Tube with Optional Accessories - EQ-FL-25KF25

This is a one-side quick disconnect flange set for rapid access into 1" O.D vacuum chamber through flanged port. Quick-Disconnect flanges are a fast and convenient method for coupling and uncoupling metal and glass tubing.

SPECIFICATIONS

Type (Please select an option bar)	QuickDisconnect Flange	QuickDisconnect Flange with right-angle valve
Item Number	EQ-FL-25KF25-QD	EQ-FL-25KF25-QDV
Package included	One KF25 quick Disconnect flange set	One KF25 quick disconnect flange set  One KF25 clamp set   One KF25 to KF25 right-angle valve
Structure	Click to enlarge	Click to enlarge
Dimensions	1.57" Dia. נ2”L	8”L נ3”W נ3”H
Net Weight	1 lb	3.75 lbs
Features	Vacuum level: 10E-6 torr by the molecular pump and 10E-2 torr by the mechanical pump Temperature Range: -20ºC to 150ºC Made of 304ss Fittings Leak Test: 2x10-10 cc/sec He
Warranty	One year limited with lifetime support. Consumable parts like silicone O-ring are not covered by the warranty.
Optional	You may order a single end flange with a valve as a gas inlet ( click pic below left to order ) Due to the weight of the QuickDisconnect flange with the Right-Angle valve, we recommend the following support: Adjustable Tube Support (320 - 510mm H) for KF25 Flanges - EQ-FLS-KF25 only $39.95 Warning:   Must put thermal block inside the tube during heating to avoid o ring on the flange damaged, which not be covered by the warranty               ( click pic to order )
Installation Video
Optional	Click here to choose flange for tube from 42mm to 11"                        Vacuum Pump & High Vacuum Station
