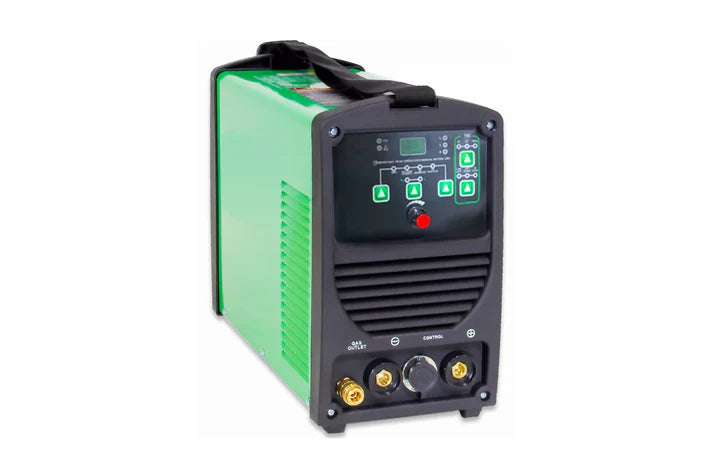

1200W ( 160A) NRTL Certified DC Output Power Supply for MTI's Arc Melting Systems - MSM-PS160

Inverter Type

Digital/Micro-controlled

Output Type

DC TIG, DC Tig

Voltage/phase

DUAL VOLTAGE 120/240V 1 PHASE

Max Rated TIG Amps

Max Rated Stick Ampes

TIG Amps @ Rated Duty Cycle

120V:
90A/13.6V @ 35% Duty Cycle/ 40º C
70A/12.8V @ 60% Duty Cycle/ 40º C
55A/22.2V @ 100% Duty Cycle/ 40º C

240V:
160A/16.4V @ 35% Duty Cycle/ 40º C
130A/15.2V @ 60% Duty Cycle/ 40º C
100A/14V @ 100% Duty Cycle/ 40º C

Stick Amps @ Rated Duty Cycle

120V:
90A/23.6V @ 35% Duty Cycle/ 40º C
70A/22.8V @ 60% Duty Cycle/ 40º C
55A/22.2V @ 100% Duty Cycle/ 40º C

240V:
160A/26.4V @ 35% Duty Cycle/ 40º C
130A/25.2V @ 60% Duty Cycle/ 40º C
100A/24V @ 100% Duty Cycle/ 40º C

Max Inrush ( I1MAX ) Amps

120V: 29.7A
220V: 28.8A

Maximum Rated (I1EFF ) Input Amps

120V: 18A
220V: 17A

TIG: 70V
Stick: 70V

TIG Output Range DC

120V: 10A-90A / 10.4V - 13.6V
240V: 10A-160A / 10.4V - 16.4V

Stick Output Range DC:

120V: 10A-90A / 20.4V - 23.6V
240V: 10A-140A / 20.0V - 26.4V

Stick Hot Start Amps

0 - 100%

Stick Function

Auto Adaptive Arc Force Control

Stick Hot Start Type

Adjustable Hot Start

Stick Hot Start Time

Auto - Set

6010/Cellulose Capable

Limited to 6011

Minimum Amp DC TIG Start

TIG Start Type

• High Frequency
• Lift TIG
• Live Lift TIG

Foot Pedal

Optional

Compliance

ETL certified ( NRTL recognized)

Warranty

Three years limited manufacture warranty
