1650°C Bridgman Furnace for Directional Solidification and Crystal Growth - EQ-SKJ-BG1650-LD

• Please view "Broad temperature plateau for high ZTs in heavily doped p-type SnSe single crystals" published by Energy & Environmental Science, in which an MTI Verticle Bridgman Cyrstal Growth Furnace was used for the thermoelectric material SnSe Single Crystal Growth.

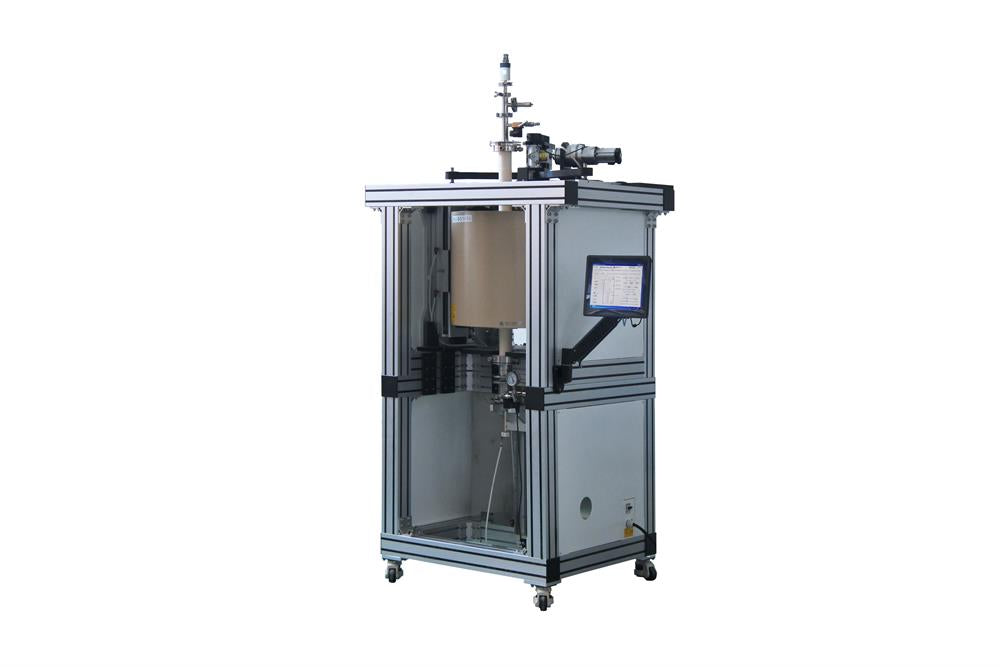

SKJ-BG1650 is a 1650°C max. Bridgman furnace for directional solidification and single crystal growth with a boule size up to Ø37mm.
The vertical furnace has three independently controlled heating zones with a total heating length of 300 mm to set up different temperature gradients for crystal growth.
In contrast to other Bridgeman systems, SKJ-BG1650 keeps the melt stationary while moving the furnace up to control the temperature gradient, ensuring the stability of the growth interface.

The sample rotational stage can be added at an additional cost for single crystal growth.

Specifications:

Advanced Features	Three (3) independently controlled heating zones for temperature gradient tuning.  ?42mm Alumina sample pulling stage with TC attachment for accurate temperature monitoring of the crucible at the bottom. Electric elevated crucible stage enables an automatic and convenient sample loading / retrieving;
Power Requirements	220VAC single phase 50/60Hz 9.5KW
Working Temperature	Heating Element: Silicon molybdenum rod Max. Working Temperature: 1700°C ( <1hr) Continuous Operating Temperature: 1600°C
Processing Tube & Flange	High purity alumina furnace tube, Size: ?80mm O.D. x 74 mm ID x 1000mm L A pair of stainless steel flange is connected to both end of the processing tube which allows for inert gas purging or vacuum during the crystal growing process
Sample Stage	?42X40mm H Alumina Sample Stage B type thermocouple insert from the bottom of the sample stage for accurate temperature measurement of the crucible
Crucible Retrieving Mechanism	Automatic sample retrieving system for easy crucible loading/unloading,  700mm max. travel distance
Heating Zones	Three heating zones with independent temperature measurement and control Three zones: 300mm (12") long in total, please click bottom left picture for more size info; 100mm long for each zone, please click bottom right picture for more size info;
Temperature Control	Three EPC 3004 Eurotherm temperature controller with 28 programmable segments for precise control of heating, cooling, and dwelling rate.  Built-in overheating & broken thermocouple protection. European Temperature controller, with +/- 0.1 ºC temperature accuracy. Three B type thermocouples (one for each zone).
Cooling Fans	One speed adjustable cooling fans are installed at the bottom exit of the furnace
Furnace Travel Distance & Speed	As the furnace heater moves upward, the crucible is moving toward the bottom exit of the furnace where the lower temperature is seen.  The maximum travel distance of the furnace heater is 200 mm.  Travel speed: 0.03-3 mm/hr
Vacuum Pump (Not included)	10E-2 torr via dual-stage mechanical vacuum pump (bottom right picture) 10E-5 torr via Turbopump (bottom left picture)  The vacuum pump is optional. Please click here to choose a vacuum pump.  For oxygen-sensitive material, suggest using recirculating gas purification system ( < 1 ppm) to replace turbopump (Pic. 3 - 4)   Pic. 1    Pic. 2  Pic. 3    Pic. 4
Compliance & Warranty	CE certified NRTL or CSA certification is available upon request at the extra cost. One year limited warranty
Dimension	Controller stage: 860mm L x 600mm W x 1220mm H Furnace stage: 1170mm L X 910mm W X 2500mm H
Shipping Weight & Dimensions	1) 3225 lbs, 83x48x86" 2) 751 lbs, 49x41x58"
Demo Video
Installation Video
Optional & Related Products	For single crystal growth, the rotation of the crucible stage is needed, an additional cost will apply. Please contact our engineering team for more information. A board selection of crucible materials: Boron Nitride; Alumina; Zirconia; Graphite....         Alumina      Boron Nitride  Graphite   Zirconia            Grown crystal boules:   Al, Ag, Au, Cu, Mg, Ni
