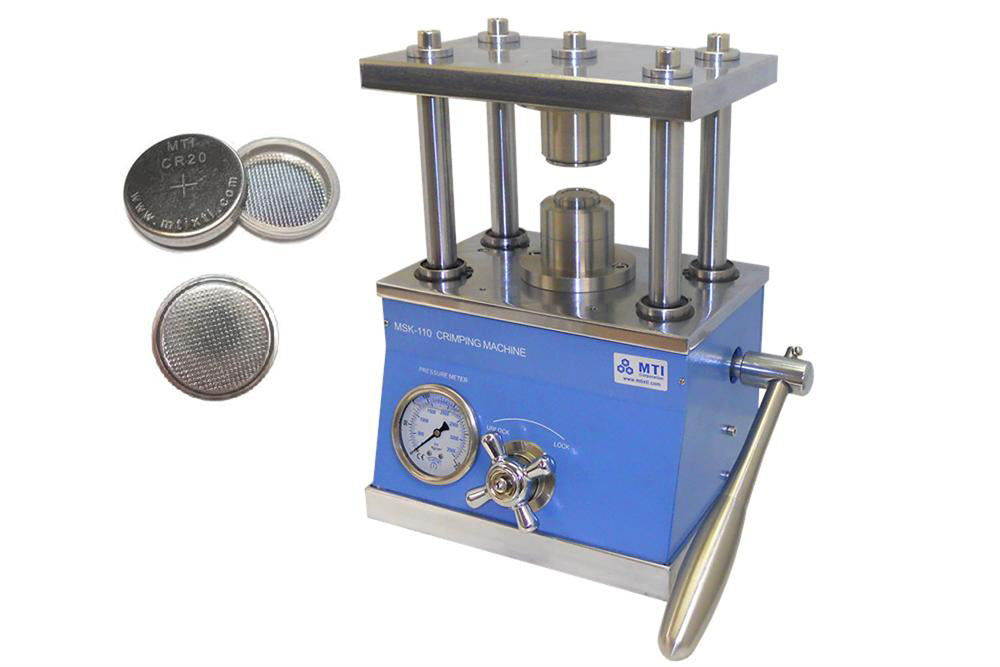

Hydraulic Crimper for All Types of Coin Cells with 100 Pcs CR2032 Case - MSK-110

MSK-110 is a coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032, CR2025, and CR2016 with an included die. It can also crimp CR2325, CR2450, AG3, AG5, and other special size cases with optional die sets. We don't suggest to use the machine inside the glovebox.
MTI has granted the patent 201120462024.0 for the Hydraulic Coin Cell Crimpers MSK-110 since July 2012

Price Match Guarantee from qualifying competitors in the USA

SPECIFICATIONS:

Features	Heavy-duty steel frame PTFE Anti-Corrosion Core prevents coin cells from being short-circuited An Aluminum tray is included to put at the bottom of the crimper for avoiding oil leakage by accident
Output dimension	O.D +0.15mm after crimping (Original O.D 19.96mm, then output is about 20.11mm)
Crimping Die	One set of crimping die for CR2032, CR2025, and CR2016 is included This is consumable, please click the picture below to order a replacement 100 pcs Coin cell cases (MTI's CR2032 cases) are included in the package for testing and immediate use Optional die available for crimping CR2325, CR2450, AG3, AG5  An optional Crimping Die Core for the 3-Electrode 2032 Coin Cell is available at extra cost.
Pressure	Max. 8 metric Tons of hydraulic pump with automatic pressure relief Recommended CR20XX series coin cell sealing pressure: 850 -1000psi Effective piston area: 11.34 cm^2
Compliance	CE Certified
	Patent Granted: 201120462024.0 for the Coin Cell Case Crimping since July 2012
Maintenance & Equipment Care	Electrolytes are highly corrosive materials; therefore, the die set must be cleaned with ethanol after the completion of each experiment in order to avoid any corrosion damage. Also, turn the hydraulic valve to the Lock position when not in use. Please be aware that MTI will not be liable for any losses/damages from improper use, improper care & maintenance, and abuse of the product.  A 13"x9" aluminum tray is included to keep the workstation clean in case of an oil leak.
Application Notes	Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for assembling the coin cell). Access to the Over-pressure limit screw by removing the front panel (click the first picture below for details)  Please see instructions below about changing the upper and lower die for converting the unit to MSK-110D, which disassembles crimped coin cells - How to Install the Disassembling Die on MSK-110 Crimper Click here to learn: Solution when the crimping die gets stuck Please click the picture below to order a replacement die whenever the die gets damaged Battery Video: How to Make Coin Cell by MTI's R&D Production Line ( pls click pic -right 1-2) Click here to watch the video walkthrough of replacing the lifting jack.
How to Choose MTI Crimper	MSK-110 is a hydraulic manual crimper. It is not suitable for use inside the glovebox. Mainly because there is a risk of oil leakage after long-term usage MSK-110-S is driven by inert gases, which is suitable for use inside the glovebox with N2/Ar and for faster operation. MSK-160E is driven by electricity and is good for use in the glovebox with N2/Ar. However, the crimping speed is slower than that of MSK-110-S. It has a compact size and can be transferred via the air-lock chamber of the glovebox. Attention: Please use MTI Branded Coin Cell Cases with our crimper. We don't guarantee the crimping quality if other-brand cells are used.      MSK-110         MSK-110S     MSK-160E
