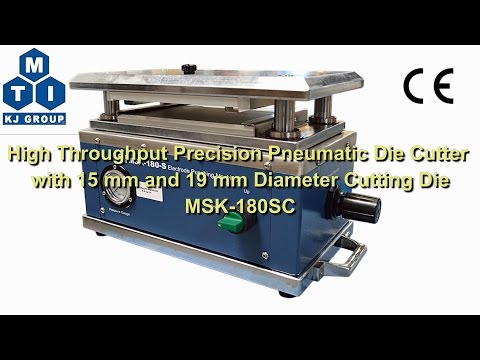

Hi-Throughput Pneumatic Disk Cutter with 15 & 19 mm Die for Coin Cell Separator & Electrode - MSK-180SC

•  Two sets of round disk cutting dies are included for immediate use:
• One 15 mm diameter die for Cathode & Anode electrode cutting
• One 19 mm diameter die for separator cutting
• 8 pcs round electrode per cut -- 8 time high speed than conventional dis cutter
• Customized dies 20 mm diameter is available at an extra cost
• Knife with special silicon coating in cutting die is available upon request to cut Li metal foil.

Special Die cutter for Li metal foil (paraffined papers are included)
Li metal foil should be sandwiched with two pieces of paraffined papers during cutting.

• The size sketch of disc cutting die is shown below:

                         Warning: please don't use other material to replace the pad

• Max. 0.5mm (tested with aluminum laminated film)

• ±0.1mm

• Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

• KF40 Feedthrough with all necessary wire and tube are included to allow operating inside the Glove box, which has a KF40 port (Click on the first and second pictures for details)
• Please use Inert gas when operating in the glove box
• One KF-40 Clamp with rubber O-ring is included

• 0.5~1.0Mpa (0.7Mpa is recommended)
• For the use inside the glove box, please use a compressed inert gas such as Ar
• For the use outside the glove box, you may use the air compressor, 60 psi recommended. (Compressor is not included, please click the image on the left to order). And please order 8mm Tube Size to M-Style Air Plug with the air compressor.
• Attention: If a gas cylinder is used instead of an air compressor (pic2), a two-stage pressure regulator (pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

 pic1  pic2

• Manually

• 12mm

• ~30000 strokes

• CE Certified
• No UL required because of no electricity
• Patent Granted: 201220296271.2 for the Coin Cell Disc Cutter since January 2013

• You might order coin cell cases or the split test cell (Pic 1 @ Pic 2 below )
• You might order pouch cell cutting die for pouch cell electrodes cutting (Pic 3)
• It is good for high-throughput battery research (Pic 4)

• Customized dies with Max. area 140mm L x 80mm W, available at an extra cost

• If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries
• 15mm for cathode and anode
• 19mm for separator
• For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as an optional die)
• Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells
• Warning: You must pay great attention to install die or change die from one size to another. The tolerance of precision die is very little. Please contact us if you have any question
• Misalignment will result in die damage. Please read the operation manual and watch the instruction video carefully when changing die. MTI is not responsible for the damage caused by mis operation. Strongly suggest with buy the several cutters with pre-installed die
