MTI  |  SKU: LAOe101005S2

LaAlO3,(110) 10x10x0.5 mm substrate , 2 side Epi polished - LAOe101005S2

€94,64

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

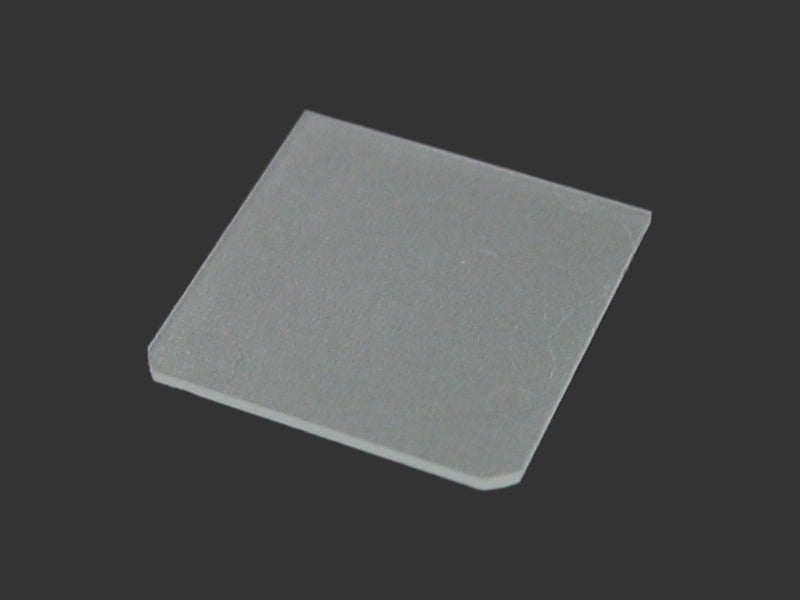

LaAlO3,(110) 10x10x0.5 mm substrate , 2 side Epi polished - LAOe101005S2

MTI


Substrate Specifcations:

  • Wafer Size:     10 x 10 x  0.5 mm thickness +/-0.05 mm,
  • Wafer Orientation:   (110) +/-0.5 Deg
  • Polishing:   Two sides CMP polished with free sub-surface damaged.
  • Surface finish (RMS or Ra) :  < 15A
  • Package:    Under 1000 class clean room, and in 100 grade plastic bag in a wafer container.
  • Lattice Constant   a=3.792ŠPseudo cubic
  • Warning: LaAlO3 crystal  has a visible twin on a polished surface, which is normal nature .
