MTI  |  SKU: LAOe50D05C1

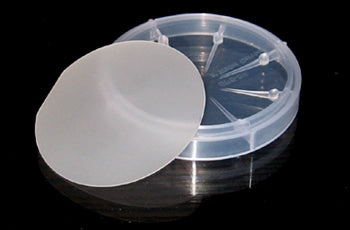

LaAlO3,(110) Ori. EPI polishing 2" x 0.5mm wafer 1 SP --- Qty discounted!-1

€561,47

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

LaAlO3,(110) Ori. EPI polishing 2" x 0.5mm wafer 1 SP --- Qty discounted!-1

MTI


Substrate Specifcations:

  • Wafer Size:    2" dia +/- 0.5 mm   x  0.5 thickness +/-0.05 mm
  • Wafer Orientation:   (110) +/-0.5 Deg
  • Edge Orientation:   <001> +/-1 Deg with 16 mm Length
  • Polishing:   CMP polished with free sub-surface damaged.
  • Surface finish (RMS or Ra) :  < 15A
  • Package:    Under 1000 class clean room, and in 100 grade plastic bag in a wafer container.
  • Lattice Constant   a=3.792ŠPseudo cubic
  • Warning: LaAlO3 crystal  has a visible twin on a polished surface, which is normal nature .
