NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter -FYP-Pump

€0,00

Working Voltage

110VAC 50/60Hz 208-240VAC 50/60 Hz

Option Accessories

Pump with Exhaust Filter Vac. Pump+ Valve & bellow

Product variants

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter -FYP-Pump

MTI

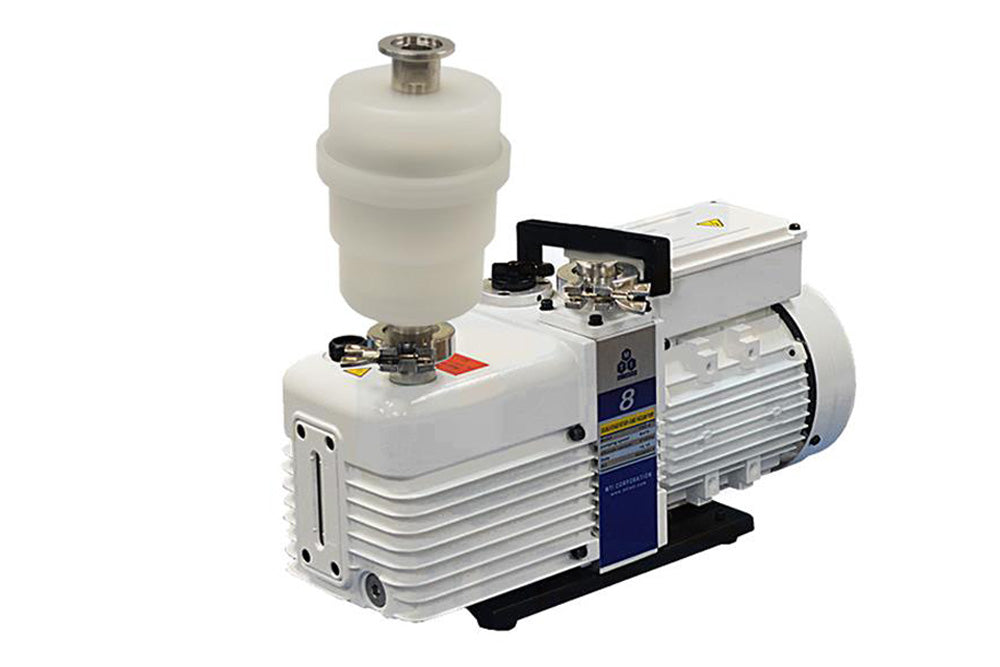

EQ-FYP (VRD-8) is a middle-size mechanical vacuum pump with complete accessories for continuous running.

Specifications:

Voltage / Frequency	AC 100~120V/60Hz or AC 208~240V/50/60Hz (please select the voltage in the options bar)
Rate (m³/h)	50Hz: 8 m³/h (2.2 L/s) 60Hz: 9.6 m³/h (2.6 L/s) Please click here to convert metric to English unit
Body Material	Stainless Steel
Maximum Pressure	?4E-3 Torr (click to see the conversion of pressure unit)
Power (HP)	0.4KW / 0.37KW, DB<=56
Motor Speed	50Hz: 1440 rpm 60Hz: 1720 rpm
The volume of Oil (ml)	1000 (included)
Working Temperature	5-40
Vacuum port	Built-in KF25D standard Inlet/outlet port
Accessories	32 Oz high-quality oil is included for immediate use (click picture below left to order spare) One Exhaust filter is included to Eliminates pump oil fumes Returns used oil to the vacuum pump Traps Particles to 0.3 microns Replaceable coalescing element

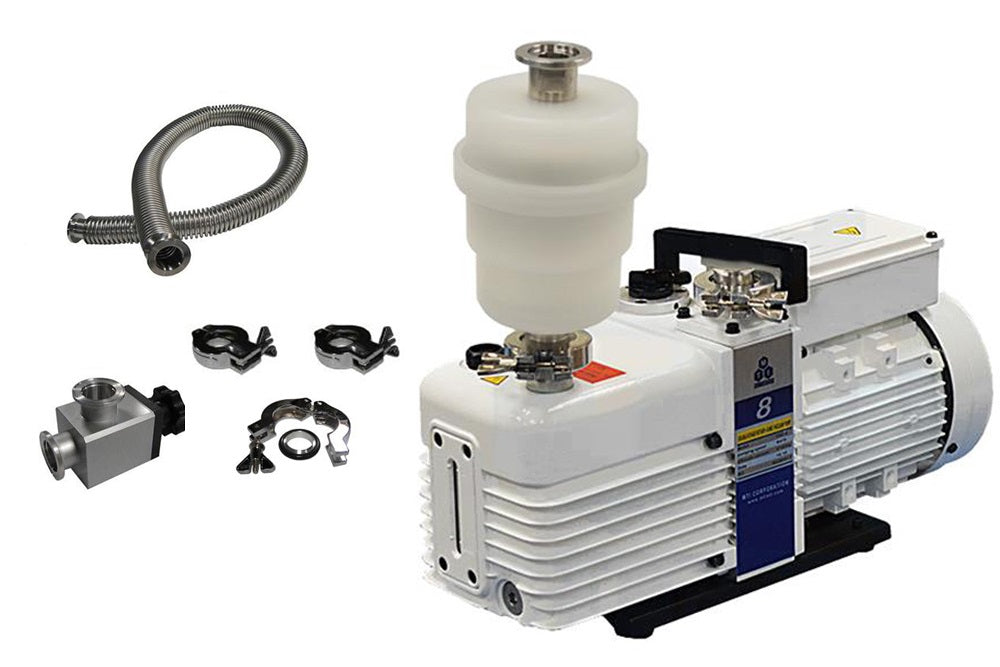

Options	You may order the pump together with SS below and a valve at the extra cost ( Pic. 1) Must use a Vacuum filter or cold trap to protect the vacuum pump if use the pump for CVD (Pic. 2-3) Please choose a vacuum gauge by clicking picture 4 below Pic. 1 Pic. 2 Pic. 3Pic.4
Dimension	165mm x 460mm x 240mm; 6.5" x 18" x 9.5"
Weight	21 kg (47 lbs)
Certification	UL & CE Certified
Warranty	One year limited with lifetime support *(Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned below, especially: Pumping of corrosive or explosive media Pumping of condensing vapors Pumping of liquids Pumping of dust Operation with improper high levels of insulated heat input Operation in potentially explosive areas
Operation Instructions
