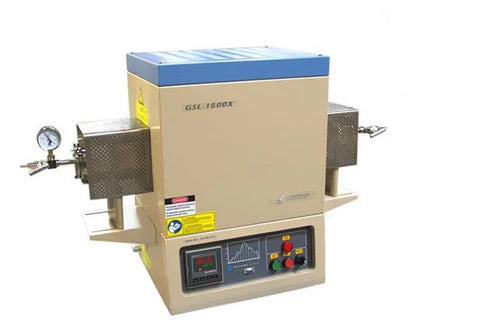

1800C Compact Vacuum Tube Furnace (60mm OD) with Kanthal Heating Elements - GSL-1800X-KS60

GSL-1800X-KS60 is a compact tube furnace with Kanthal Super-1900C Grade MoSi2 Heating Elements and high-quality alumina refractory board with ZrO2 liner. Vacuum sealing flanges with valves, a vacuum gauge, and a high-purity alumina processing tube (60mmO.Dx 610 mm L) are included for immediate use. The temperature of the GSL-1800X-KS60 tube furnace is controlled by a 30-segment programmable high-precision SCR (Silicon Controlled Rectifier) digital controller with an accuracy of +/-1 ºC. This tube furnace has a max. working temperature up to 1800 ºC. It is widely used in material & chemical research labs to sinter all types of new material samples under vacuum and other gas conditions.

SPECIFICATIONS

Furnace Structure	Double-layer steel casing with air cooling. Two cooling fans inside to keep case temperature < 60oC. High purity Alumina refractory chamber with 15mm 2500ºC grade YSZ ceramic liner for max energy saving. Alumina tube, vacuum flange, gauge & valves are included. Super-energy saving: only consumes <1600W power when kept at 1800°C.
Power Consumption	Max. 2.5 KW
Input Voltage	Single Phase, 208V~240V AC, 50/60 Hz (30A breaker required)
Working Temperature	1750°C continuous 1800°C Max. < 1 hours
Max. Heating / Cooling Rate	5°C / min ( T< 1600°C ); 2°C / min ( T>1600°C )
Heating Zone Length	125 mm
Constant Temperature Zone (CTZ)	50 mm ( +/- 3°C) and 60 mm ( +/- 5°C ) 70 mm +/- 10°C @ 1500°C Note: If the temperature is lower, CTZ will be short, and Temp higher, CTZ will be longer
Heating Elements	4 pcs Kanthal 1900ºC grade MoSi2 heating elements, made in Sweden
Tube Materials	High purity Al2O3 ceramic, Purity > 99.9%
Temperature controller	Eurotherm 3000 Series Programmable Temperature Controller. 1 program, 24 segments programmed with ramping, cooling and dwelling steps Temperature Accuracy: ± 0.1ºC
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Eurotherm iTools software enables the user to edit temperature profiles and manage heat-treatment recipes for MTI furnaces. Note: Due to the complexity of the controller operation, we strongly suggest customers to purchase this PC control kit along with the furnace and our engineers will have the software & hardware pre-installed. Please note that this PC control kit is not for sale individually.
Processing Tube	Premier Grade alumina tube made in the USA ID: 60mm x OD: 54 mm x 790 mm length Four fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube (Ceramic blocks must be fully inserted into the furnace chamber before heating). For 60mm tubes, it is recommended that customers purchase two pairs of tube support to prevent the tube from bending under high temperatures (please click on the last picture to order).
Sealing Flanges	One pair of sealing flange with double silicone high-temperature O-ring is included. Two SS needle valves and one dial vacuum gauge are installed with a flange for immediate use. Vacuum pressure can reach 50 mTorr by a quality mechanical vacuum pump and 10^-5 torr by a turbo molecular pump. Please click the picture below to see the flange assembling details.
Fitting Ports	Standard 1/4‘’ Barbed fittings with needle valves. For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order. Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order. Optional: You may also consider using the parts in below to increase the vacuum efficiency. Please click here to order digital vacuum gauge for precision vacuum control up to 10-4 torr  You may click here to order flow-meter and install in tube flange (see picture below) KF25 Stainless steel Bellows  KF25 Quick Clamps
Vacuum Level	Limited by a vacuum pump 50 mtorr can be achieved by a mechanical pump 10^-5 torr can be reached by molecular pump The vacuum pump is not included, please order separately by clicking here
Power Cable & Plug     (click here to order plugs from us)	10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking picture below-left The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below right (30A plug)
Compliance	CE Certified NRTL (UL61010) or CSA certification at extra cost.（ please click marks below to learn details )
Application Notes	In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use, please click here to learn how. How to set up ceramic tube and vacuum flange for MTI Tube furnace  Proper placement of tube blocks The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa Never use graphite crucible in the alumina tube. Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages. The gas flow rate should be limited to < 200 SCCM ( or 200ml/min ) Vacuum pressures may only be safely used up to 1500°C

STANDARD PACKAGE

Description	Quantity	Picture
Kanthal 1900 grade MoSi2 Heating Element 4 pcs in the furnace	4 pcs
Vacuum Sealing and Connecting Flanges  with 2 Pairs of High-Temperature Vacuum Gasket	1 set
B type Thermocouple Ø4.8×L175mm	1 set
Alumina tube Tube ( 60OD x 54ID x 790L, mm )	1 pcs
Foam Al2O3 Tube Block	4 pcs
