 Die10-SxxHT is a High Throughput HTP) multi-well pressing dies with 10 mm ID with the standard option, 9, 16, 25,  and 36 wells.  It is made of high-quality aluminum alloy with Max. 90 MPa pressure for each hole, and it is designed for high throughput research of ceramic materials.

SPECIFICATIONS:
Material
  • 7075  Aluminium alloy
  • Tensile Strength:       524Mpa
  • 0.2% Yield strength:   455Mpa
  • Hardness:                  150HB
  • Max. working temperature 150oC
Dimensions &
(Max. Load
  • 10 mm ID for each well
  • Capacity for single well:    0.6 ml
  • Max. pressure for single well:  90 MPa
  • 9 Well die:    L50mm*W50mm*H30mm      6.3 metric tons
  • 16 well die:   L60mm*W60mm*H30mm      11.2 metric tons
  • 25 well die:   L75mm*W*75mm*H30mm     18 metric tons
  • 36 well die:    L90mm*W90mm*H30mm       (25 metric tons
  • 48 well die     L133mm*W100mm*H30 mm   (33.6 metric tons)

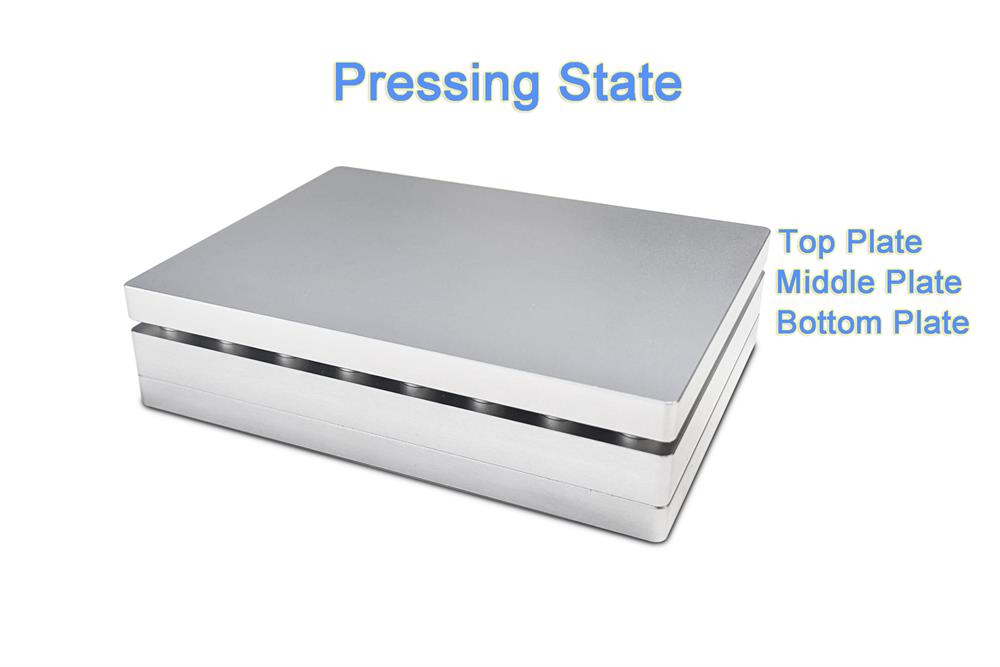

  • All heights measured above are the height of the pressing die with the top, middle and bottom plates stacked without load.
  • The height of the top, middle and demolding plate stacked without load is 40mm.
Well Options
  • 9 wells and 25 wells are standard products,
  • Please choose from the product option bar
  • The customized well number is available upon request at the extra cost
Related High throughput Device
  • May choose  MSK-SFM-50 plate shaker as HTP mixer ( Click Pic 1 to order )
  • May use YLJ-HP300 the flat hot press to press multi-well die ( Pic. 2)
  • Please use EQ-XRF-32-LD for automatic composition analysis by the XRF scanning system ( Click Pic. 3
  •    Pic. 1  Pic. 2  Pic. 3

Cautions
  • WARNING:
  • DO NOT press flammable, corrosive, or explosive materials
  • Attention:
    • To achieve the best result, please ensure the volume of sample powder in all 32 pressing dies are the same.
    • Use ethanol to clean the pressing die before and after use every time
    • Use anti-rust oil after the operation and store it in a dry place to avoid rusting.
    •  3'' Dia. Sieve Set No.200&450 Mesh can be used to separate the 32~75 microns particles from the powder clumps
    • .
Instruction Video


Steps to make a sample pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill
  • Calcine mixed the powder in a high temp furnace under a suitable temperature
  • Crushing and Grinding calcined powder again by mortar or ball mill
  • Put calcined powder into the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out the pellet sample from die
  • Sintering the pellet under a suitable temperature in Oven
  • Then, a new material sample is formed!
Warranty
  • Pressing Dies are consumable products and are not covered by MTI's warranty.
