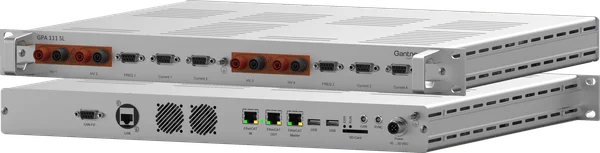

Power Analyzer - GPA111 SL

4 high voltage input channels

• Range: up to ± 1500 VDC

4 current input channels

• For current transducers build-in bi-polar power supply

2-6 configurable digital input channels

• For torque sensors and speed meters Range: 0.1 Hz up to 1 MHz

Power quality anlaysis

• 100 kHz sample rate reactive, apparent, active power, Urms, Irms per phase and total, Power factor (cos phi), instantaneous power, voltage, current, Total harmonic distortion THDu and THDi, rotational speed and direction, torque, mechanical power, power efficiency

Data Logging

• Storage for raw measurements and result values on build-in 4 TB SSD
