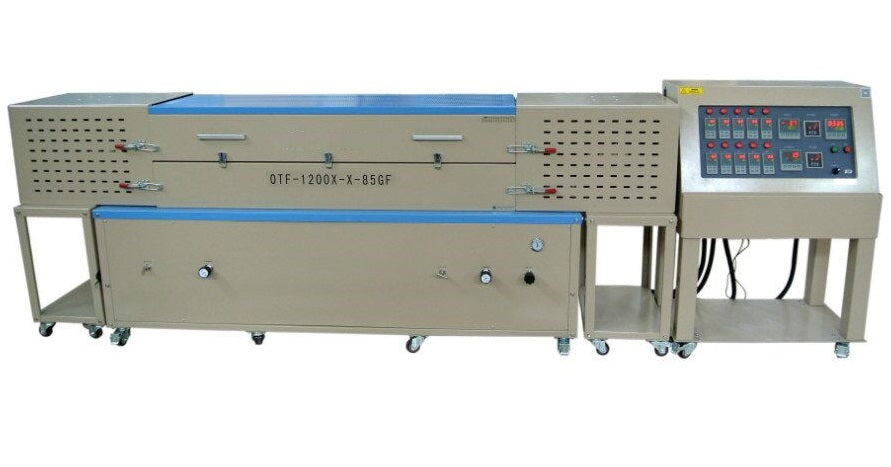

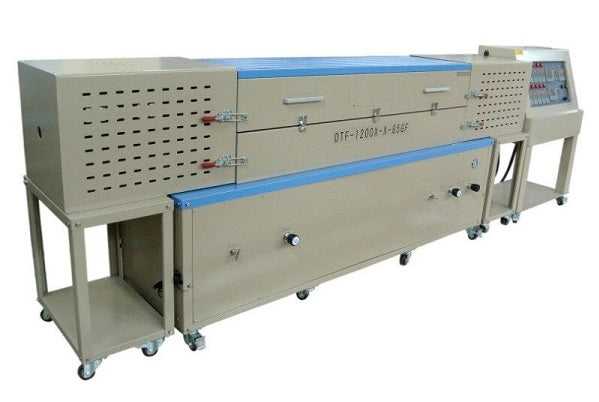

1100C 10-Zone High Pressure Super-Alloy Tube Furnace w/ Pressure Control System - OTF-1200X-X-85GF

• Please view "Isotropic round-wire multifilament cuprate superconductor for generation of magnetic fields above 30 TMat-2014-13-4-Larbalestier-Isotropic round-wire" published by NATURE MATERIAL 3887, 9 MARCH 2014, in which an MTI High-Pressure furnace was used.

OTF-1200X-X-85GF is a high-pressure tube furnace with ten heating zones and pressure & gas flow control system. The processing tube is made of Ni-based superalloy (45 mm ID x 2400mm L) which can withstand high pressure  under both oxygen and inert gases upto 1000°C. Its pressure control system can maintain a stable pressure during the heating process which is critical for processing Fe-based superconductive material, or new generation oxide ceramics.

SPECIFICATIONS

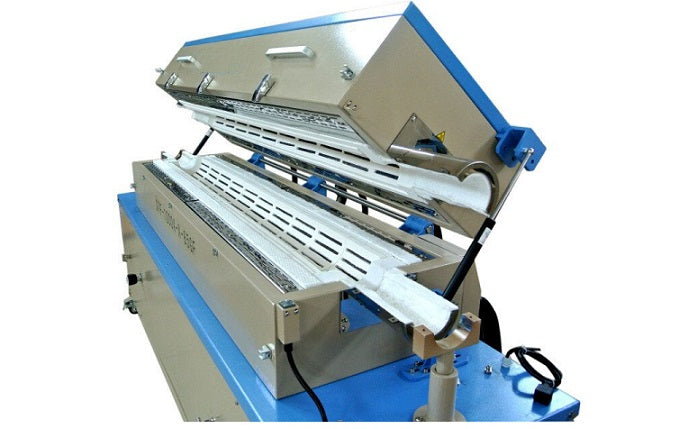

Furnace & Power	Splitable Eight heating zone tube furnace with air cooling layer High quality fibrous insulation and reflective coating for max. energy saving. Power:  208 - 240VAC 50/60Hz, Single Phase, 12KW max. (circuit breaker which is rated @ 80amps or higher is recommended)
Heating Zone	Ten heating zones:   150mm / zone Total heating zone length: 1500mm  Constant temp. zone: 900mm ±5°C
Working Temperature	1100°C max.for < 1hr   1000°C for continuous Heating rate: ?10°C/min
Temperature Control	Ten digital temperature controllers to control each heating zone Each channel is with PID auto-tuning, up to 30 segments programmable Built-in overheating & thermocouple failure protection. +/- 1 ºC temperature accuracy.
Heating & Cooling Rate	Heating:  0-200 ?10/min ,          200-700 ?6/min, 700 -900 ?3/min,   900-1100?1/min Cooling:  200-800 ?10/min ,  800-1100 ?5/min
Thermocouple	Omega 3mm OD K Type with high-temperature (220°C) connector Total 10 TCs, one for each zone

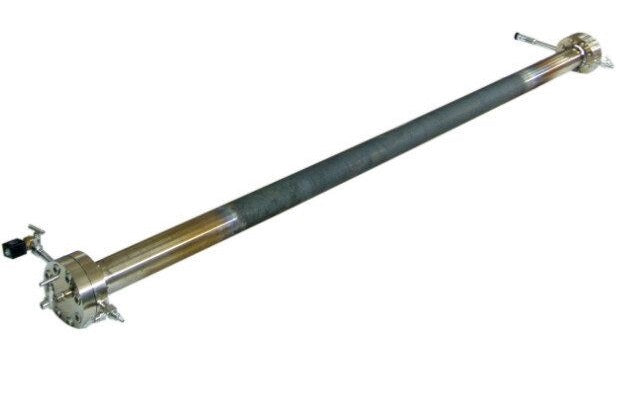

Process Vessel	The pressure vessel is made of Nickel-based superalloy GH747 (Click to download GH747 nickel-based alloy datasheet) Vessel size: OD 85 x  ID 45 x  Length 2400 (mm)  Optional: torque wrench is available here to avoid over-tighten the flange bolts. Please click the image on the left to order. Warning: Never put a sample inside tube directly without crucible or isolated foil to avoid sample react with tube alloy.
Working Pressure	15 Mpa max. at  <800°C 10 Mpa max. at <900°C 6   Mpa max. at <1000°C 4   Mpa max. at <1100°C Never heat up above 1200°C
Working Gases	Inert gas and oxygen No hydrogen or any flammable gas
Flange and  Fitting	Two CF type flanges are weld with female 1/4"NPT fitting to connect high-pressure tube 2 pcs Copper o-rings are included  ( spare copper O-ring is available as consumable )

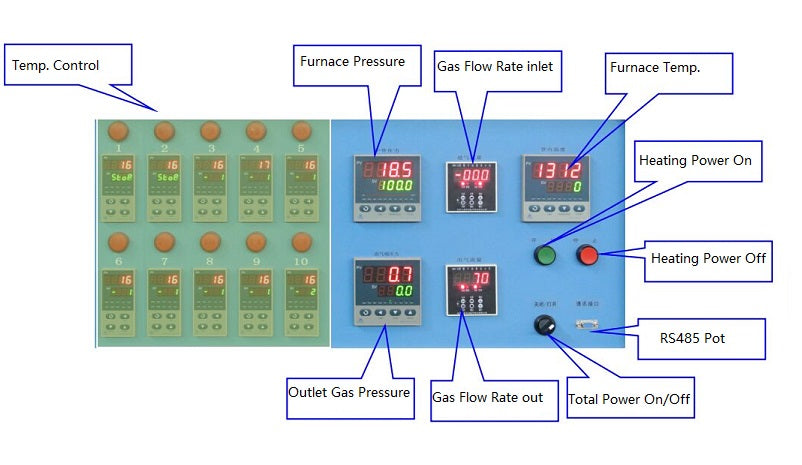

Gas Flow & Pressure Control System	Gas flow and pressure control system is built in the separated unit with digital display ( see pic left ) Two pressure sensors and digital displays are installed to monitor the pressure for gas inlet and furnace tube One high-pressure mass flow controller is installed at the gas outlet to control gas flow rate with max. 10Mpa working pressure and 500 SCCM flow rate  Pressure relief valves are installed to ensure safety. The valve will release gas when the pressure reaches the setting point.

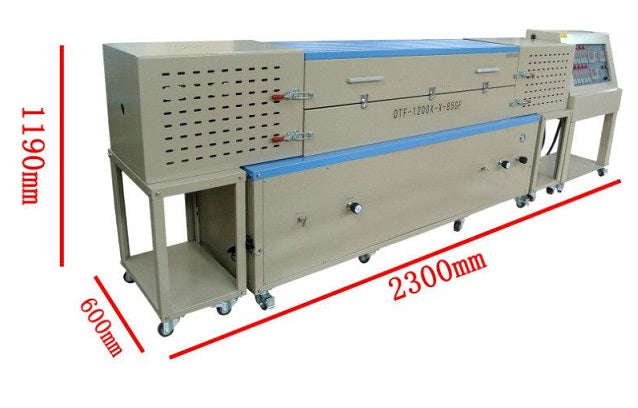

Dimension & Weight	Dimension:  26000mmL*700mmW*947mmH (furnace); 1100mmL*600W*1200mmH (control consol) Net weight:  480 kg
Operation Instruction
Compliance and Warranty	NRTLNRTL or CSA certificate is avaialble upon request at extra cost                  One year limited warranty for lifetime support
Application Notes	Hytort Application, or named Hydroretorting of Shale Oil is a process developed by IGT to double the yield of shale oil and hydrocarbon gases. MTI High-Pressure furnaces with Ni-based superalloy tube is an ideal tool for conducting related experiments. Please click underlined to view research paper.
Safety Notes	Ni-based Superalloy ( Waspaloy or equivalent) is a reliable processing tube which can be used under high temperature and high pressure.. It has excellent ductility and tensile property so only creep deformation happens under overpressure destruction test and following by a crack formed (usually at the hot zone at the center of tube) to release the pressure. Brittle fracture won’t happen in the overpressure destruction test which means no tube explosion will happen under overpressure of inert gas or safe gas or under other accidents causing overpressure of inert gas or safe gas.                       Above pics show Ni-based Super-alloy ( Waspaloy or equivalent) processing tube under overpressure test Attention: For the use with flammable, toxic or corrosive gases, you must contact MTI engineering group for the consultation to know all the prerequisites and precautionary measures. Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Please click here to learn how to install the gas regulator.
