MTI  |  SKU: NH20-28028030

20 pcs 2" Die / IC Tray (36 Pockets of 280x280x30 mil or 7.1x7.1x0.76 mm) - NH20-280-280-30

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (36 Pockets of 280x280x30 mil or 7.1x7.1x0.76 mm) - NH20-280-280-30

MTI

Specifications:
TYPE:                                      NH20-280*280-30
Material:                                  Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.)):   109 - 1011
Temp. Limit:                             70 centigrade

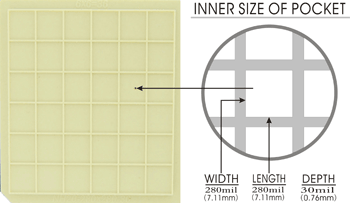

POCKET DETAILS:
Pocket Size(mil):   L280*W280*D30
Pocket Size(mm):  L7.11*W7.11*D0.76

Array (Capacity):  6*6 =36

Package:            sold in 20 pcs per box

OVERALL TRAY SIZE
Size       = 50.67 x 50.67 (mm)   or 2"x2"
Height    = 3.94mm
Flatness = 0.30mm

Note:

  • This series provides a safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp,  please see related product below
