MTI | SKU: FYP-RC48

NRTL Certified - Large 960 L/min Double Stage Rotary Vane Vacuum Pump - FYP-RC48

Name: NRTL Certified - Large 960 L/min Double Stage Rotary Vane Vacuum Pump - FYP-RC48
Brand: MTI
SKU: FYP-RC48
Availability: InStock

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

MTI

FYP (VRD-8) is a middle-size mechanical vacuum pump with complete accessories for continuous running.

Specifications:

Voltage / Frequency	AC 208~240V/50/60Hz , Three phases Power: 1.5 KW
Rate (m³/h)	50Hz: 48 m³/h ( 13.3 L/s, 798 L/m) 60Hz: 57.6 m³/h ( 16 L/s) 960 L/m) Please click here to convert metric to English unit
Body Material	Stainless Steel
Maximum Pressure	≤4E-3 Torr (click to see the conversion of the pressure unit)
Motor Speed	50Hz: 1440 rpm 60Hz: 1720 rpm
The volume of Oil (ml)	3.3L - 4.5 L ( Included )
Working Temperature	5-40℃

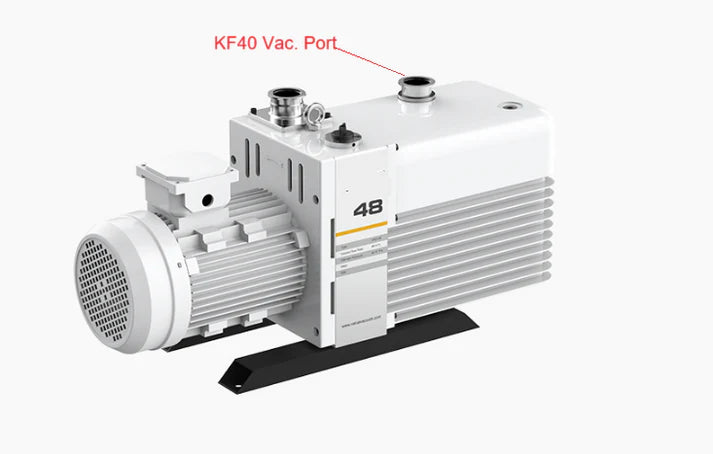

Vacuum port	Built-in KF40D standard Inlet/outlet port
Certification	UL & CE Certified
Optional Accessories For KF 40 port ( click the Picture to order )	Valve Bellow KF 40 adaptor
