Hydrogen Air MEA - 5 Layer

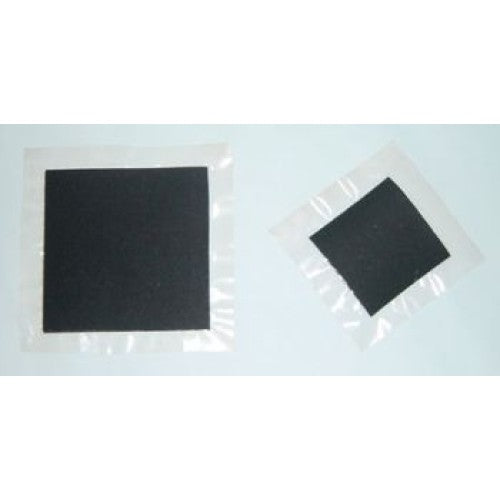

5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells.  One of the most economical and cost effective MEAs on the market

the standard configuration features a mid-range Platinum loading (0.5 mg/cm²) and a 0.002” membrane and a 410 microns thick woven carbon cloth GDL (others available).  Custom sizes and configurations are also available with no minimum order quantities and typical lead times of 1 to 5 business days

even for custom configurations. These Hydrogen Air MEAs are 5-Layer._x000D_ _x000D_ Active Area_x000D_ Membrane Area_x000D_ _x000D_ 2.2cm x 2.2cm_x000D_ 10.0cm x 10.0cm_x000D_ _x000D_ 5.0cm x 5.0cm_x000D_ 10.0cm x 10.0cm_x000D_ _x000D_ 7.1cm x 7.1cm_x000D_ 12.0cm x 12.0cm_x000D_ _x000D_ 10.0cm x 10.0cm_x000D_ 12.0cm x 12.0cm_x000D_ _x000D_ _x000D_ _x000D_
