MTI  |  SKU: SPG50K-35AB

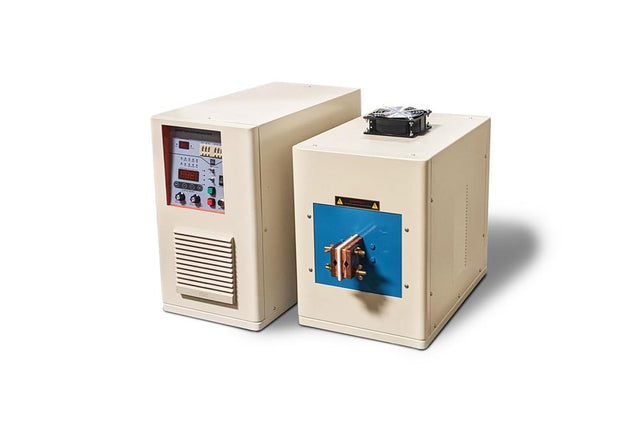

35 KW (30-80 KHz) Desktop Induction Heater w/ Timer Control - SPG50K-35AB

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

35 KW (30-80 KHz) Desktop Induction Heater w/ Timer Control - SPG50K-35AB

MTI

SPG-50K-35AB is a high-frequency induction heating system featuring advanced inverter technology for a lightweight and convenient design. This 35 kW induction heater is designed for materials research laboratories to rapidly melt and heat-treat metallic materials.

SPECIFICATIONS:

Power 480V, 415V, or 380V AC, three-phase, 50/60 Hz, 35 kW.
Output Frequency 30–80 kHz.
Maximum Input Power 35 kW.
Duty Cycle 100%.
Timer Control Selectable automatic timer control or manual operation.
Manual Control: Foot pedal.
Automatic Heating Time: 1–99 seconds.
Automatic Dwell Time: 1–99 seconds.
Automatic Cooling Time: 1–99 seconds.
Temperature Control (Optional) MTC-808 Programmable Temperature Controller.
30 programmable temperature segments.
Choice of different thermocouple types.
Water Cooling (Optional) Water cooling is required but not included.
Flow Rate: >10 L/min.
Water Pressure: ≥0.2 MPa (29 psi).
Water cooling inlet and outlet connections.
Water Temperature: 5–40°C.
Recommended Cooling Capacity: 10 kW.
Recommended Water Chiller: KJ6500.
Overpressure and over-temperature safety interlocks.
Induction Coil (Optional) Induction coils are available upon request.
Display Digital display showing output power and current.
Compliance NRTL or CSA certification is available upon request at an additional cost. Contact us for a quotation.
Product Dimension Heating Unit: 450 x 300 x 400 mm (L x W x H)
Control Unit: 530 x 260 x 450 mm (L x W x H)
Net Weight 55 kg

Application Notes

  • Melting
  • Sintering
  • Annealing
  • Heat Treatment
  • Quenching

STANDARD PACKAGE:

Item Description Qty
1 Induction Heater Control Unit 1
2 Induction Heating Unit 1
3 Power Supply Cable (plug not included) 1
4 Control Cable 1 set
5 Foot Pedal with Cable 1
6 Water Cooling Fitting and Clamp (pipe not included) 1 set
7 Fuses 4
8 Operation Manual 1
