7 KW (30-80Khz) Bench Top Induction Heater with Timer Control - SP-15AB
MTI
Overview

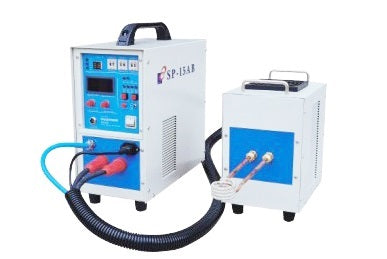

SP-15AB Dual Station Induction Heater is designed for a material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows the heating station and the control station to be located up to 2m from each other for operation safety.
Specifications
| Working Voltage | 208-240V AC, 50/60 Hz, Single Phase |
| Max. Input Current | 34 Amp (Min. 40A breaker required) Power cable included (It is suggested to use NEMA L6-50P twist-lock plug with 10AWG power cable) |
| Output Frequency | 30-80 kHz |
| Heating Current | 200-600 Amp |
| Max. Input Power | 7 KW |
| Duty Cycle | 80% |
| Max. Distance Between Heater and Controller | 2m |
| Max. Sample Weight | 1 kg |
| Control Panel | Automatic timer control or Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Cooling Time: 1-99 Seconds The digital display shows output power and current. |
| Cooling | Air Cooling: Rear Fan Water Cooling (water chiller required but not included): Temperature range: 5 - 30°C Water Flow Rate: 58 L/min Water Tank: 15 Liters made of stainless steel Note: It is recommended to use a specific coolant to get the best performance. It is normal to wait a couple of minutes for cooling down after several heating trials Note: The input voltage for the water chiller is 220V |
| Induction Coil & Accessories | Two coils are included: Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H) Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H) Foot Pedal with Cable and water connector are included |
| Temperature Controller (Options) | One temperature control port built-in at the back To control temperature by thermocouple, the MTC-808 temperature controller is available as an option The complete system SP7TC is also available |
| Compliance | NRTL or CSA certification is available upon request at extra cost, please contact us for a quote |
| Product Dimensions | Control Station: 18" x 8" x 17" Heating Station: 12" x 8" x 13" Net Weight: 25 kg (55 lbs) |
Application Notes
- Applications: Melting, Sintering, Annealing, Heat treatment, Quenching
- The heater will shut down if over output occurs. Please reduce coil cycle number to keep the heater operating under Max power
- Melting time and temperature are related to materials, the crucible, refractory insulation, etc.
- Metal samples may be melted in vacuum using a 60mm dia half-open quartz tube with a vacuum flange/valve. Please contact us for vacuum tube setup details.
- For induction heating in air or inside a glove box, please contact us for the design
Standard Package
| Item | Description | Qty |
| 1 | Heating Station | 1 |
| 2 | Control Station | 1 |
| 3 | Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H) | 1 |
| 4 | Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H) | 1 |
| 5 | Cable for connecting Heating Station and Control Station | 1 |
| 6 | Foot Pedal with Cable | 1 |
| 7 | Water Cooling Fitting and clamp (Pipe is not included) | 1 |
| 8 | Fuses | 4 |
