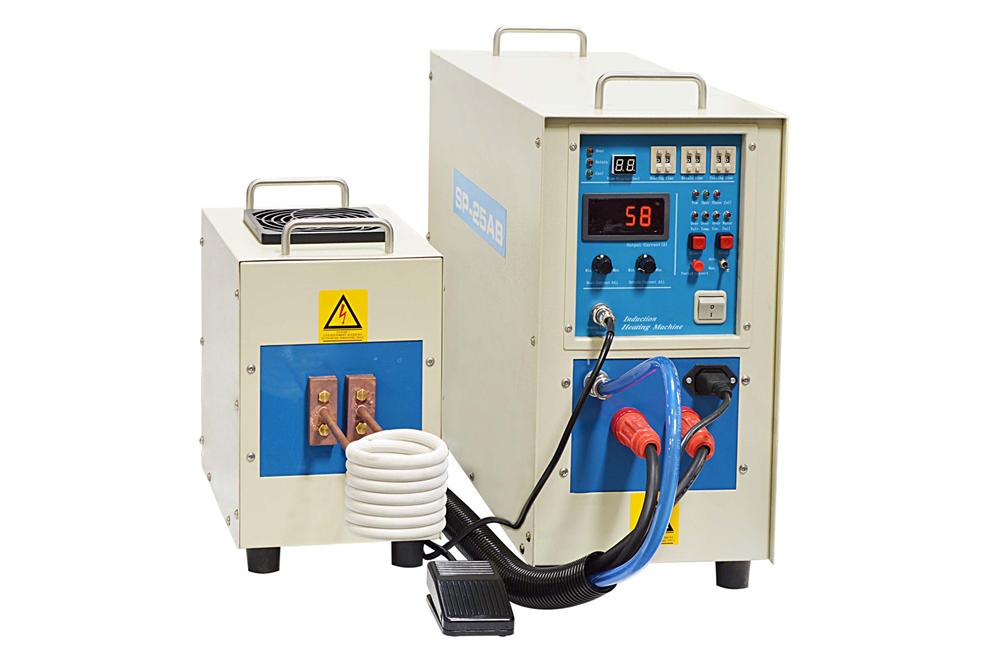

15 KVA (30-80KHz) Desktop Induction Heater w/ Timer Control - SP-25AB

SP-25AB is a high-frequency induction power supply. It is designed for the material research lab to quickly melt and perform heat treating to metallic materials up to 2kg.

Specifications

• Power
  • 208-240V AC, 50/60 Hz, three phases, 50 A
  • 400V or 480V, three Phases are available upon request
  • 15 kVA
  • Power cable is included without a plug.
• Output Frequency: 30-80 kHz
• Heating Current: 200-800 A
• Max. Input Power: 15 KVA
• Duty Cycle: 80%
• Max. Sample Weight: 2 kg
• Timer Control: Automatic timer control or Manual control selectable
  • Manual Control: by Foot Pedal
  • Automatic Heating Time: 1-99 Seconds
  • Automatic Dwell Time: 1-99 Seconds
  • Automatic Cooling Time: 1-99 Seconds
• Temperature Control (Optional)
  • Temperature control by thermocouple for this induction unit requires the MTC-808 temperature controller, sold separately.
  • The complete system SP7TC is also available.
• Water Cooling
  • Flowrate: >10 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, but using a recirculating water chiller is highly recommended. A recirculating water chiller is sold separately.
  • Protection: Overpressure and over-temperature switch
• Induction Coil
  • 2 pcs Induction Coil total
  • 82mm(OD) x 65mm(ID) x 65mm(H)
  • 82mm(OD) x 65mm(ID) x 80mm(H)
• Display: The digital display shows output power and current

Application Notes

• Melting
• Sintering
• Annealing
• Heat treatment
• Quenching
• Melting time and temperature are related to materials, the crucible, refractory insulation, etc.
• Induction heating in a glove box requires a custom coil design, available on request.

Standard Package

Product Dimensions

• 18"(L) x 8"(W) x 17"(H)
• Net Weight: 28 kg (62 lbs)
