MTI  |  SKU: VMCS-1700-HT-S

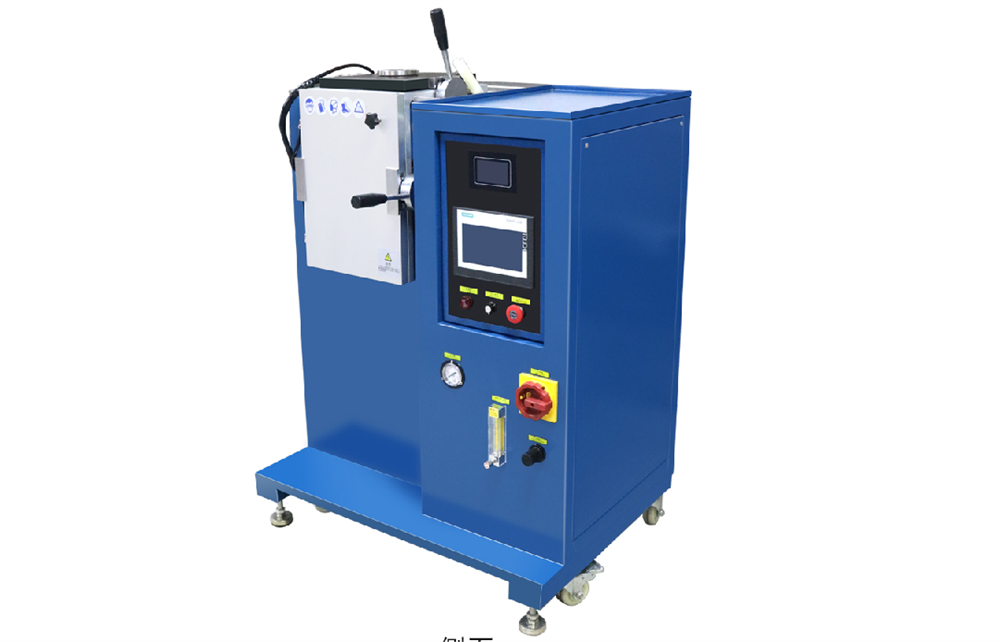

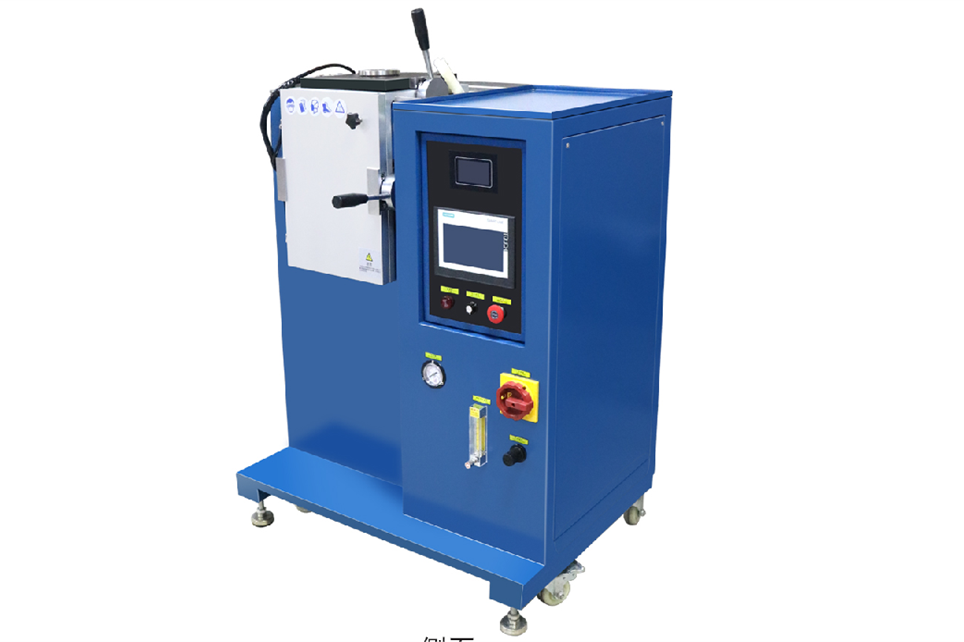

Small High-Throughput Induction Melting & Casting up to 32 Samples/Batch @ 1700ºC - VMCS-1700-HT-S

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Small High-Throughput Induction Melting & Casting up to 32 Samples/Batch @ 1700ºC - VMCS-1700-HT-S

MTI

VMCS-1700-HT-S is a small multi-sample induction melting and casting system with atmosphere control. It is designed for high-throughput research for the new generation of superalloys. 2–16 rectangular (or round) samples with different compositions can be melted and cast in a single batch within 25 minutes at temperatures up to 1700°C. The solidified rectangular samples have a smooth surface without sinkholes and can be used directly for deformation processing.

Specifications

Vacuum Chamber A large vacuum chamber made of stainless steel.
Vacuum Level: 10-2 torr with the included dual-stage mechanical pump, and 10-5 torr with an optional turbopump.
The vacuum chamber cover is driven by an air compressor (not included).
Melting is usually conducted under argon gas, while casting is performed under vacuum.
Induction Heater High-frequency induction heating is installed at the bottom of the vacuum chamber.
The induction coil is inserted into the bottom of the vacuum chamber to hold and heat the rectangular graphite crucible.
Power: 15 kW.
Frequency: Approximately 80 kHz.
Graphite Crucible A rectangular graphite crucible with a cover is placed on top of the induction heating plate.
Crucible Dimensions:
Outside: 150 × 55 × 45 mm.
Inside: 118 × 55 × 28 mm.
Multiple cavities can be built inside the crucible according to customer requirements.
Standard Cavity Configuration: 16 cavities measuring 10 mm (L) × 20 mm (W) × 10 mm (depth), allowing simultaneous melting of 16 different alloy compositions with melting points up to 1700°C. An alternative configuration supports 32 samples measuring 10 × 20 × 5 mm with 32 different compositions.
Total Melting Capacity: 1000 g (based on stainless steel).
The capacity of each cavity depends on the number of cavities. For 32 cavities, the maximum is 30 g per cavity.
Customized cavity configurations are available upon request.
Control Panel Built-in touchscreen control panel for temperature control and melting/casting operations.
Temperature is automatically regulated by a digital controller.
Maximum Working Temperature: 1700°C.
Thermocouple: Type B.
Melting and Casting Time: Approximately 20 minutes, depending on the melting point of the materials.
Water Cooling (Optional) A 116 L/min recirculating water chiller is required (not included).
KJ6300 recirculating water chillers are recommended: one for the induction coil and one for the bottom water-cooled plate supporting the crucible.
Water Pressure Interlock: The equipment cannot heat without sufficient water flow.
Power Requirements Input Voltage: 208–240V AC, three-phase, 50/60 Hz.
380V or 480V AC versions are available upon request.
Maximum Input Power: 15 kW (50A circuit breaker required).
Compliance CE Certified.
NRTL or CSA certification is available upon request.
Dimensions 930mm(L) x 750mm(W) x 1300mm(H)
Net Weight 255 kg
