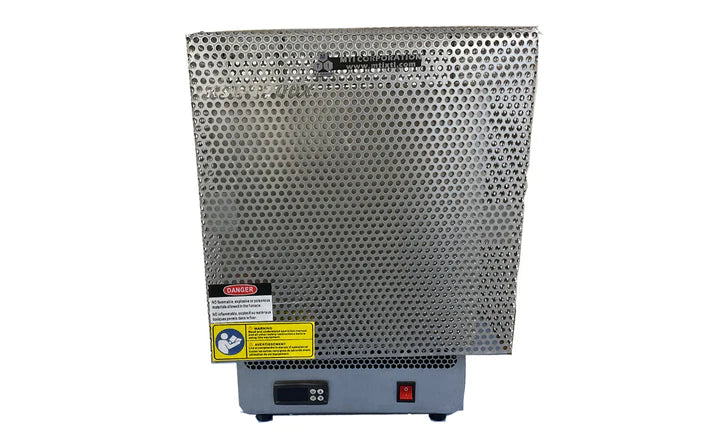

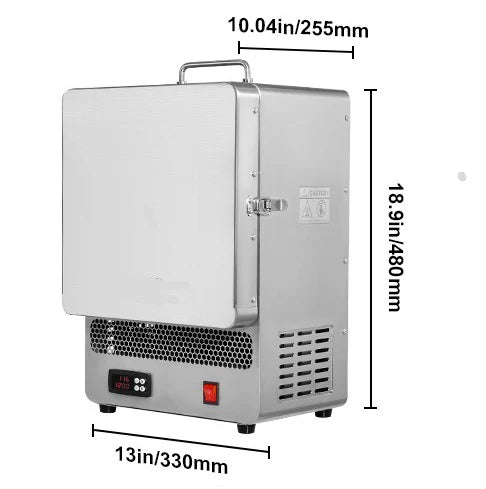

1050°C Economic Box Furnace (6" x 6" x 5", 3 liter, 110V) with Programmable Controller- KSL1200XJS

KSL-1200X-JS is a cost-effective box furnace with a maximum heating temperature of 1150°C. It offers rapid heating with approximately 25°C/min heating rate. The furnace is equipped with a digital PID controller for temperature control, monitoring and adjustment.

This furnace isn't available for UL certification.

SPECIFICATIONS:

Structure	High-purity alumina fiber insulation around the heating chamber as insulation layer under the heating chamber, heat dissipation vents are equipped to rapid heat dissipate  internal heat dissipation port is equipped on the top of the furnace SS 201 outside protective case

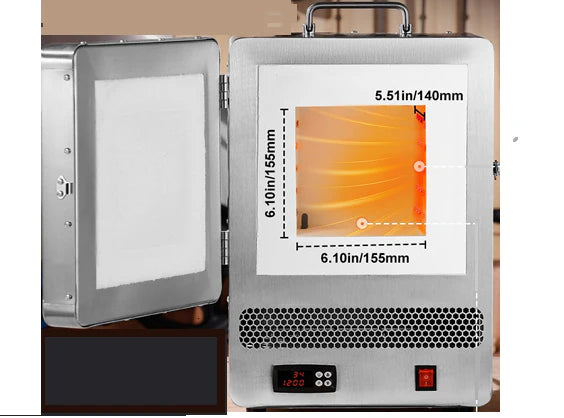

Chamber Dimensions	155mm x 130mm x 158mm (L x W x H) Capacity: 3.3 Liter Heating element: Ni-Cr-Al resistance wire
Power	Working Voltage: 110 - 120VAC, Single Phase, 50/60 Hz Output Power: 1500 W, (15A breaker required) Power cable with NEMA 5-15 plug
Operating Temp Range	Max Heating Temperature: 1150°C < 30 minutes Working Temperature: 0-1100°C < 2 hours Total working time < 3 hrs
Stability at 1000 °C	± 3.0 °C
Heating Rate	< 25°C/ min
Thermocouple	4" K type
Temperature Controller	A single-point digital temperature controller Proportional–integral–derivative control (PID control) ± 1 ºC resolution
