1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top)) with Flange -KSL-1500X-M-H

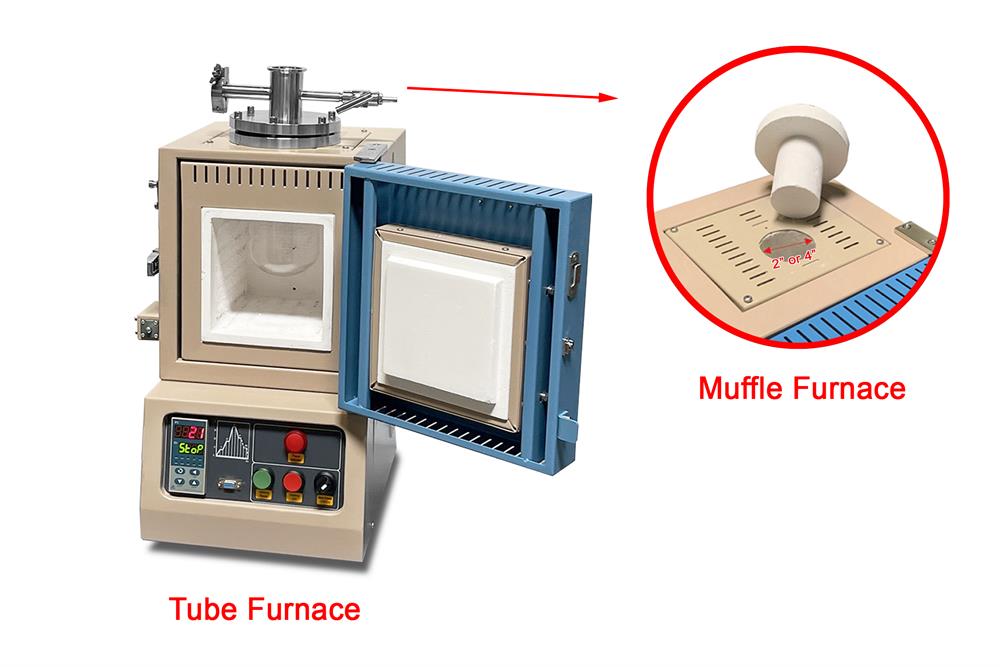

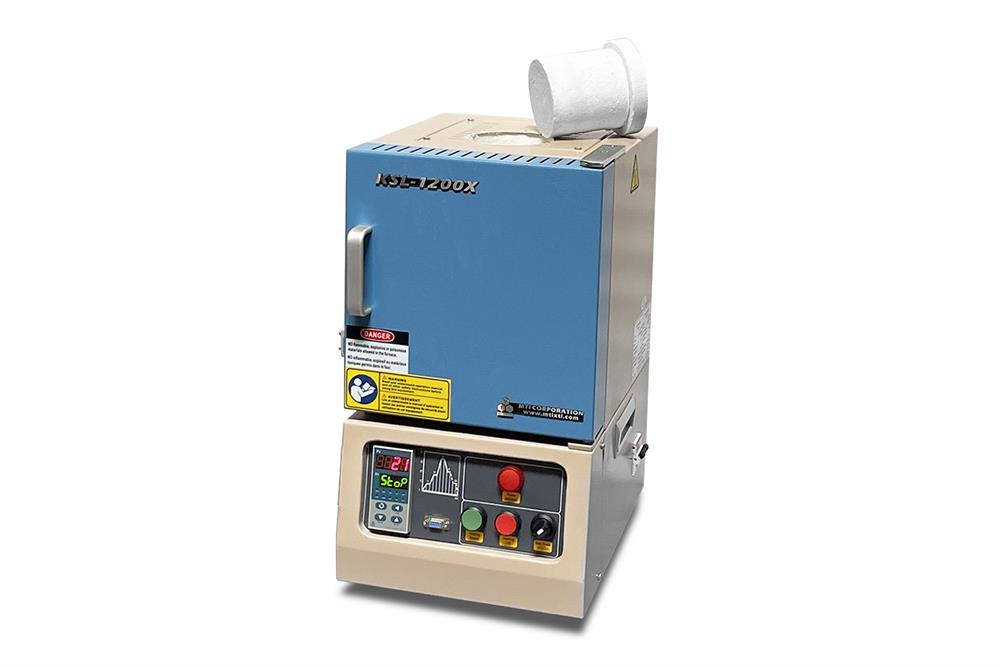

KSL-1500X-M-H is a hybrid Muffle/Tube Furnace with 1500 Max working temperature.  It has a heating chamber of  6"x6"x6" as a box furnace and a 2” OD mullite tube with a flange that can be inserted from the top as a vacuum tube furnace.   It is 2 in 1 cost-effective solution for material processing.

SPECIFICATIONS:

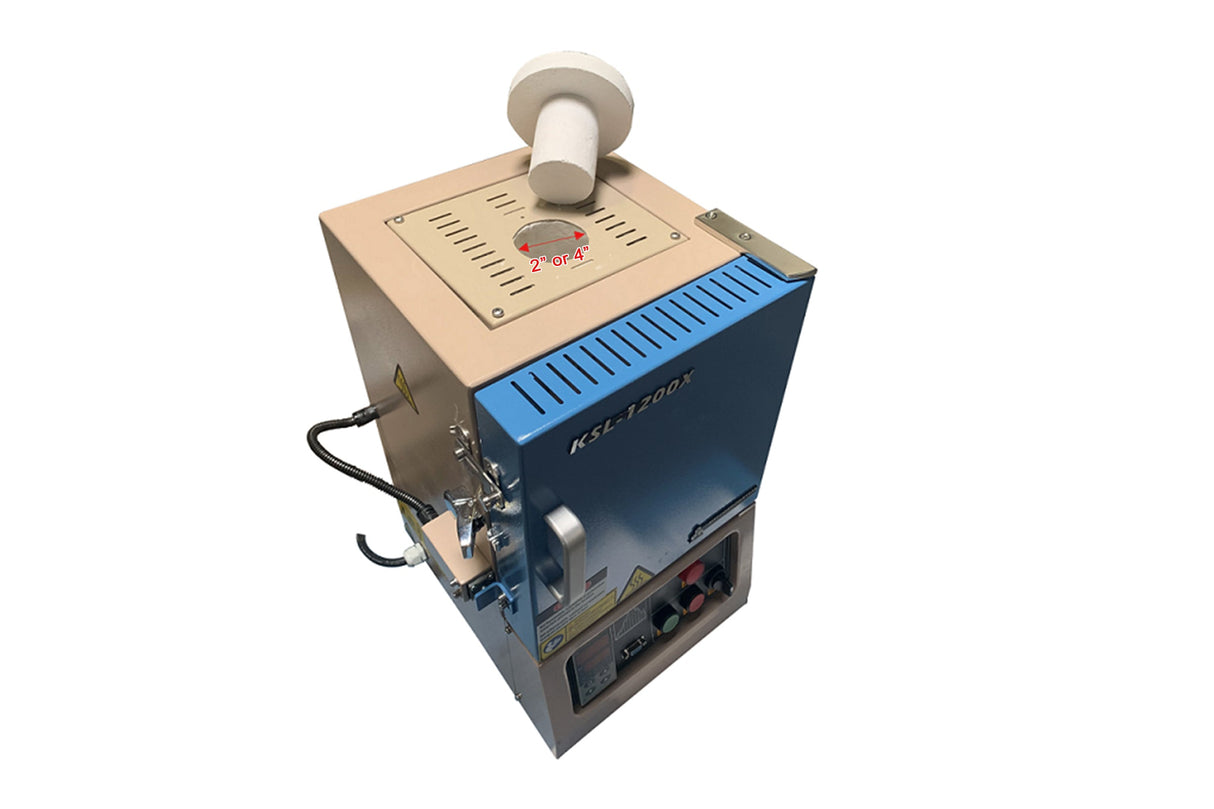

Structure	High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.  Doble layer steel case with forced-air cooling to ensure lower safer surface temperature. One 2"Dia. The hole is opened from the top of the chamber with a thermal insulation block When used as a tube furnace, a 2" mullite tube with a flange will be inserted into the heating chamber.
Power	AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required) 4.0 KW Note Power cable included but without the plug. Please install a plug on your own or click the picture  left to choose a plug according to your country or your lab requirement
Heating Chamber	Dimensions: 150mm(D) x 155mm(W) x 150mm(H),   ( 6"x6"x6") Capacity 3.6 Liter  Working Temperature: 300-1500 °C continuously.  ( 1300 max if used in a vacuum as tube furnace ) Heating rate:   Max   20°C/ min. Temperature Stability: +/- 1.0 °C S type hermocouple with Ceramic Sheath

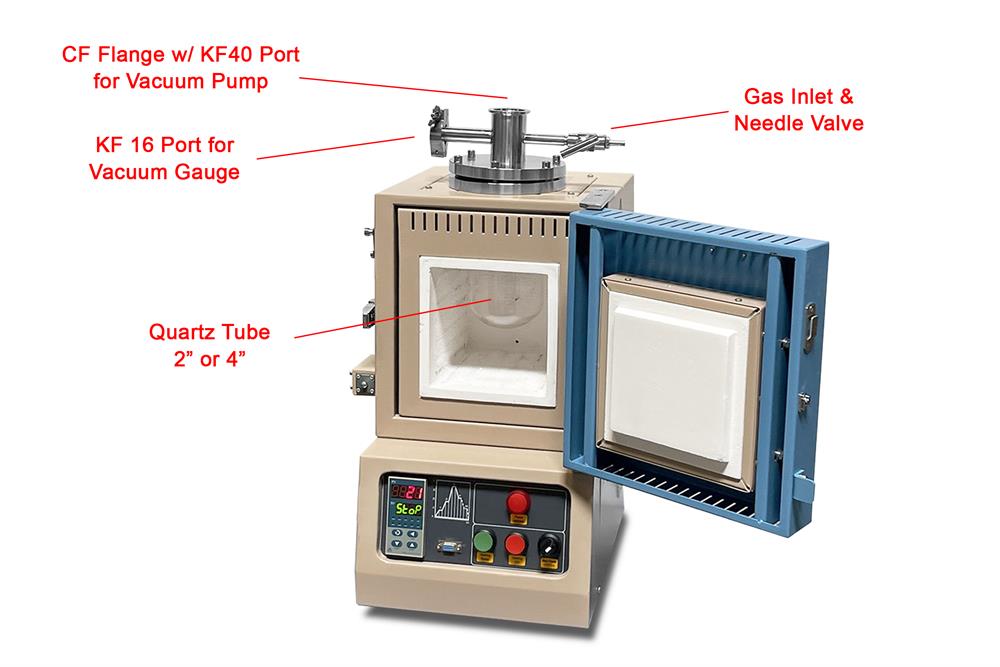

processing	One mullite tube ( one end closed) is included with a dimension of  2'' O.Dx1.75''I.Dx12''L. One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge KF16 port is included for connecting a digital vacuum gauge (gauge is not included) 1/4" barbed fitting gas inlet and needle valve are included for connecting the gas tank Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump
Optional for Vacuum	You may need to order a vacuum valve (Pic. 1), the vacuum gauge (Pic. 2), bellow (Pic.3), or a Multi-gas fitting flange (Pic. 4 showing an example of 80mm) and  a complete system of  turbopump  (Pic. 5) as  below:               Pic. 1     Pic. 2       Pic. 3Pic. 4Pic. 5
Temperature Controller	The digital temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port
Temperature controller (optional)	MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.    Eurotherm temperature controller with +/- 0.1oC accuracy is available at the extra cost
Net Weight & Size	150 lbs  &   500 x 480 x 700 mm
Shipping Weight	380 Lbs
Shipping Dimension	45" x 40"x 48"
Warranty	One-year limited warranty with lifetime support.   ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
Operation Video
