1200°C Hybrid Muffle (6" x 6" x 7") and Tube Furnace (2" or 4" OD) - KSL-1200X-J-H

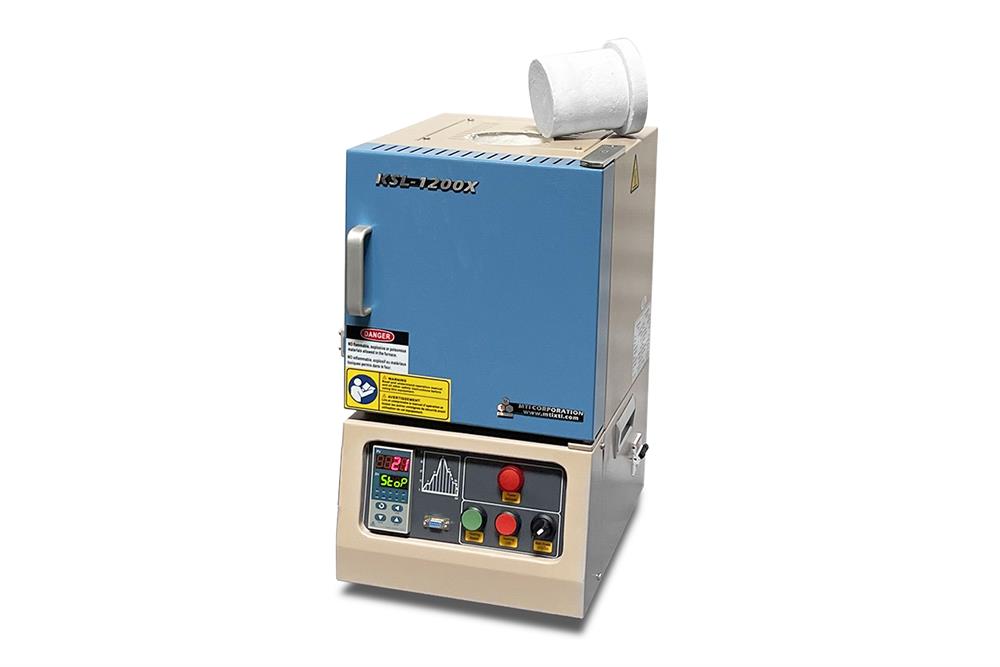

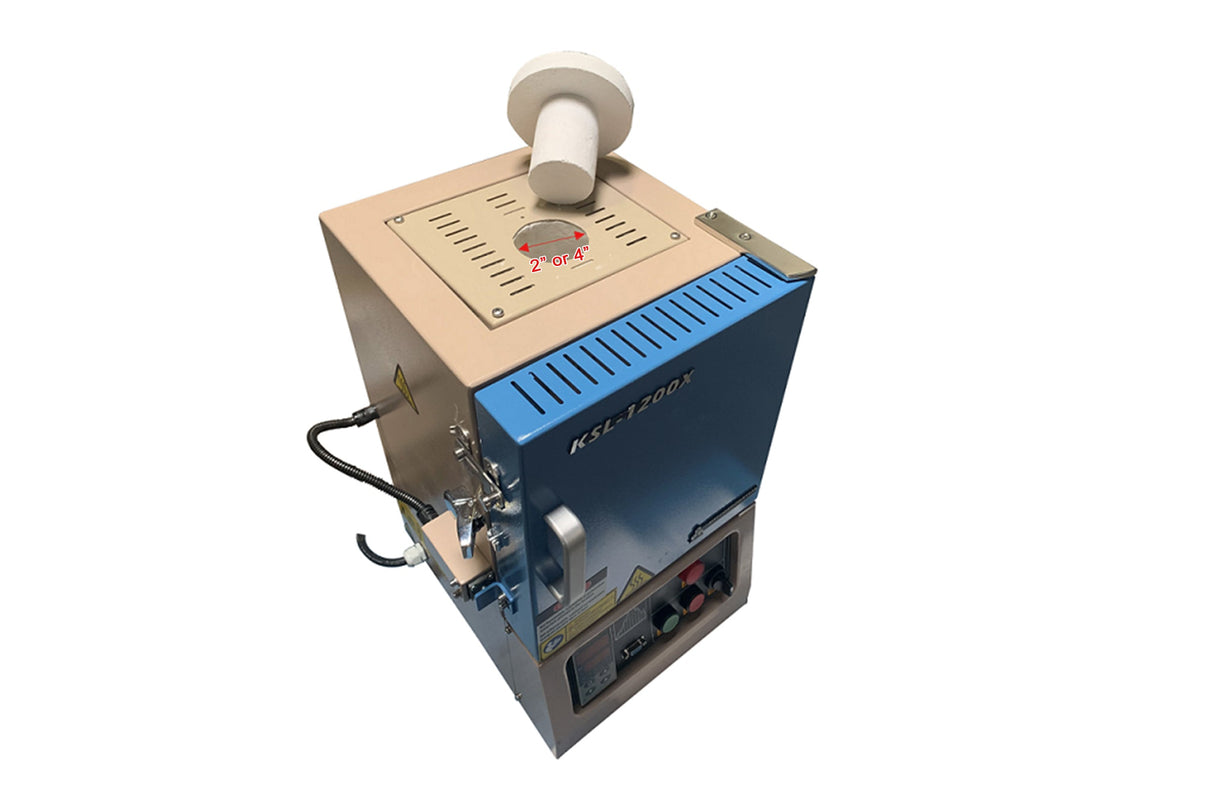

KSL-1200X-J-H is a hybrid Muffle/Tube Furnace with 1200 Max working temperature. It has a heating chamber of 6"x6"x7" as a box furnace and a 2” or 4" OD quartz tube with a flange can be inserted from the top as a vacuum tube furnace. It is 2 in 1 cost-effective solution for material processing.

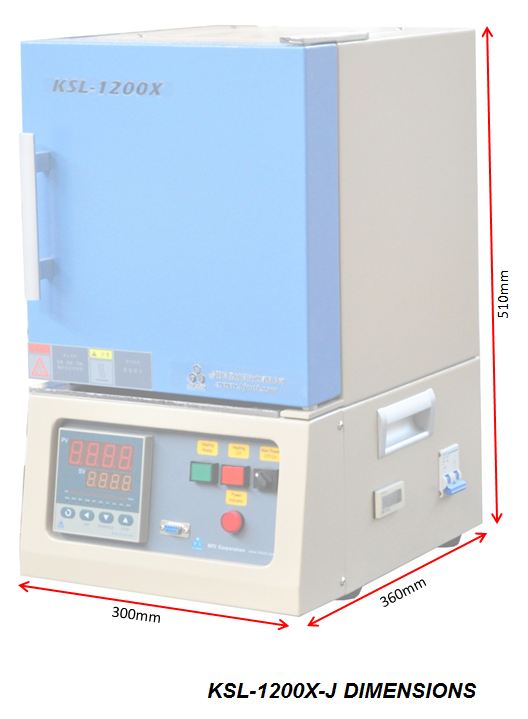

SPECIFICATIONS:

Structure	High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.  Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.  Doble layer steel case with forced-air cooling to ensure lower safer surface temperature. One 2" or 4" Dia. hole is opened from the top of the chamber with a thermal insulation block When used as a tube furnace, a quartz tube with a flange will be inserted into the heating chamber.
Heating Chamber	Dimensions: 150mm(D) x 155mm(W) x 180mm(H), ( 6"x6"x7") Capacity 4.2 Liter or 0.44 cubic ft Working Temperature: 100-1200 °C continuously in the air or inert gas. ( 1000 max if used in vacuum ) Heating rate: 30°C/ min. Temperature Stability: +/- 1.0 °C K types thermocouple with Ceramic Sheath

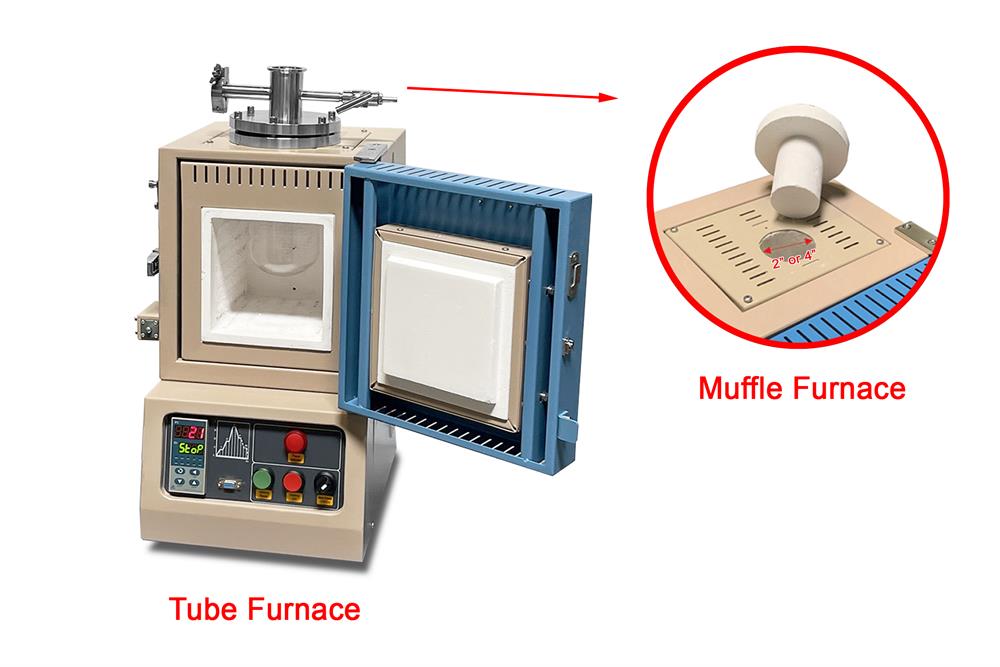

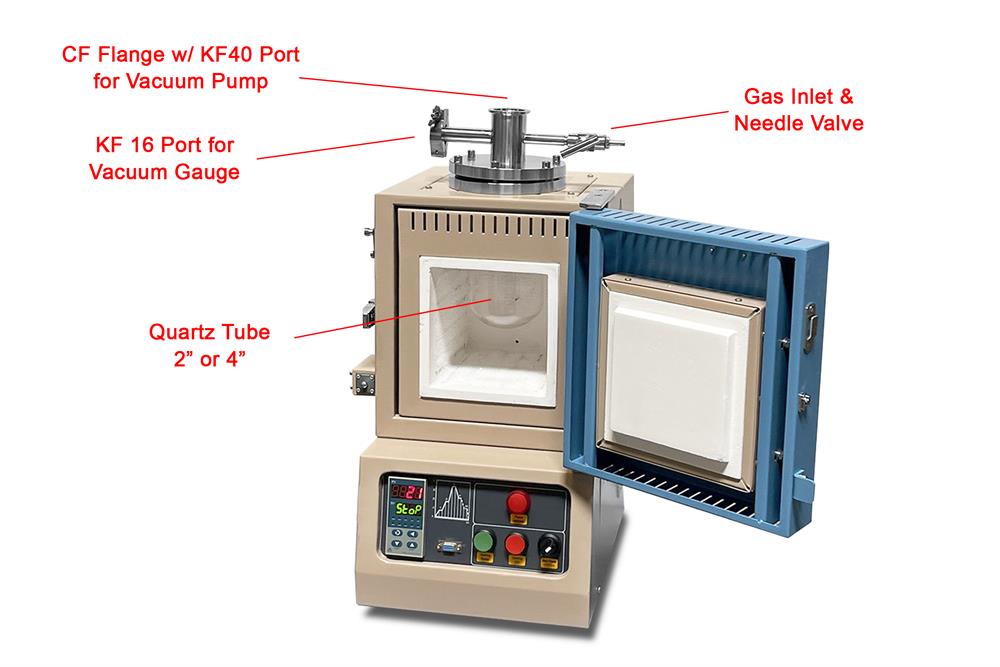

Processing Tubes  (2" tube & CF flange)  (4" tube & CF flange) (3.1" tube & KF flange)  Tube Installation	A 2" or 4" quartz tube with a flange can be inserted into the heating chamber to treat the sample under a high vacuum or controlled atmosphere. Please choose from the product options bar. 2” tube size: 50 OD x 44 ID x 263 L (mm) 4“ tube size: 100 OD x 94 ID x 210 L (mm) 3.1" tube size: 80 OD x 73 ID x 300L (mm ) is available with KF flange. Quartz thermal block is included for each tube CF type flange with KF40 port is built-in, which can reach vacuum level 10^-6 torr via a turbopump KF16 port is included for connecting a digital vacuum gauge (gauge is not included) 1/4" barbed fitting gas inlet and needle valve are included for connecting the gas tank  You may need to order a vacuum valve (Pic. 1), the vacuum gauge (Pic. 2), bellow (Pic.3), or Multi-gas fitting flange (Pic. 4 showing an example of 80mm) and a complete system of turbopump (Pic. 5) as below: Pic. 1 Pic. 2 Pic. 3Pic. 4Pic. 5
Temperature Controller	The digital temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port
Three-Electrode Configuration (Optional)	4" quartz tube, 100 OD x 94 ID x 210 L (mm) Three copper electrodes (Ø2.38) with copper connectors for any type of electrode, up to 55A DN16KF port as gas outlet or vacuum.  1/4" compression tube fittings Max. vacuum: 10-2 torr by a mechanical pump or 10-5 by a turbo pump Max. pressure: 3 psig One alumina thermal block.
Temperature controller (optional)	MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.  Eurotherm temperature controller with +/- 0.1oC accuracy is available at the extra cost
Power	Voltage: 208 -240V Single Phase 50/60 Hz 2.5KW ( not suitable for running at 110V ) Note Power cable is included but without a plug. The plug would have to be installed by the customer or click the link below the picture to choose a plug according to your country or your lab requirement
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
Application Notes	For a longer service life of the furnace, we recommend to not exceeding the heating rate of 10°C/min. The cooling rate should not exceed 10 °C /min either. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with the alumina coating  The heating module is easy to replace. Click pic left to order spare the Heating module for replacement If firing material releases vapor or smoke, please place the furnace into a fume hood.
