Programmable Planetary Ball Mill w/ Control Unit (4x100ml jar , Ar Gas Compatible) - MSK-SFM-GB

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Programmable Planetary Ball Mill w/ Control Unit (4x100ml jar , Ar Gas Compatible) - MSK-SFM-GB

MTI

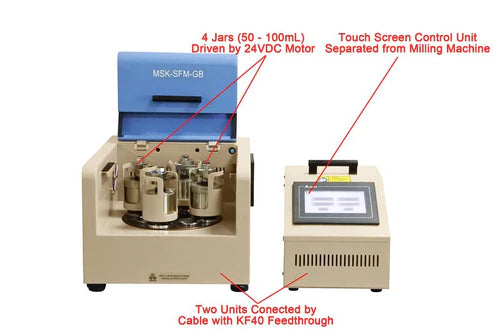

MSK-SFM-GB is a compact planetary ball mill with a separate control unit, which is designed to use inside the glovebox. The ball mill with four jars driven by a 24VDC motor can be located inside the Ar gas-filled glovebox and the control unit with a color touch screen is located outside the glove box via KF40 feedthrough. Four milling jars are optional from 50ml to 100 ml and can mill 4 kinds of material in the same time. It excellent ball mill for preparing air-sensitive or N2-sensitive powders.  High-throughput milling jars is available as option, which can mill 14 types of samples ( 10 ml max /each ) per batch.


SPECIFICATIONS

Features
  • The compact design separated the control unit from ball milling machine for easy use in a standard glove box.
  • 24VDC motor-driven four-milling jars are compatible with the Ar gas environment.
  • Large touch screen controller allows easy programming for multi-step speed-up/down milling/grinding, rotating direction, timing control, and cycling
  • Efficient grinding benefits from the high centrifugal force and pulverization energy
  • Suitable for mechanical alloying, mixing, homogenizing, pulverizing




Working Voltage
  • 208 - 240V AC (single-phase), 50/60 Hz
  • 220V AC Power plug is not included.
  • For operation under 110V, please use > 1000W transformer
  • 24VDC motor
Output Power
  • 120W
Speed &
Centrifugal acceleration		 Speed adjustable by tuning the frequency output to the AC motor (principle)
  • Revolution: 200-1000 RPM Centrifugal acceleration: 16.4 g
  • Mixing tank self-rotation: 100~900 RPM Centrifugal acceleration: 20.3 g
  • Total Centrifugal acceleration 36.7 g
Speed Ratio Revolution:Self-rotation = 1:2
Touch Screen Control
  • Digital display and inputs for speed and time
  • Up to 10 recipes can be stored
  • Max. 5 segments speed control per recipe, up to 10 Cycles
  • Rotation direction selectable, clockwise-anticlockwise
Material Feed Size Crispy materials< 10mm (Others<3mm)
Material Output Size
  • Wet Milling < 1um average
  • Dry milling < 20um average
Note: The output granularity is dependent on the material physical properties such as size, milling media, and processing time. Minimum granularity can be as small as 0.1 um according to the customer's feedback.


Milling Jars

100ml SS Jar (included)

SS Milling Balls( Included)

80ml YSZ jar

100ml WC Jar

4 cavities jar
Noise Level 55~70 decibels
Holding Fixtures
  • Four sets of holding fixtures are included.
  • Easy to tight for max. jar securing. Can hold jars with height up to 80mm
Compliance
  • CE Certified
  • NRTL or CSA certification is available at an extra cost
Application Notes
  • SS304 mixing jar is suitable for grinding various metal materials
  • For milling oxide material, please choose alumina / Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.
  • Must place 4 or 2 jars in symmetrical with similar weights in the ball mill to keep balance during rotation. If using one jar, another jar with the same weight must be put to the symmetrical position for counterweight. Otherwise, unbalance rotation may damage the machine, especially in the one-jar situation.
  • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product
  • Please click underline to learn Centrifugal Force calculation.
