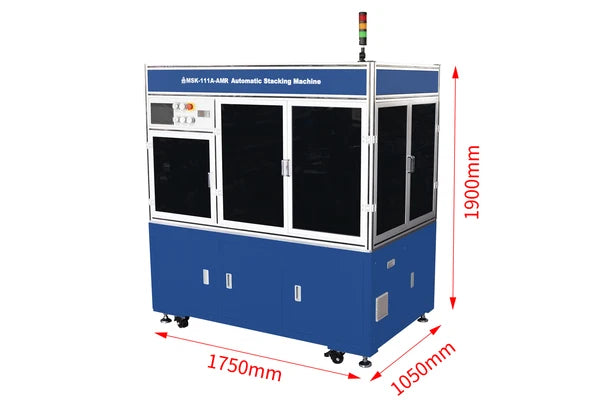

Automatic Stacking Machine with Functions of Taping and Cell Collection for Pouch and Prismatic Cells up to 160x100 mm - MSK-111A-ARM

MSK-111A-ARM is a fully automatic stacking machine for prismatic and pouch cells with advanced features to ensure stable, repeatable, and precise electrode stacking. The functions of automatic taping and cell collection are also available. Utilizing the "Z" fashion stacking technique, alternating layers of anode and cathode electrodes are interleaved with separator films.

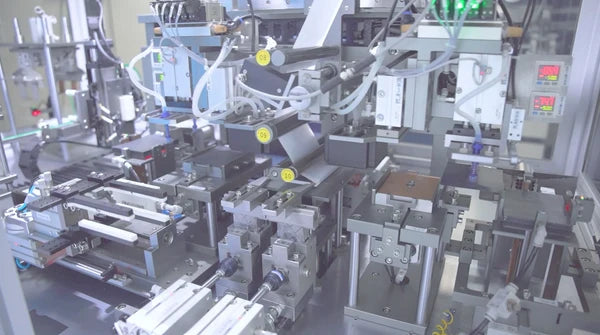

The layout inside the automatic stacker MSK-111A-ARM is shown below:

SPECIFICATIONS:

Features	Consistent tension controls for separator film delivery "Z" fashion stacking with a separation via a foot-switch Manually slidable fixtures enable accurate positioning and compactness of electrodes Unreeling rotors for separator film feeding adjusting fixture position Various sizes of the electrode are acceptable Automatic counting & zeroing for the numbers of the stack
Working Voltage	Single Phase, AC220V±10%, 50/60Hz
Power	5000W
Stacking Electrode Size	Length: 50 ~ 160 mm Width: 40 ~ 100mm (tab direction) Thickness: Max. 20 mm  The standard stacking die size L56mm *W43 mm (cathode) and L58 mm*W45mm (anode) is included. Other customized sizes can be provided upon request.
Max. Electrode Thickness	Piled up thickness 2~30mm
Aligning Accuracy	±0.3 mm for stacked electrodes
Stacking Speed	About 3 sec/layer
Acceptable Separator Roll Size	400mm O.D Max.
Core of Separator Roll	3-inch core, mechanical clamping
Acceptable Tape Roll Size	150mm O.D Max. (3" core, width: 10 mm)
Cutting Blade	L170 mm, Max. heating temperature: 220℃
Suggested Air Pressure	0.6 - 1.0 MPa (Air compressor is not included in the standard package. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. pic1  pic2
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost
