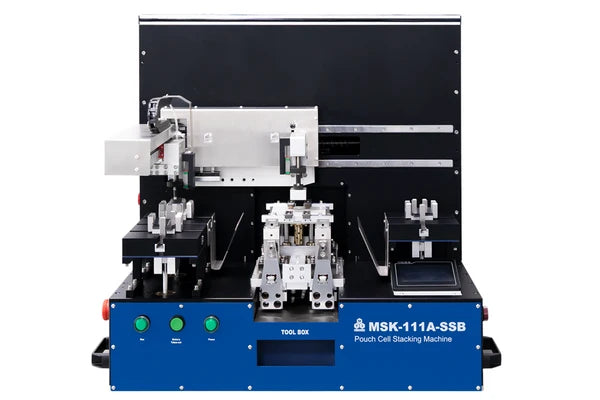

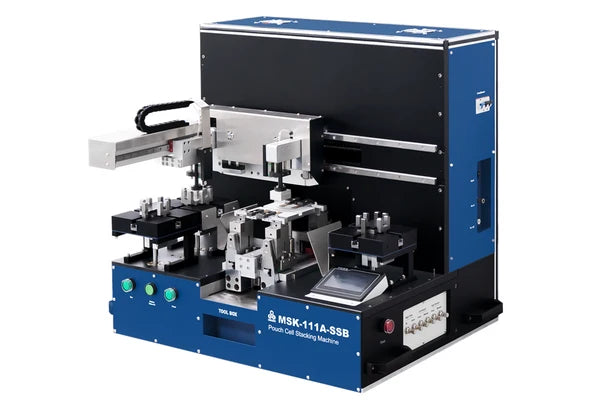

Pouch Cell Stacking Machine for Solid State Battery up to 100L x 90 W (mm) - MSK-111A-SSB

MTI

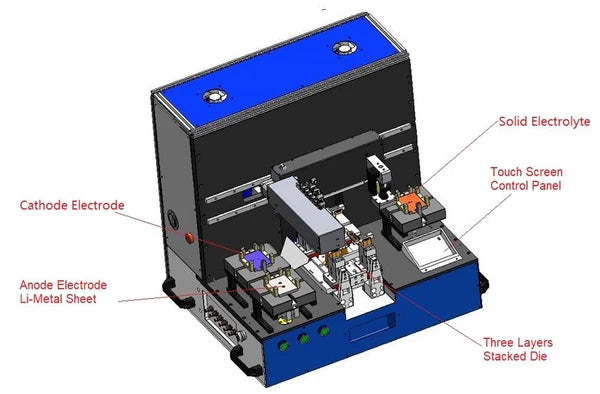

MSK-111A-PES is a benchtop high-precision automatic stacking machine with hybrid stacking modes (regular Z-type separator stacking for liquid cell and piece-by-piece sequence stacking for solid cell). The stacking machine is compatible with a standard glovebox that is filled with Argon gas to ensure no air/humidity exposure during pouch cell electrode stacking.

  • Advanced Features:
    • Compatible with stacking for both regular electrodes and pure Lithium anode electrodes in the Ar glove box or dry room.
    • Hybrid stacking modes of regular Z-type stacking and piece-by-piece sequence stacking for solid-state battery application.
    • PLC Touch Screen Control allows easy control
    • Auto electrode pick-up & stacking via vacuum manipulators
    • Auto separator cutting and feeding for each battery.
    • Adjustable mechanical electrode fixture for accurate electrode positioning
    • Auto-tension-controlled rotor for separator feeding
    • One set of 80x50mm stocking die fixtures is included for immediate use.

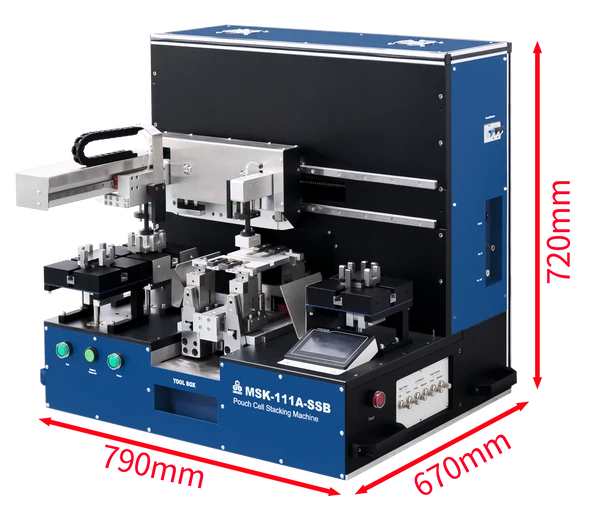

SPECIFICATIONS:

Working Voltage
  • AC220V 50/60Hz
  • AC 110V version is available upon request
Power
  • 400 W
Stackable Size of the electrode
  • Standard stacking electrode size: 62 mm Length x 46 Width (Current Corrector Not Included)
  • Electrode length: 40-100 mm, electrode width: 40-90 mm
Stacking modes
  • Z-type stacking: polymer roll as a separator for liquid-type lithium-ion battery.
  • Step-by-Step sequence stacking: Solid-state electrolyte with a plate shape as a separator.
Stackable Layers
  • Up to 100 layers
Stacking Speed
  • 4 - 6 seconds/layer
Max. Electrode Thickness
  • Piled-up thickness < 20 mm
Max Current Corrector Length
  • Max. 15 mm
Aligning Accuracy
  • ±0.3 mm for stacked electrodes
Acceptable Separator Size
Polymer Roll:
  • I.D>3'' (76mm), O.D<9.8'' (250mm)
  • Please choose the corresponding separator size according to the electrode size
  • A roll of separator with a width of 60 mm will be provided for an experimental trial
Solid-state electrolyte plate as separator:
60 * 40mm
Stacking Fixture
  • One set of 62 x 46 mm stacking die fixtures is included for immediate use.
  • If you need a different size electrode stacking, please inform us before ordering. We will make it for you at an extra cost. Allowable customization size: Max. 110mm x 100mm; Min. 40 mm x 30 mm; Each size cell needs one mold.
Operation in Glove Box
  • The Pouch Cell Stacking Machine can be operated in the glove box in either N2 or Ar gas

Vacuum Pump
  • An oil-free vacuum pump (28 L/min, 140W) is built into enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure
  • 0.5 - 0.8 MPa (Air compressor is not included in the standard package. )
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Pic 1 MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - EQ-ACPHD-3-LDPic 2
Transparent Cover
  • The transparent cover is optional at an extra cost for the NRTL Certificate
Compliance
  • CE Certified
  • NRTL certificate is available upon request at an extra cost
Application Notes
  • This machine can be put in a glovebox and operated in Ar gas.
  • For the Lithium-sulfur research, please send the request for the special technique to do the pure lithium foil stacking.
  • MTI Supplies offers ready-to-use Cathode & Anode Electrodes and Laminated Aluminum Pouch for your research. Please click the picture below for product details.
  • MTI Supplies Nylon-made Splitable Pouch Cell Casing for Battery R&D. Please click the picture below for more details.
