Semi-Auto Large Stacking Machine for Prismatic and Pouch Cells - MSK-111A-AL

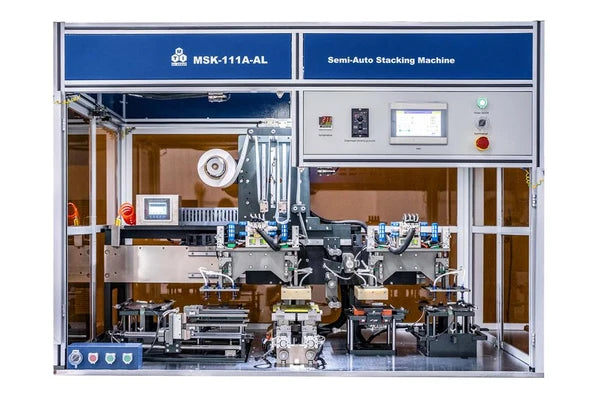

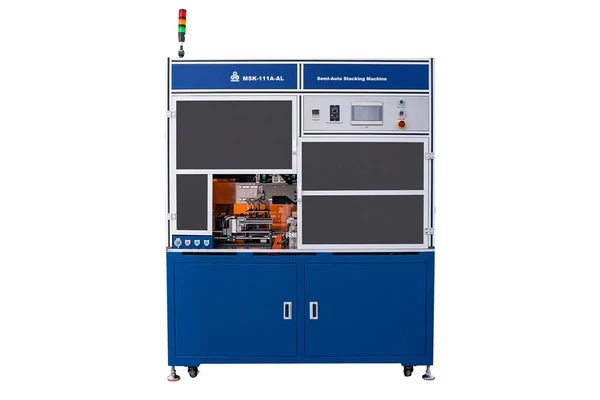

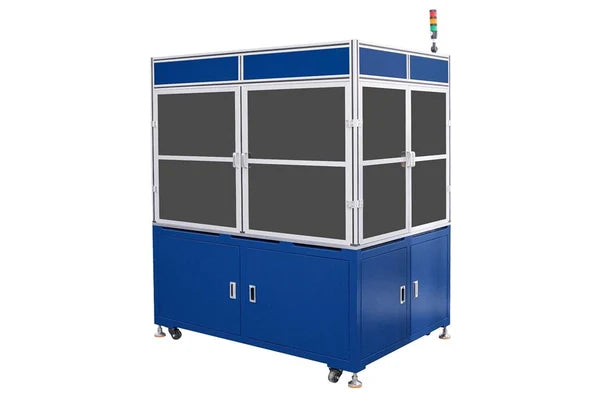

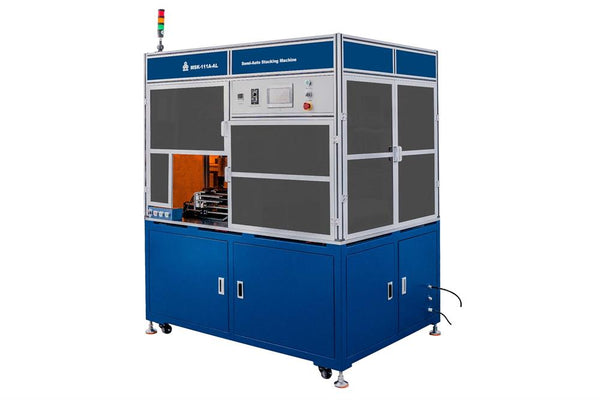

MSK-111A-AL is a desktop semi-auto stacking machine for prismatic and pouch cells with advanced features to ensure stable, repeatable, and precise electrode stacking. Utilizing the "Z" fashion stacking technique, alternating layers of anode and cathode electrodes are interleaved with separator films.

SPECIFICATIONS:

Features	Consistent tension controls for separator film delivery "Z" fashion stacking with a separation via a foot-switch Manually slidable fixtures enable accurate positioning and compactness of electrodes Unreeling rotors for separator film feeding adjusting fixture position Various sizes of the electrode are acceptable Automatic counting & zeroing for the numbers of the stack
Working Voltage	Single Phase, AC220V 50Hz
Power	2000W
Stacking Electrode Size	Length: 80 ~ 200mm Width: 70 ~ 150mm
Max. Electrode Thickness	Piled up thickness 2~30mm
Aligning Accuracy	±0.2 mm for stacked electrodes
Acceptable Separator Roll Size	340mm O.D Max.
Core of Separator Roll	3-inch core, mechanical clamping
Suggested Air Pressure	0.6 - 1.0 MPa  (Air compressor is not included in the standard package. ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.             pic1          pic2
Product Dimensions	1700mm(L) x 1200mm(W) x 2120mm(H)
Net Weight	900Kg
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost
Warranty	One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
