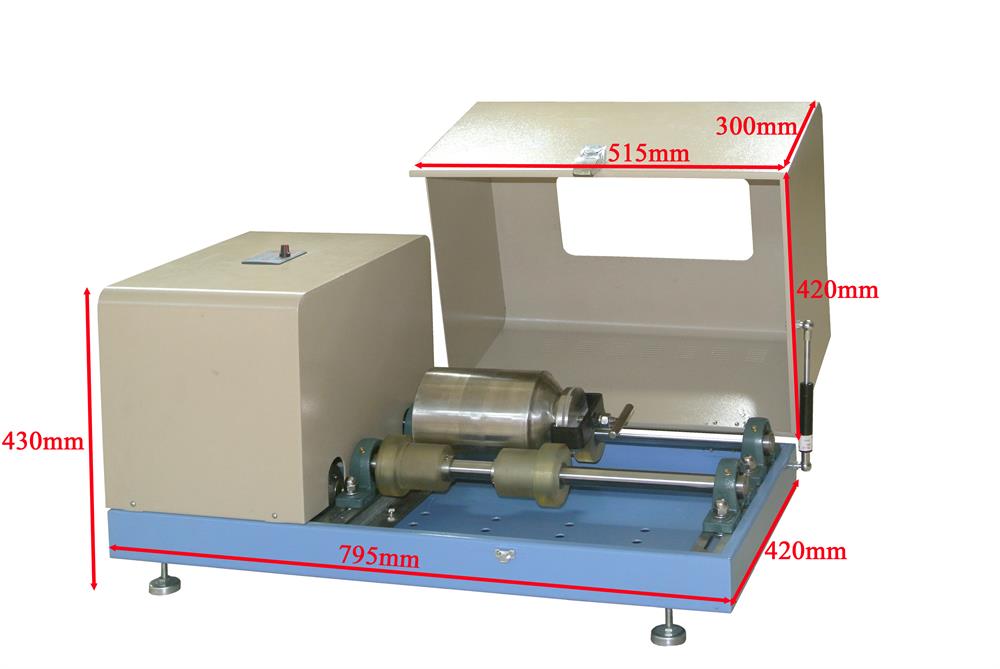

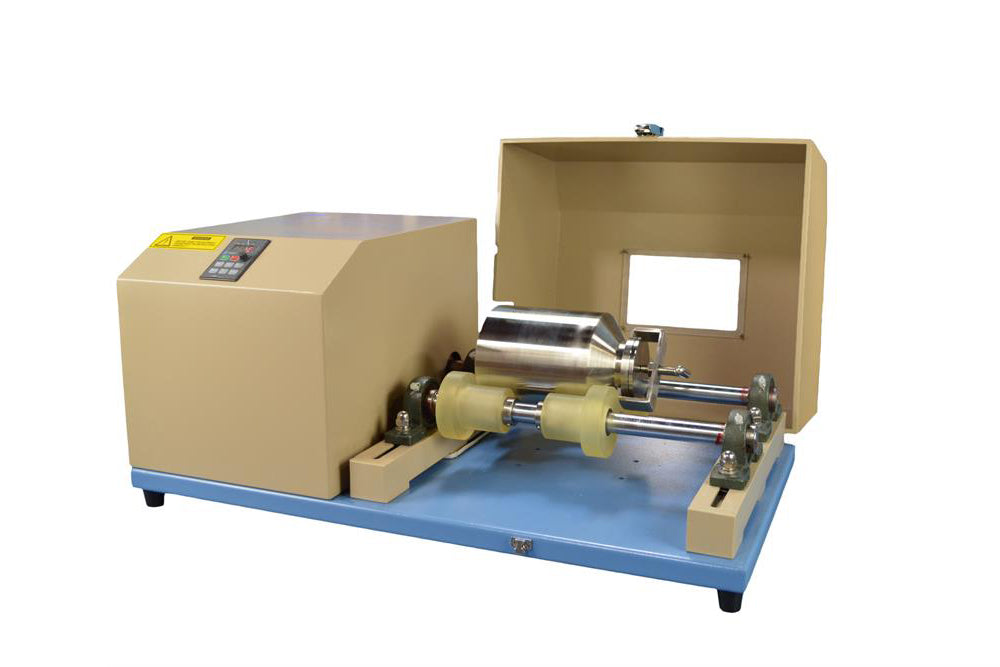

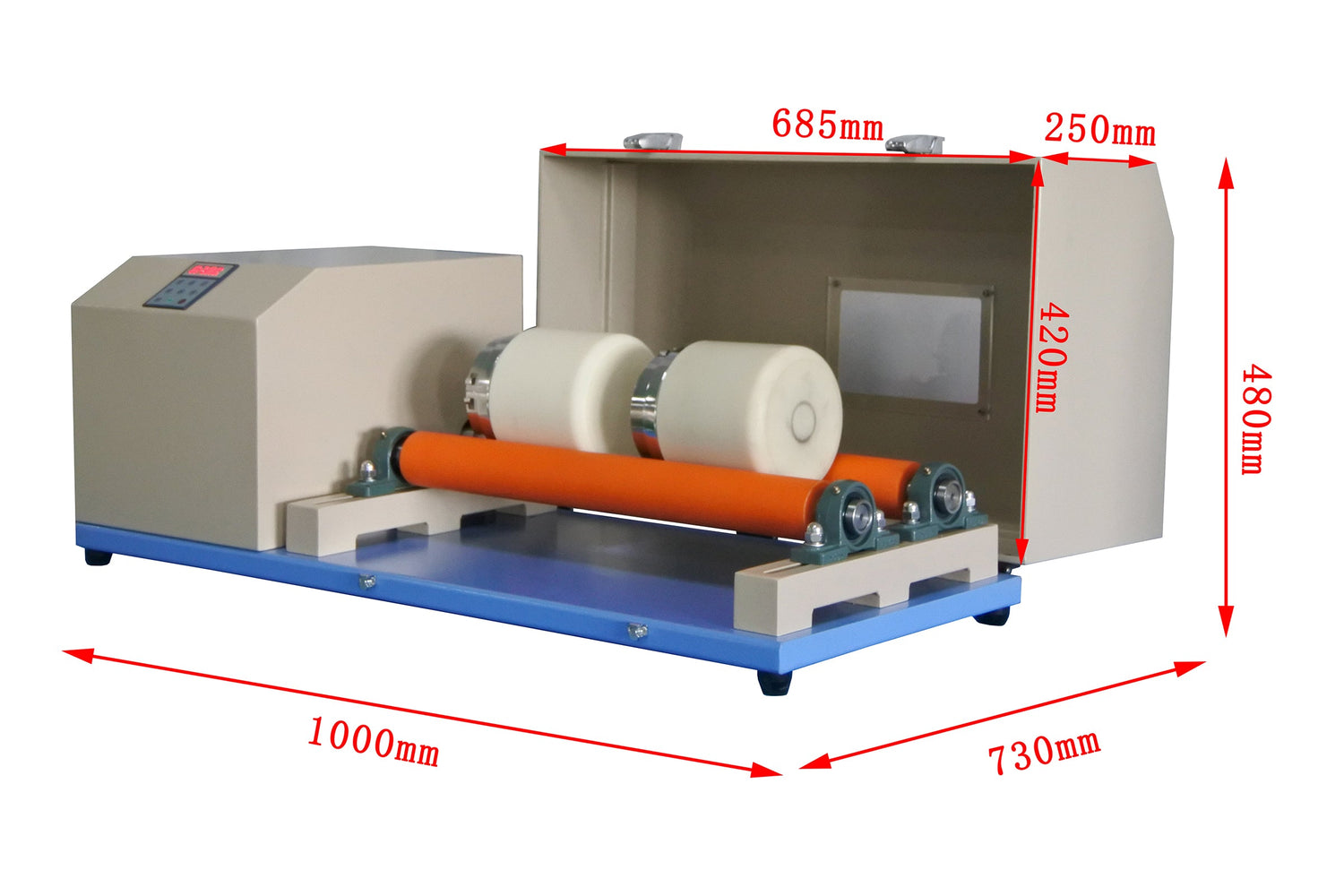

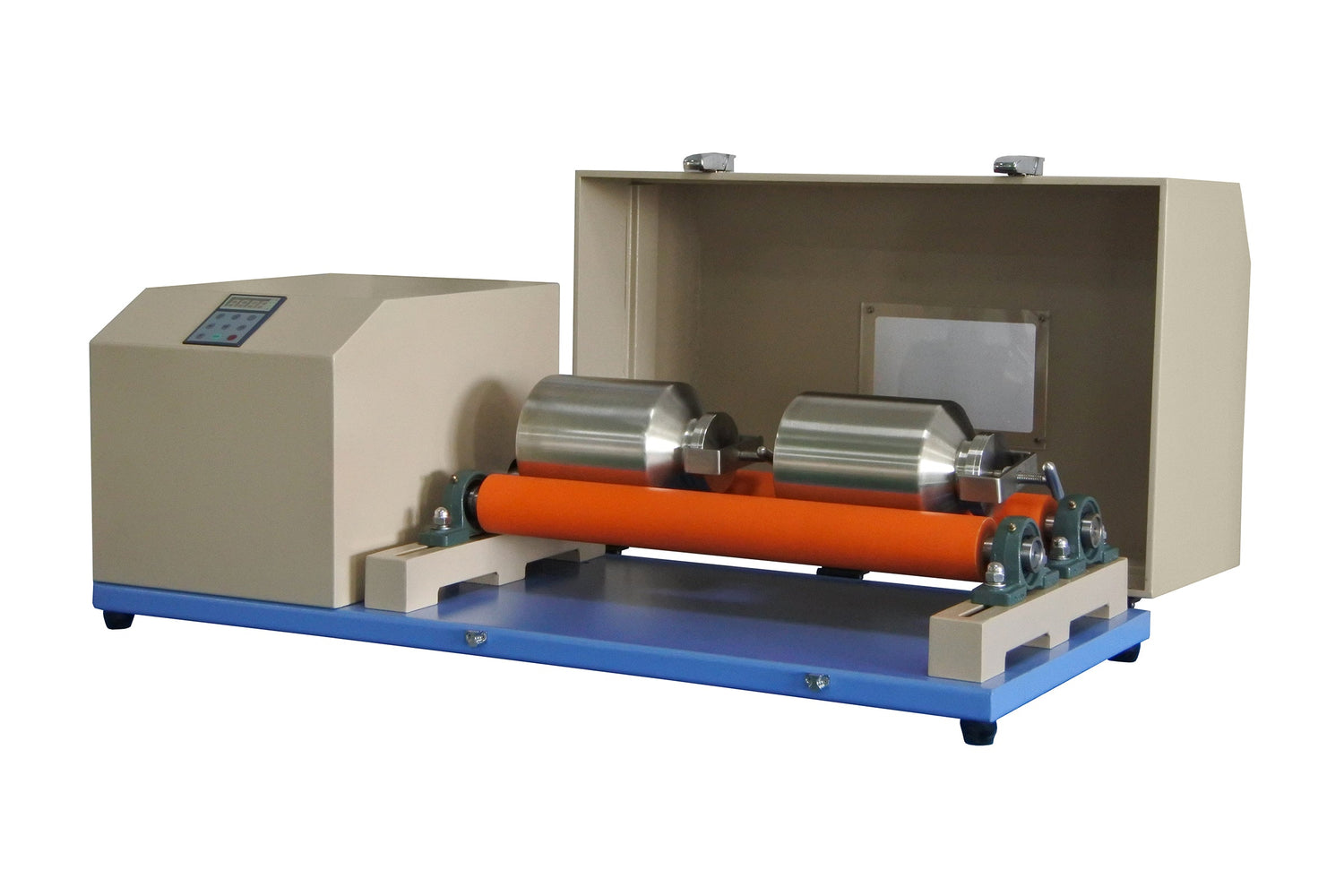

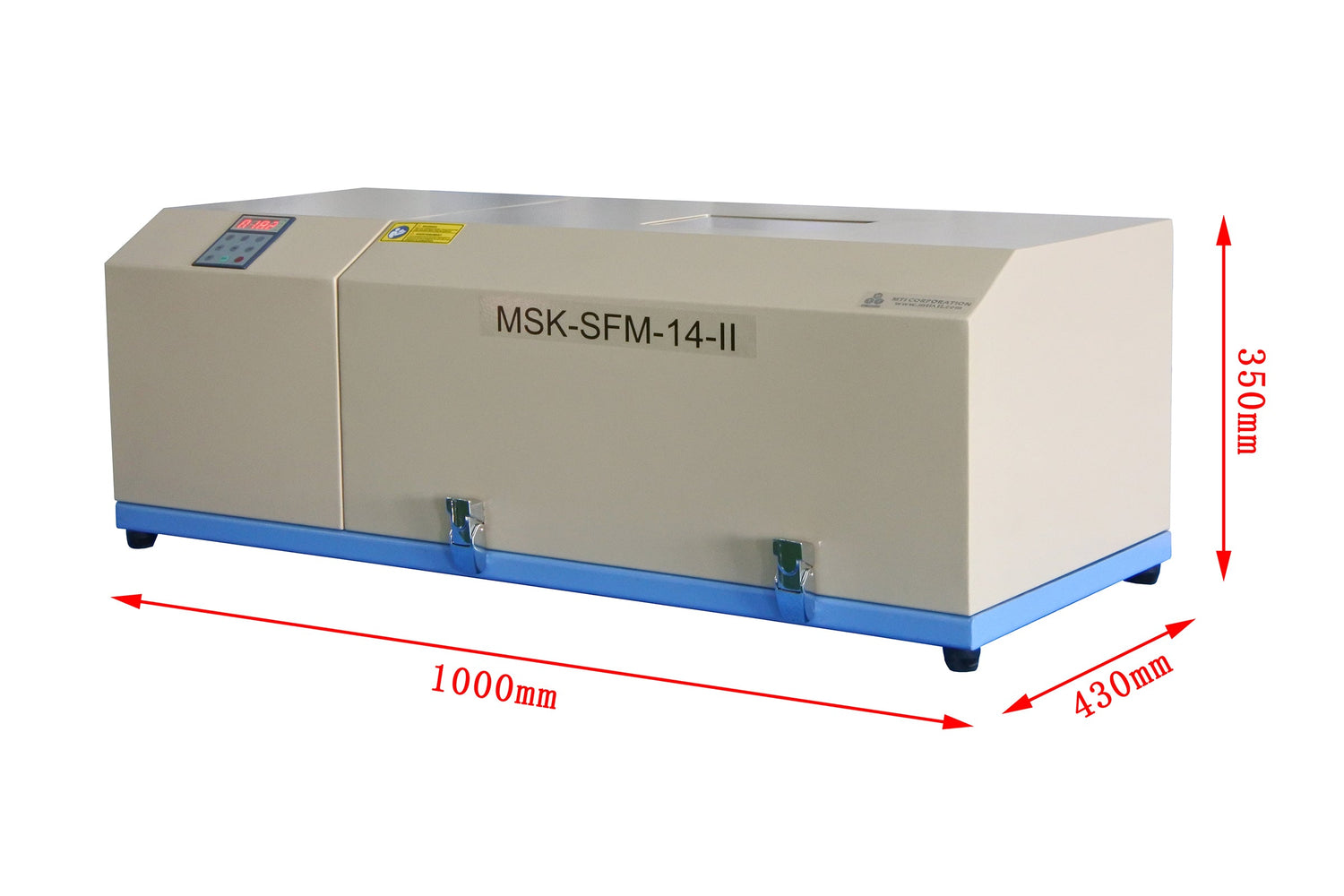

Heavy Duty Lab Roller Mill (25 - 50 kg) with Optional 1 or 2 Airtight Tanks - MSK-SFM-14

MSK-SFM-14 is a heavy-duty roller mill, capable of crushing, grinding, anddispersing metallic, non-metallic, and organic material powders, which can be chosen for a single tank or dual tank. Powders can be quickly ground, sheared, pressed, and impacted down to a smaller size by extremely high centrifugal forces of planetary balls. The simple control interface allows the user to customize the milling process by changing the milling speed and milling orientation easily. The milling process becomes more flexible if using the multiple segments milling function. An optional large stainless steel jar, vacuum jar, and liquid nitrogen cold grinding jar are available.

SPECIFICATIONS

Model #	MSKSFM14-I	MSKSFM14-II
Power Requirements	Input voltage: 208-240VAC, 50/60Hz, single phase Input power: 370 W You may order 500W transformer to use at 110V	Input voltage: 208-240VAC, 50/60Hz, single phase Input power: 750 W You may order 1000W transformer to use at 110V
Features (Selectable one tank or two tanks)	A solid steel frame with safety covers and window Single tank milling	A solid steel frame with safety covers and window Dual tank milling
Milling Model	Continuously/Pulse milling Time control: 0 - 99 hours adjustable Single/alternate orientation grinding	Continuously/Pulse milling Time control: 0 - 99 hours adjustable Single/alternate orientation grinding
Milling Speed	0 ~ 567 rpm	0 ~ 525 rpm
Rollers	The space of two rollers and driving wheels lengths are adjustable The roller can hold a milling tank with 135~290 mm in length, and 110~190 mm in diameter With the cover open and the safety lock sensor deactivated, the roller can hold the milling tank up 300mm in diameter	The space of two rollers and driving wheels lengths are adjustable The roller can hold a milling tank of 150~320 mm in length, and 105~220 mm in diameter With the cover open and the safety lock sensor deactivated, the roller can hold the milling tank up 300mm in diameter
Milling Tanks/Jars	1 piece of a two-liter stainless steel jar for MSKSFM14-I and two jar for MSKSFM14-II (pic.1) is included in the standard package. 2L Vacuum Jar for MTI Lab Roller Made of Corundum, Polyurethane or Nylon  is available upon request ( Pic. 2)  A vacuum / Pressure jar is available (Pic.3) pic.1 Pic. 2  Pic. 3
Milling Balls	One group of stainless-steel milling balls (included in the standard package) with sizes from 6-20mm in diameter Please click the link below to choose various milling balls ( Al2O3 and ZrO2 at an extra cost  ( ZrO2)
Material final fineness	10 ~ 70 um (200~1000 mesh)
Material feed size	< 5 mm (depended on feed material size)
Optional & Application Notes	New liquid nitrogen grinding jar is available at extra cost Please consider our SYU-3 ultrasonic filtration system to filter the product
Compliance	CE Certified NRTL certification is available upon request at an extra cost
Operation Video
