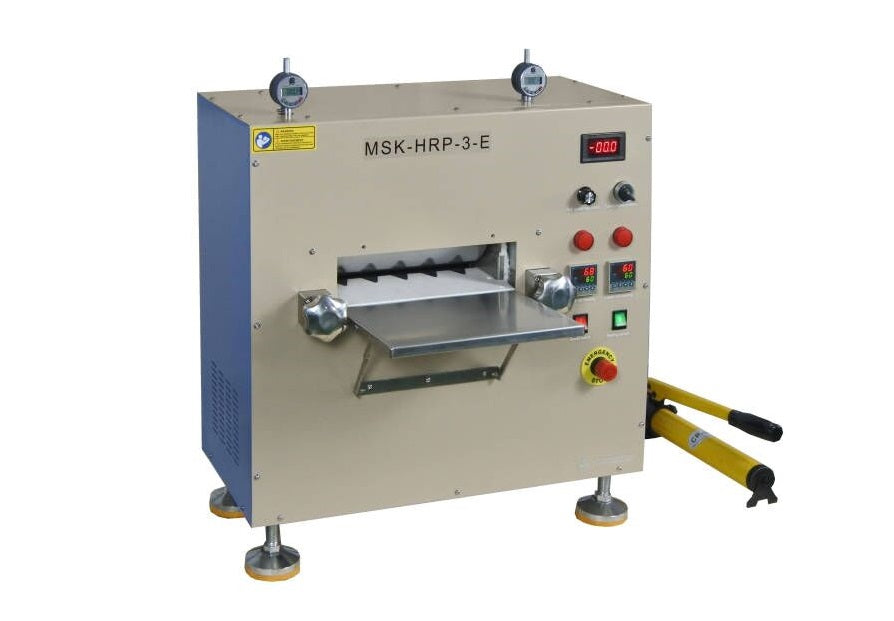

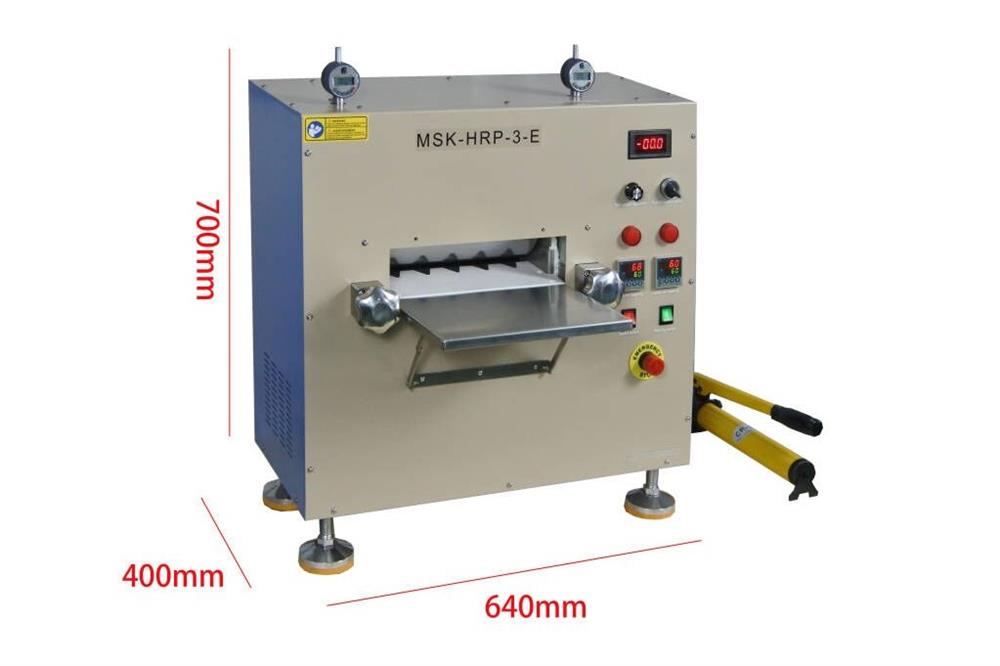

10 T Max. Pressure adjustable Cold Rolling Press (10"W x 8"D ) with Optional Hydraulic Pump - MSK-HRP-3-C

• Apply pressure up to 10 metric tones via a manual hydraulic pump
• An electric hydraulic pump is optional to keep constant pressure up to 10 metric tons
• Adjustable gap between rollers (0~6 mm) with micrometer thickness indication
• Rollers are made of high-quality tool steel with cr-plated
• Rolling direction selectable (back and forth), easy-to-return material

•  AC 208 - 240 V single phase, 50/60 Hz
• Total: 2000 W
• 6 feet power cable is included, but the power plug is not included. Please click here to order the plug

Rollers Size & Surface Hardness

• Diameter: 200 mm (8")
• Width: 250 mm ( 10")
• Effective rolling width: 200 mm Max.
• Linear Speed: 5 - 58 mm/sec adjustable
• Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5)
• HRC 60-62 (Cr plated)
• Never roll materials with hardness > 50HRC

Roller gap accuracy

• 0.01 mm by two digital micrometers

Rolling Thickness

• 0~ 6 mm adjustable

• CE Certified
• UL, TUV or CSA certification is available upon request at extra cost

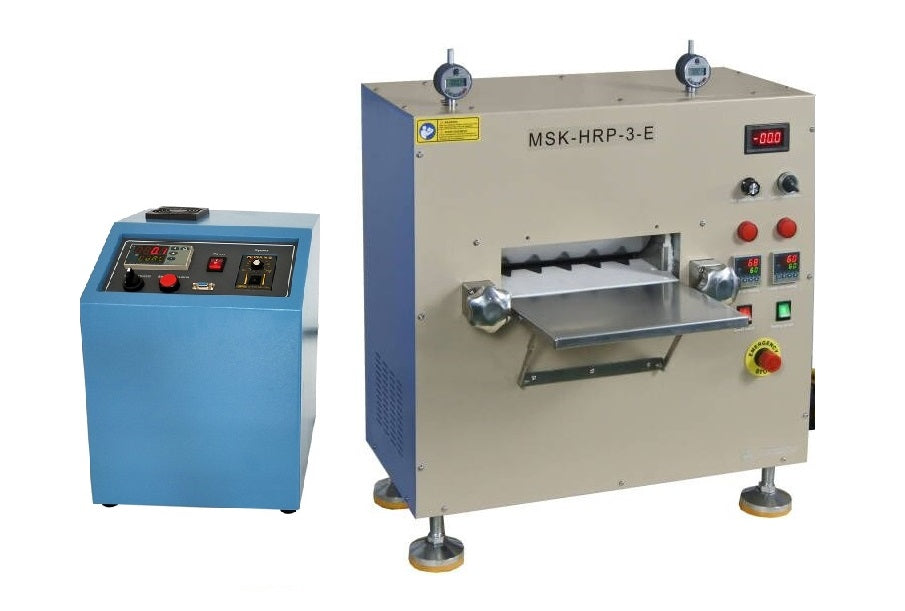

• You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2)

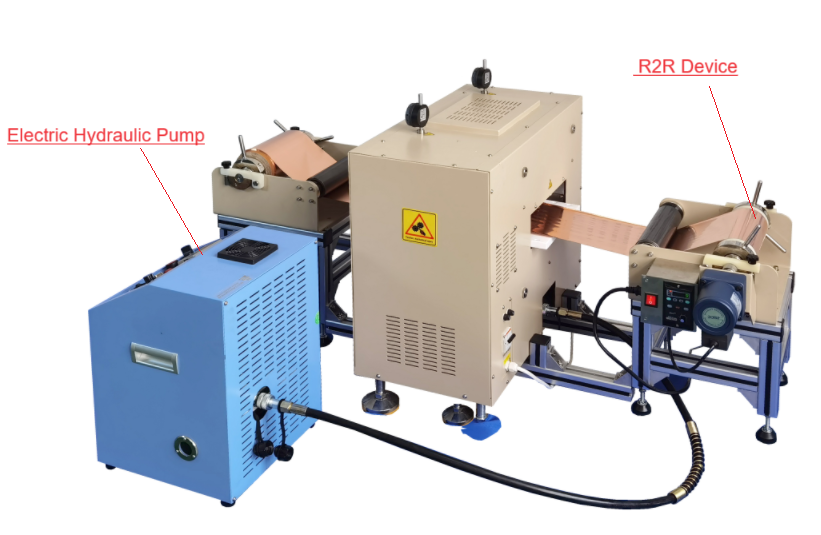

• Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 4 to order)

• Never roll materials with hardness > 50HRC
• Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm compared to the sheet's original thickness.
• Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
