6" Ultrafast High-Temperature Sintering (UHS) System up to 2400°C with Robotic Arm in the Glove Box - UHS6

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

6" Ultrafast High-Temperature Sintering (UHS) System up to 2400°C with Robotic Arm in the Glove Box - UHS6

MTI

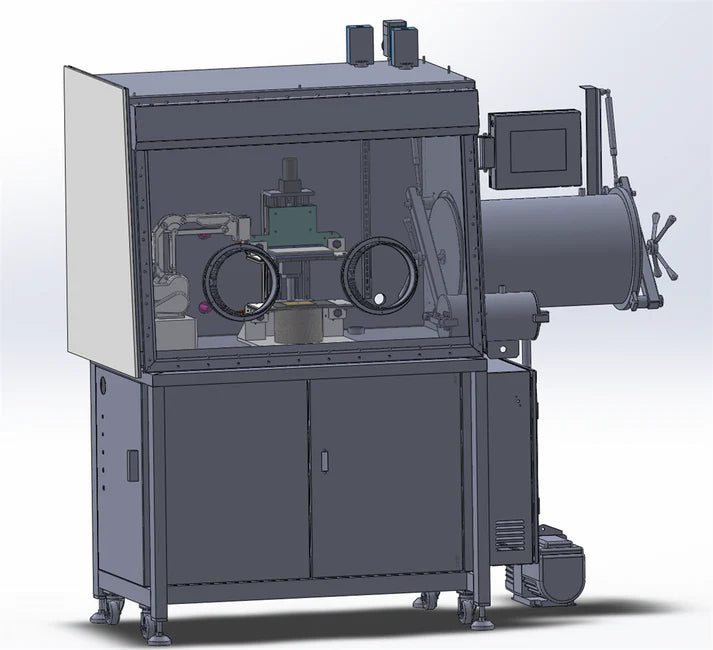

UHS-6 is an Ultrafast Sintering Furnace (UHS) with a heating speed of more than 200°C/minute up to 2000°C. Two 6"x6" Carbon felts are used as heating elements, which can process the samples up to 4"x4". A robotic arm will load and upload samples automatically. The whole system is put in a glovebox with a purification system with oxygen and humidity of less than 1 PPM.

SPECIFICATIONS:

Power
  • Voltage: 220VAC +/- 10% , three-phase, 50/60Hz
  •  Watge: 100 KW
 Heating Element &
Temperature Control
  • Two 6"x6" carbon felt with thermal insulation
  • Two programmable temperature controlled to control the element independently
  • Two IR sensors are installed to detect the temperature
 Working Temperature
  • Max. working temperature: 2400oC Max in a short time ( < 60 seconds)
  • Heating rate: 200oC/ second
Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost.







MTI offers a One-Year limited warranty for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
