PEM Electrolysis Cell Fixtures [B/B]

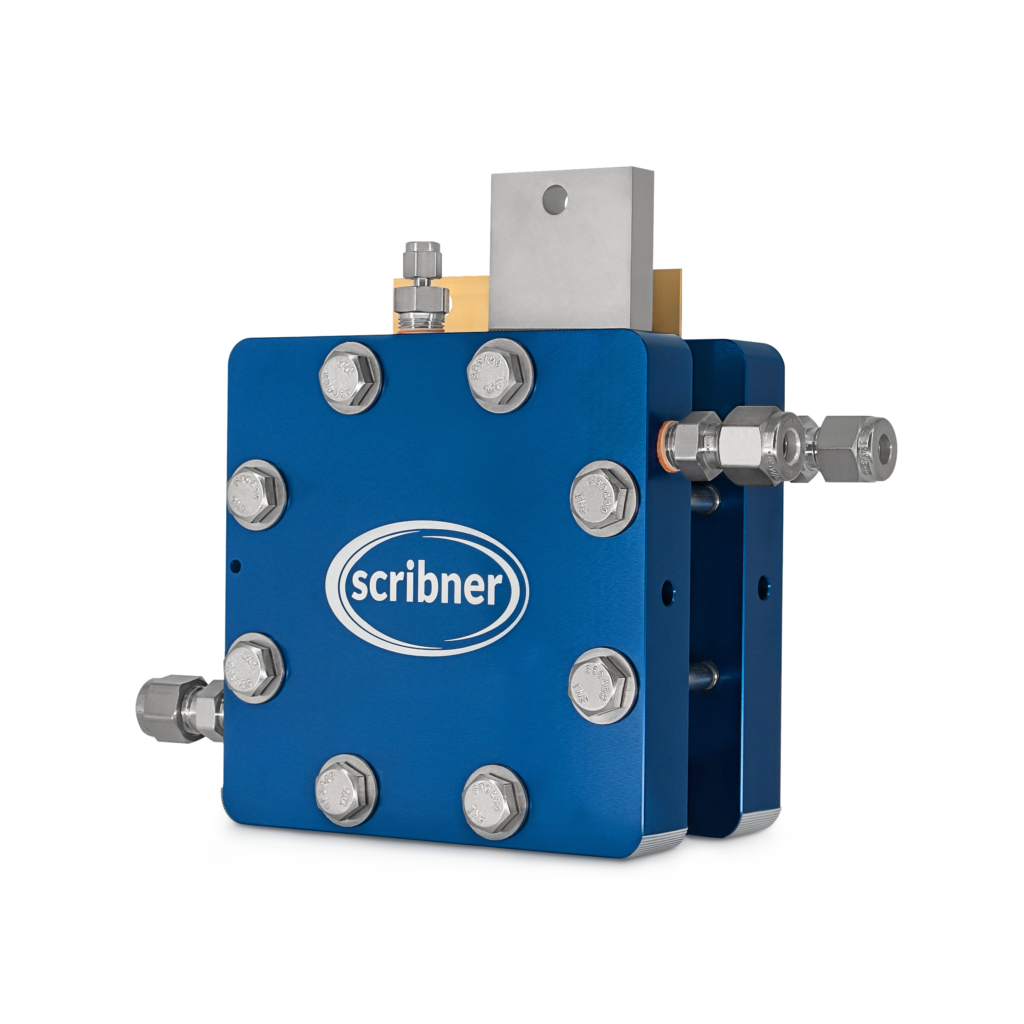

Our Electrolysis Cell Fixture is specifically designed for the 600 / 620 Water Electrolysis Test Stations.

 Blue End-Plates –

Pt-Ti flow field on the Positive Side and Graphite flow field on the Negative Side. The difference is in the End-Plates:

• Blue End-Plates are suitable for DI water


Available Only from Scribner

FEATURES

• The Electrolysis Fixture is available with 5cm² OR 25cm² flow fields or as ‘Dual Area Fixture’ with 5cm² AND 25cm² active area
• Anodized Aluminum end plates
• Platinized Titanium flow field and Porous Media for Positive (O₂) electrode
• Sealed high-purity POCO graphite flow field and Carbon Diffusion Media for Negative (H₂) electrode
• Cell heaters available for 115 V or 230 V operation
• Operating temperature up to 200 °C
• Gaskets, Gasket Templates, Swagelok^® Fittings and Thermocouple Included

CELL COMPONENTS

• Flow fields with precision machined serpentine or interdigitated flow pattern (custom flow patterns available)
• Gold-plated copper current collectors
• End plates with reactant input/output ports, stainless steel Swagelok^® compression fittings, cartridge heaters and thermocouple well
• 60 cm (24 in.) heavy-gauge copper conductor load cables
• Gaskets, gasket templates and additional hardware such as bolts, washers, fittings and O-rings

Datasheet.PDF
