MTI  |  SKU: MSK-JQ-6100

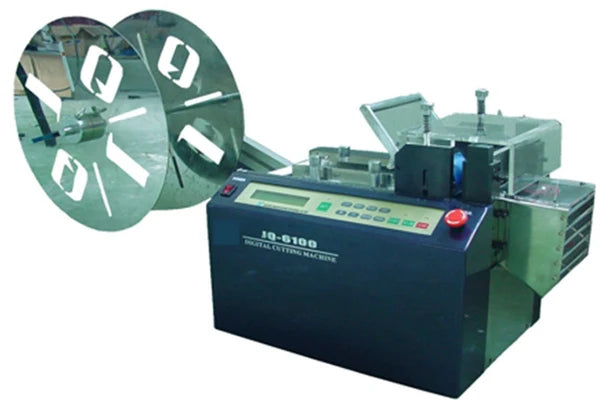

Automatic Slitting Machine for Electrode Tab Cutting of Cylindrical & Pouch Cell - MSK-JQ-6100

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Automatic Slitting Machine for Electrode Tab Cutting of Cylindrical & Pouch Cell - MSK-JQ-6100

MTI

MSK-JQ-6100 is an automatic slitter for tab cutting of cylindrical & pouch cell. The tab length can be set on the touch screen and various width of the nickel tab roll can be loaded.

SPECIFICATIONS:

Voltage & Power
  • AC220V±10%, single phase, 50/60Hz, 100 W

Cutting Length
  • 0.1-99999 mm
Cutting Width
  • 0.1-100 mm
Max. Cutting Pieces
  • 99999 pieces
Save Cutting Recipe
  • 10
Feeding Motor
  • Step Motor
Cutting Motor
  • AC Motor
Cutting Speed
  • ~100 pieces (if each piece is 100 mm long)
Machine Size
  • L430 mm * W265 mm * H360 mm
Weight
  • ~29 kg
