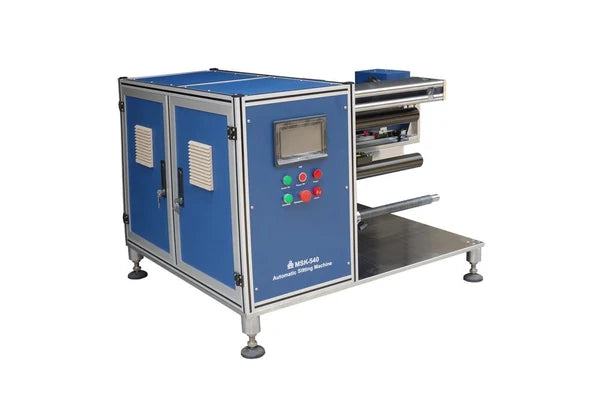

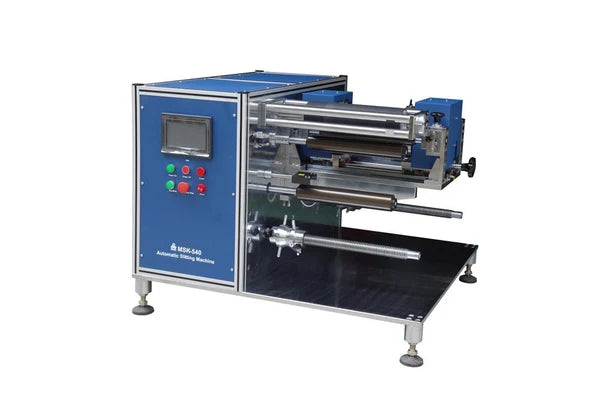

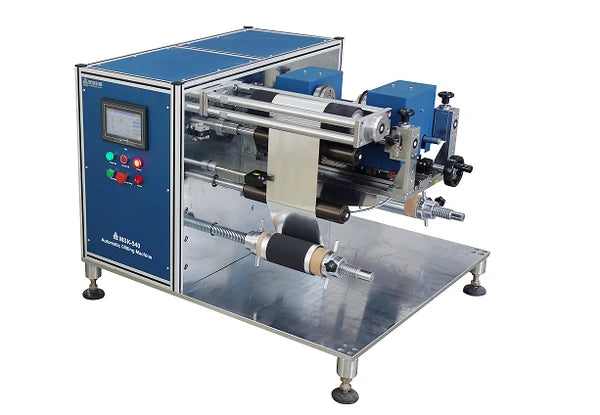

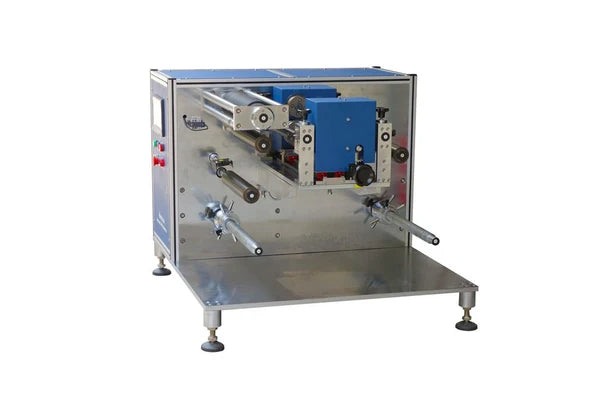

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540

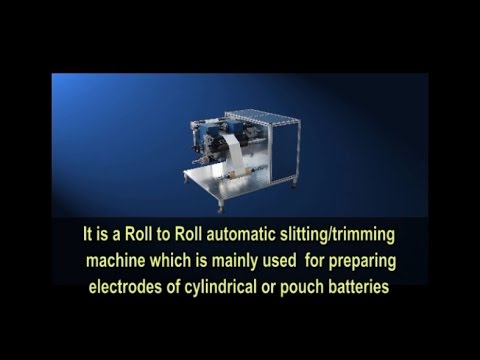

MSK-540 is a Roll to Roll automatic slitting / trimming machine mainly used for the coated electrode edge cutting in order to prepare the single strip of electrodes of cylindrical or pouch batteries in R&D laboratories.

SPECIFICATIONS:

Working Voltage	Power supply: Single-phase 220VAC, 50/60Hz For operating at 110V AC, please order a transformer separately by click Picture below
Max. Power Consumption	400W
Features	Burr condition: ≤ 25 um  Automatic Tension control ≤ 50N  Max. Reeling/Unreeling Diameter: 250mm Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades	Top and bottom set of round blades Blade Materials: ultrafine tungsten alloy Blade Diameter: 100mm

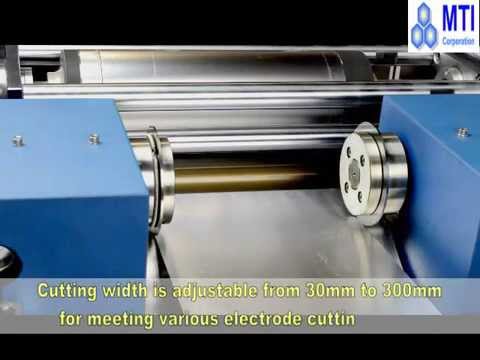

Cutting Width	30 ~ 300 mm adjustable Stepless adjustable, manual adjustment, digital display
Cutting Thickness	10 - 300 um
Cutting Speed	1 - 5 meter / minute Adjustable
Optional Upgrades	Multi-blade and wrapping roller can be upgraded to enable slitting at 5 strips at an extra cost De-dusting and iron powder removing devices can be added at extra cost as pictures below
Compliance	CE certified NRTL or CSA certification is available upon request The patent 201821974061.8 since September 2019.
