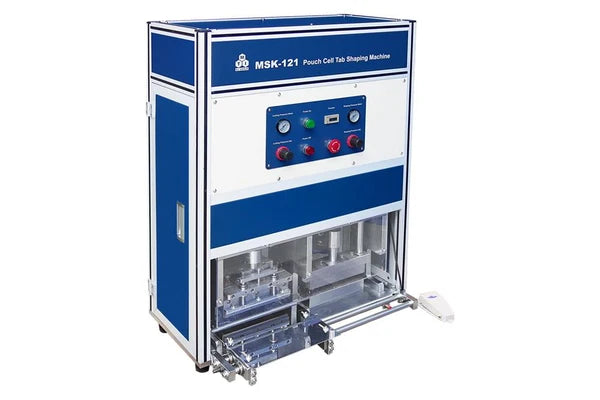

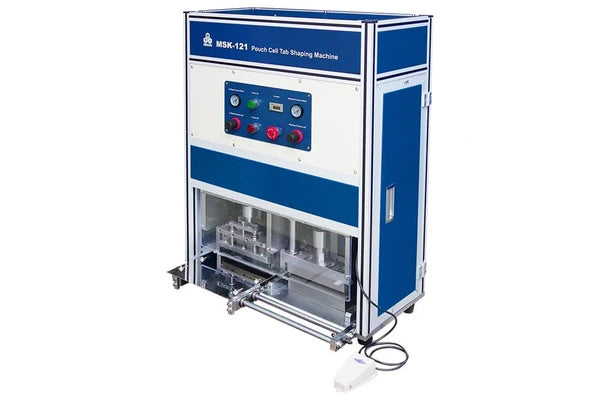

Pouch Cell Current Collector Tab Shaping Machine - MSK-121

MSK-121 Pouch Cell Current Collector Tape Shaping Machine is used for slitting and Ironing the current collector metal tab before the welding.

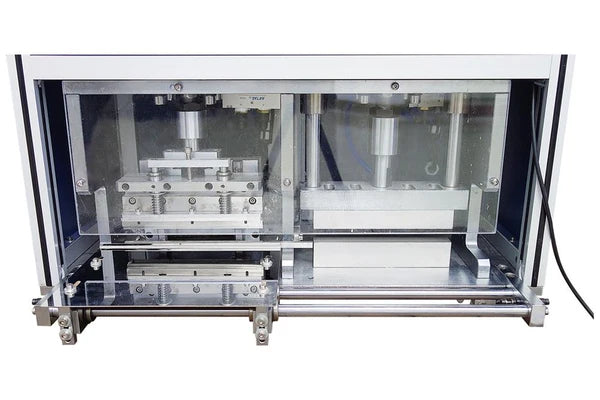

There are two working stations: one for slitting or cutting, the other one for ironing or flatten.
It is an ideal tool for the pouch cell pilot line.

SPECIFICATIONS:

Input Voltage	AC 110V or 220V +/-10%, 50/60Hz  (Please select in the product options bar)
Power Consumption	100 W
Pneumatic Control (Not included)	Air pressure at 85 psi is required for the operation (Air Compressor is not included. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator   pic1        pic2
Pouch Cell Dimension	Maximum pouch cell width: 200 mm Maximum pouch cell tape width: 100 mm
Slitting Blade	Width: 200 mm Maximum pressure: 1,000 kgf
Ironing or Flatten	Maximum pressure: 1,000 kgf
Compliance	CE Certified
