MTI  |  SKU: MSK-CSC-B450

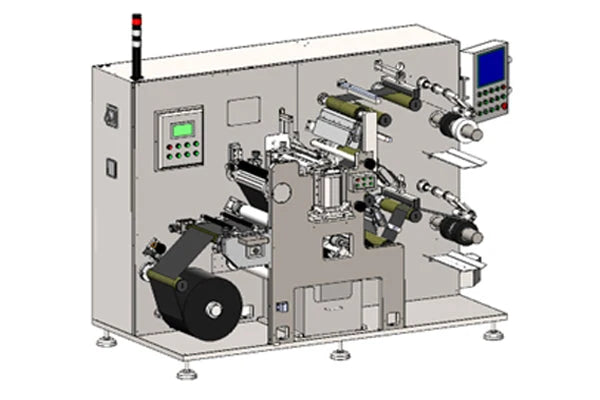

Roll to Roll Continuous Slitting Machine (Max.400mm Width) for Multiple Electrode Strips - MSK-CSC-B450

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Roll to Roll Continuous Slitting Machine (Max.400mm Width) for Multiple Electrode Strips - MSK-CSC-B450

MTI

MSK-CSC-B450 is a Roll to Roll automatic continuous slitting machine for electrode rolls with a maximum 350 mm width (roller width is 400 mm).

  • Multiple electrodes strip slitting
  • High precision round disc blades
  • Cutting depth and speed are adjustable
  • Automatic Roll to Roll Feeding and Correcting


SPECIFICATIONS:

Working Voltage
  • Power supply: AC380V AC±10%, 50/60Hz, Three Phases (AC220V is available upon request)
  • Maximum Power: 8 kW (Airbreak ≥ 25 A)
Winding and Unwinding
  • Automatic Tension Control: 0- 100N, Accuracy: ± 2N
  • Max. Winding and Unwinding Roll Diameter: 400mm/300mm
  • Guiding Roll Width: 450 mm
  • Core Diameter of Unwinding Roll: 3", Mechanical Expansion for Fixing
Cutting Blades
  • Burr condition: ≤ 8 um
  • Four electrode strip slitting
  • Top and bottom set of round blades
  • Blade Materials: Ultrafine Tungsten Alloy
  • Blade Diameter: 100mm
Cutting Width
  • Range: 30 ~ 350mm (please indicate the cutting width before ordering). Blade set with various width can be switched. Accuracy: ±0.05mm
  • The width of the electrode strip is preset and fixed
  • Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness
  • 10 - 350 um
Cutting Speed
  • Adjustable: 0 - 40 m/min
Optional Upgrades
  • Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost
  • De-dusting and iron powder removing device could be added at extra cost
