MTI  |  SKU: MSK-SFM-20L

20 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-20L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-20L

MTI

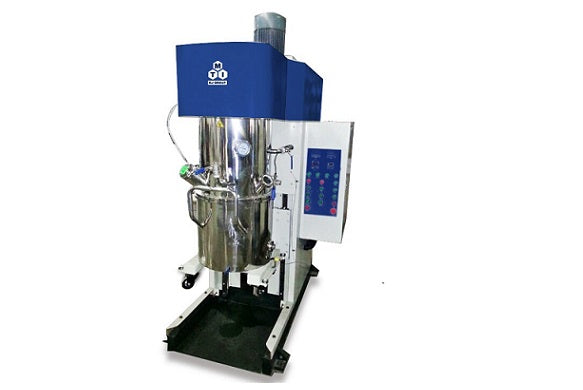

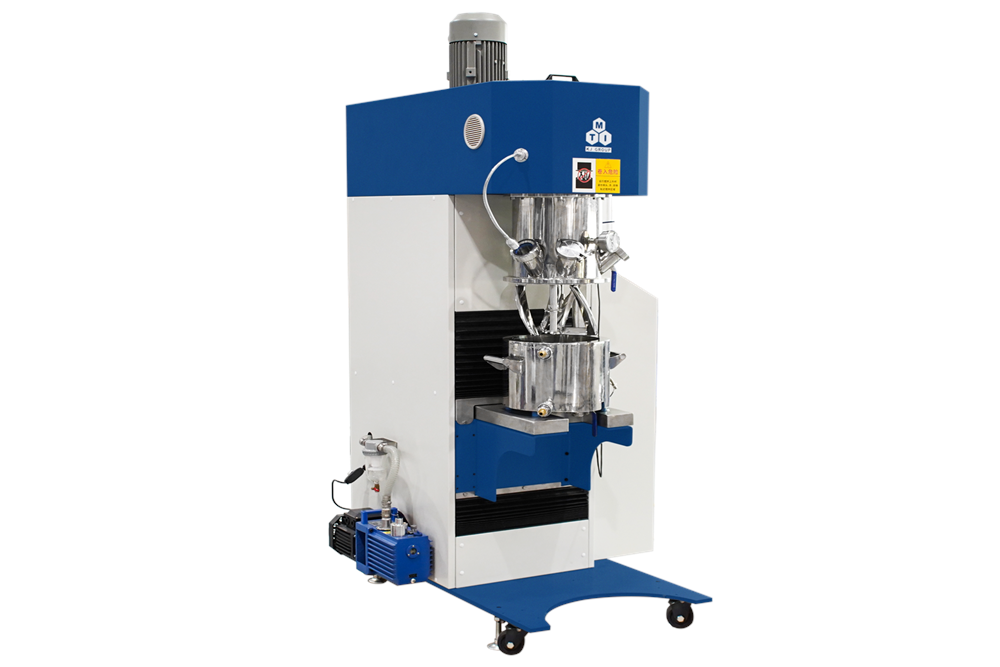

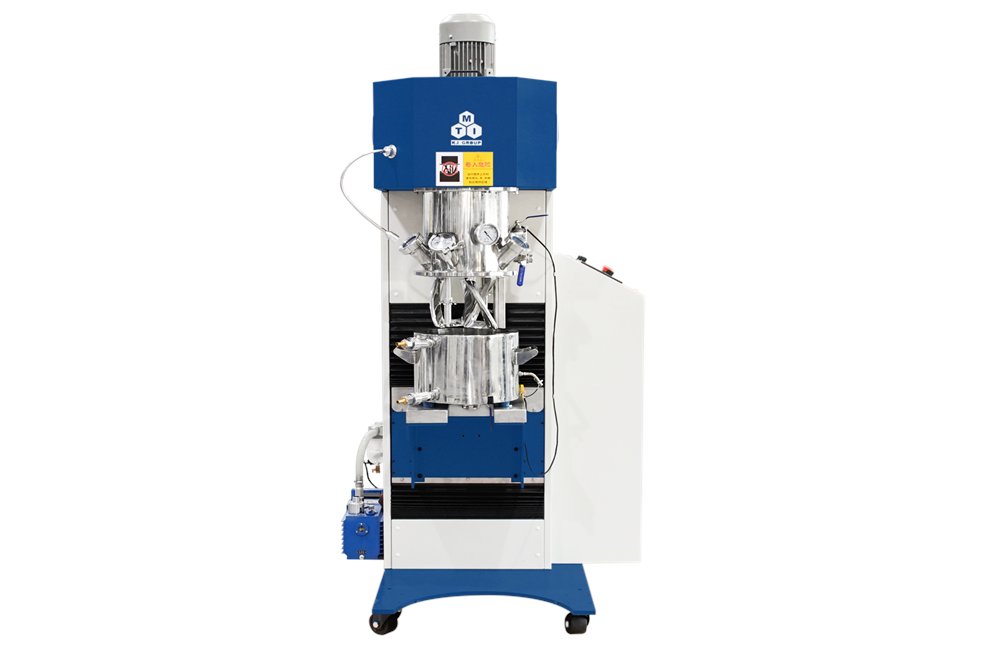

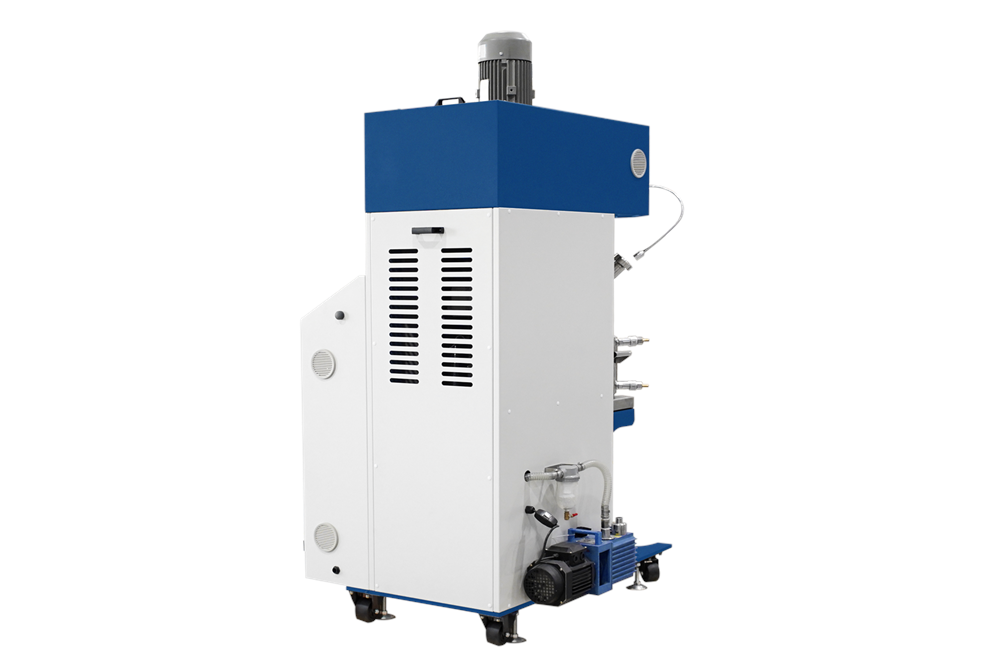

MSK-SFM-20L is a CE Certified and MET-ready large Vacuum Planetary Mixer with effective 20-liter containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double planetary stirring shafts, and shaft for scraping the walls to make slurry mixing without dead corners and with extreme uniformity under vacuum. A temperature-controlled water circulator is included to make the container work at the temperature range from 50ºC to 35ºC directly and a water cold stainless steel tank can promise high efficiency in mixing. It is excellent for preparing LiCoO2, LiFePO4, NCM and ceramic slurry with excellent results in dispersion and uniformity.

SPECIFICATIONS

Power Supply
  • Total power: 8000 Watt Max.
  • Voltage: 380VAC 3phase (220VAC 3 Phase is also available. Contact us for the detailed information)
  • The power plug is not included. Please click here to order the plug)
Speed
  • Stirring blade rotation speed: 2 - 110 rpm (suggested the minimal stirring speed is 5 rpm),
  • Dispersing blade rotation speed: 100 - 6000 rpm (suggested minimal dispersing speed of 300 rpm)
Viscosity
  • Max. 100000 mPa·s (cps)

Vacuum
  • The vacuum level: ? -0.098MPa
  • The heavy-duty double-stage vacuum pump is included. Click the pump pic for detailed information.
Lifting system
  • Hydraulic lifting cylinder
  • 370W/4P electric driving motor
  • lifting height: 300mm max.
Bucket
  • SS304
  • Thickness: 6mm (inner wall), 4mm (outer wall)
  • Dimensions: Dia.344mm x H.270mm
  • Capacity: 20 Liter effective ?25L total volume?
  • Water cooling jacket (side and bottom), water pressure < 40psi
  • Fork slot at bottom of the bucket for easy transportation by a forklift
  • Temperature monitors and over-temperature alarm
Distance for blade and bucket
  • Distance between stirring blade and bucket bottom: 2-4 mm
  • Distance between stirring blade and bucket wall: 2-5mm
  • Distance between stirring blades: 3-8mm
  • Made of SS 304
Scraping blade
  • The blade is made of PTFE.
  • The blade rotates with the main shaft.

Water Recirculating Chiller

 One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - EQ-KJ5000 included


Connected Accessories & Fittings
  • One DN50 feed hole
  • Three-piece type ball valve outlet
  • Two DN50 sight glasses
  • One G1/2" vacuum connector with vacuum pump
  • One G1/2" air outlet
  • One vacuum meter
  • 12mm O.D. water inlet and outlet fittings
Compliance
  • CE Certified
  • NRTL certification is available upon request at extra cost
