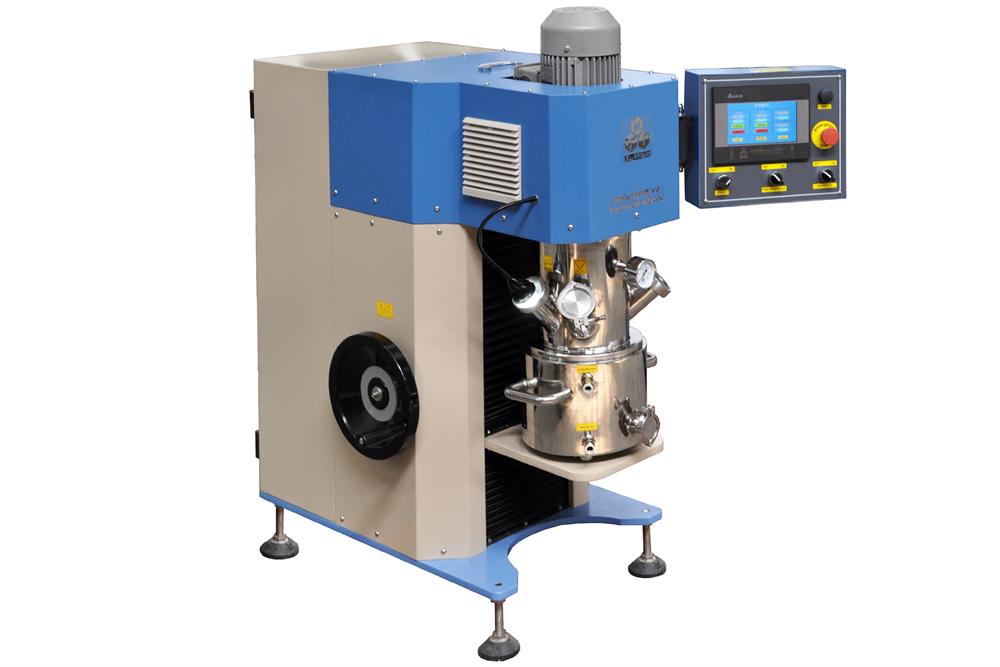

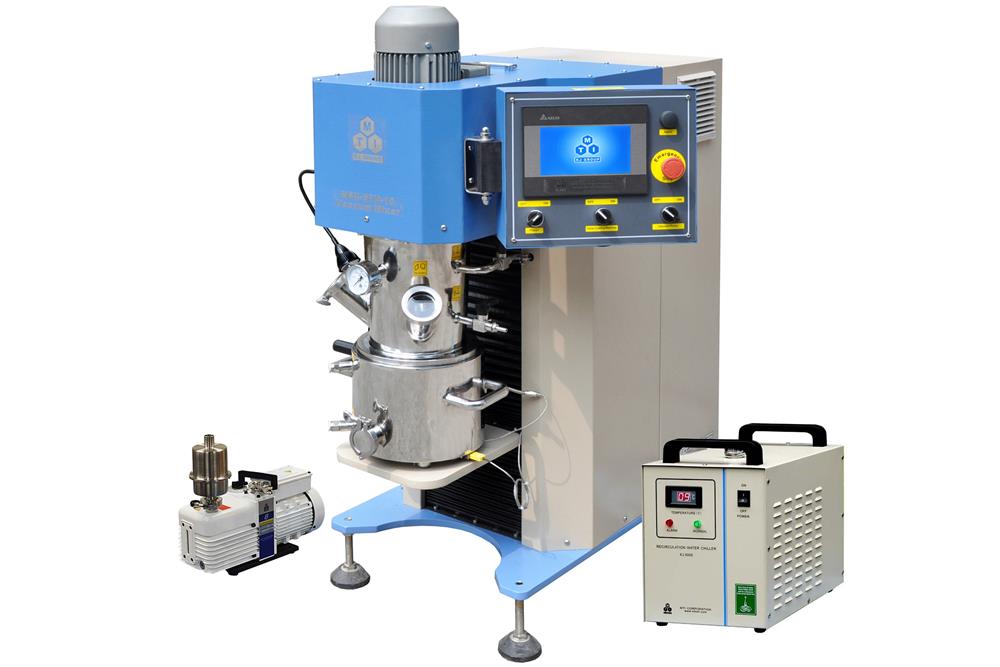

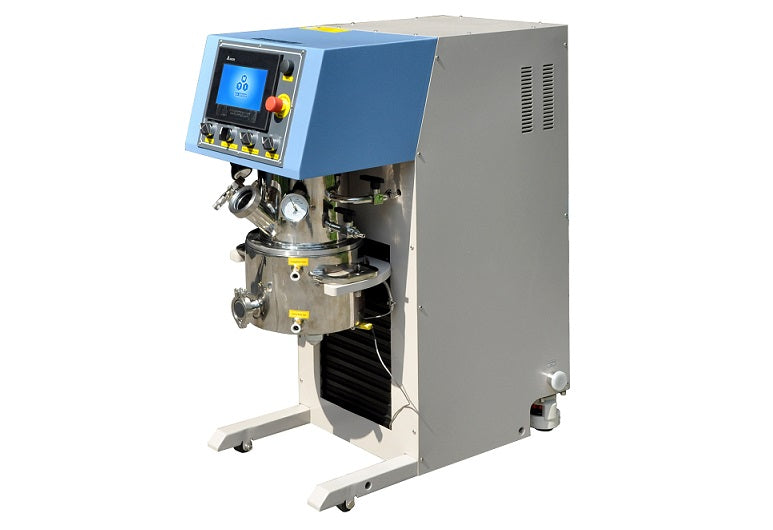

2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A

MSK-SFM-2L is a Tri-Shaft Planetary Vacuum Mixer with a 2-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique tri-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-2L is an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus, and ceramic slurries and provides much better results in dispersion and uniformity.
Note: Revised vacuum pump and water chiller cost since April 25, 2016.

SPECIFICATIONS

	Standard Version MSK-SFM-2L For Viscosity <= 9000	High Dispersing Speed Version MSK-SFM-2L-A   For Viscosity <= 5000
Mixing Blades Speed & Power	Stirring : 0 ~ 112 RPM , 750W Dispersing : 0 ~ 3354 RPM, 750W For Viscosity: 100 - 9000 mPa·s (cps)	Stirring: 10~ 150 RPM , 200W Dispersing: 200~5000 RPM, 200W For Viscosity: 100 - 5000 mPa·s (cps)
Dimensions	970mm × 840mm נ1050mm (W × D × H) Mixing Tank: 180mm Dia. נ135mm Height	460mm נ760mm × 980mm (W × D × H) Mixing Tank: 180mm Dia. נ135mm Height
Power Consumption	2kW (Recommend 20A Outlet for pump cold start)	1kW (Recommend 20A Outlet for pump cold start)
Working Voltage	208 - 240V AC, 50/60HZ, Single phase (Power cord included) 220V AC Power plug is not included. Please click here to order the plug
Mixing Tank Diameter	40mm
Mixing Tank Vertical Distance	130mm, manual
Mixing Blades	3 axis planetary mixing 2 stirring blade 1 dispersing blade 1 spatula
Vacuum Pump	One double-step rotary vane vacuum pump is included
Liquid Cooling	One water chiller with 9L tank - EQ-KJ3000 is included
PLC Control Panel	Digital touchscreen for efficient adjustments
Compliance	CE Certified NRTL or CSA certification is available upon request at an extra cost
Warning	The recommended operating time is (this restriction applies to model # MSK-SFM-2L-A only): < 1 hr @ 8000RPM dispersing. < 2 hr @ 7000RPM dispersing. < 3 hr @ 6000RPM dispersing. < 4 hr @ 5000RPM dispersing. Continous @ 4000RPM dispersing. Please adopt feed-batch mode when adding solid powder into dispersion liquid. One-time feeding will cause high resistance towards shaft/blade, as well as local overheating.
