Spin Coater in Dual Chamber Glove Box w/ Gas Purification System (H2O & O2< 1ppm) - VGB-6-II-SC

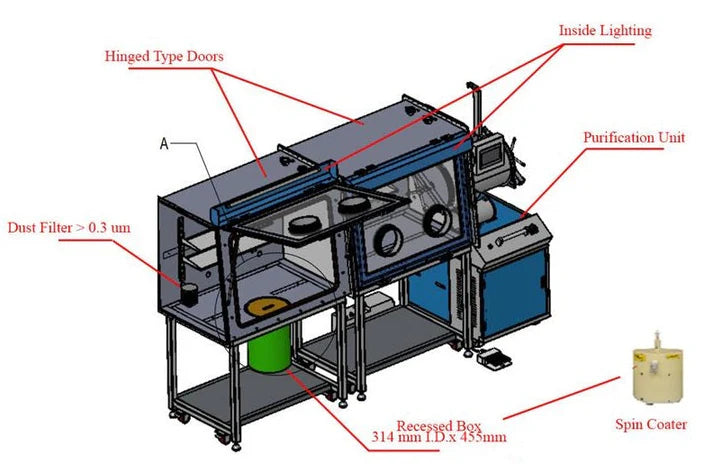

VGB-6-II-SC is a dual-chamber glove box with the recessed box in the bottom to place a spin coater or small verticle.  The purification system in the glovebox will provide the environment of O2 and H20 less than 1 ppm, which is designed for preparing new material, especially for perovskite solar cell without the influence of oxygen and humidity.

SPECIFICATIONS

Working Voltage	110VAC or 220VAC, 50/60Hz, Single Phase 2700W
Glove Box Chamber	Openable left-front window panel (tempered glass, 8 mm thick) Dimensions: 2400mm(L) x 800mm(W) x 930mm(H) Case Material: Stainless Steel 304 12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner. Built-in fluorescent lamp Two slidable shelves, 300mm L x 250mm W x 300mm H Purification system ensures O2 and H20 less than 1 PPM Automatic purging and regenerating functions are included for fast removing oxygen and humidity Please check picture at the left column to see detailed specification about the dual-chamber glovebox  One round recessed box with the dimension of 314 mm ID x 455mm depth, is built in the bottom of left side glovebox with two feed-throughs to connecting with the power and vacuum pump
Spin Coater	The case and spin disk of the coater are made of Polypropylene (PP) to resist most of the corrosive solutions.  The spin coater will be put inside the recessed box with cover. The digital control box and the oilless vacuum pump are separated from the spin coater, which will be put outside the glovebox via the feedthrough for easy operation. One filter is included in the standard package. It is used to connect the pump and coater for preventing wastewater from flowing into the pump. Chamber diameter:  150 mm. The vacuum chuck:  Φ100mm, which can hold substrate up to 6" Dia. ( see Pic. 1) If your sample < 10 mm, please order rubber cup at extra cost ( click Pic. 2) You may use blue tape for the sample with irregular shape  ( Pic. 3) Spin Speed:   500 - 8000 RPM programmable with six segments in the control panel outside the glovebox.                Pic. 1         Pic. 2Pic. 3 Please click the picture left to see the detailed specifications of the spin coater.
Options for Upgrade	Heating cover with digital temperature controller up to 120 is available upon request at extra cost ($1950), which allow sample drying in-situ during and after coating (Click Pic 1 & 2) You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for better coating (Click Pic 3) Using a plasma cleaner to treat the substrate surface before the coating can improve film quality Pic 1  Pic 2  Pic 3  Pic 4
Heatable Antechamber (optional)	Heatable Antechamber: 200C max., DN385×588mm (L), available Two large ante-chambers, one right and one left, is available upon request
Product Dimensions	3115mm(L) x 830mm(W) x 1830mm(H) (123" x 33" x 72")
Shipping Dimensions & Weight	2 pallets, 1800 lb total weight     #1: 86"x41"x84"     #2: 86"x41"x83"
Operation Instructions
Warranty & Compliance	One Year limited warranty with lifetime support Rusting and damage due to improper storage or maintenance are not covered by warranty Gloves are consumable items and are not covered under warranty NRTL or CSA certification is available upon request at the extra cost
