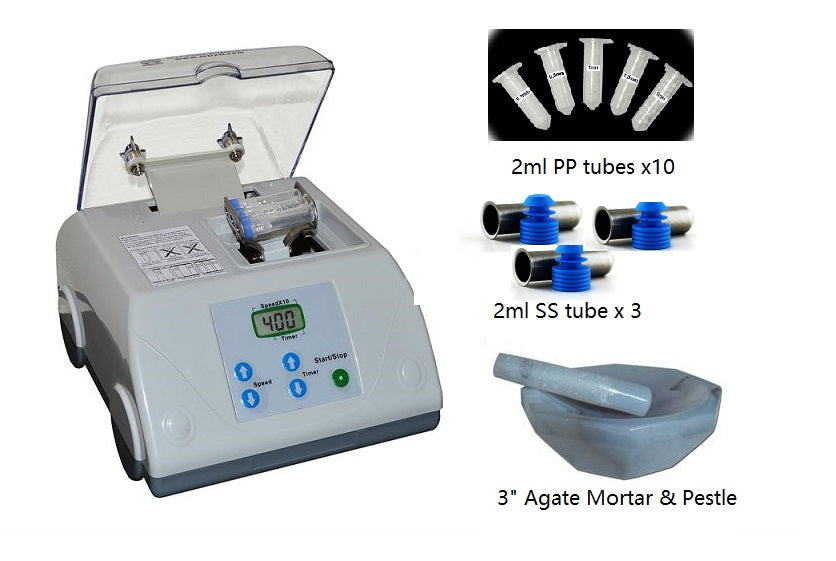

Micro-Vibration Mill with Grinding Tubes, YSZ Beads and 3" Agate Mortar - MSK-SFM-12M-A-LD

MSK-SFM-12M-A-LD is a high-energy Micro-Vibration Mill for small quantity milling and mixing up to 3 samples at 2 ml tubes. 10 pcs PP tube and 3 pcs stainless steel tube are included. The optimized mixing motion causes rapid milling through the high-velocity impact via YSZ micro-beads. One 3" agate mortar and pestle are included for grinding rough powder before milling, MSK-SFM-12M-A-LD provides an economical alternative to the traditional, over-priced ball milling on the market today. (The ball mill can be used under Ar gas glovebox)
Note: 3 pcs stainless steel tube are added since August 20, 2020

SPECIFICATIONS:

Working Voltage	110V AC 50/60Hz  For 220V AC please click here to order a transformer  24VDC motor driven and Ar gas compatible
Vibration Speed	2700 to 4000 rpm adjustable
Timer	0 to 3 minutes adjustable for each running Please allow the machine to cool and don't keep running without cooling
Capacity	3 x 2.0ml tube can be loaded on the device simultaneously
Tube	10 pcs 2ml PP tubes  are included. (Pic,1) Tube size: 10.2 OD x 8.3 ID x 46.7 H, (mm) Cap OD is 13mm ( may grinding powder to < 5 ?) 3 pcs stainless steel 2 ml Micro-vials are included Pic. 2 ( may grinding powder to < 1?) Pic. 1 Pic. 2
Grinding media and Agate Mortar with Pestle	Five types of Pure High Impact Zirconia Beads are included for rapid milling Ø0.5mm,Ø1.5mm, Ø3mmZirconia Beads, 5 of each. Extra zirconia balls are available upon request at extra cost One set of 3" Agate Mortar and Pestle is included for grinding rough powder before milling.
Particle distribution	Material dependent For alumina, 5-micron particles are achieved within 30 minutes.  Experiment Report - Ball Milling of LAGP Powder using MSK-SFM-12M-A ( 500 nm for 30 minutes )
Operation Video
Application Notes	Instruction on Replacing Sample Holder The mixer can be placed into a glovebox and Ar gas compatible

STANDARD PACKAGE

No.	Name	Qty.	Picture (Click to Enlarge)
1	MSK-SFM-12M Milling Machine	1 unit
2	3" Agate Mortar with Pestle	1 set
3	Spare Jig	1 pc
4	2ml tube	10 pcs
5	Spring	4 pcs
6	Fuse	2 pcs
7	Ø0.1mm Milling Media ball	As Shown In Pic
8	Ø0.5mm Milling Media ball	As Shown In Pic
9	Ø1mm Milling Media ball	As Shown In Pic
10	Ø1.5mm Milling Media ball	As Shown In Pic
11	Ø3mm Milling Media ball	As Shown In Pic
