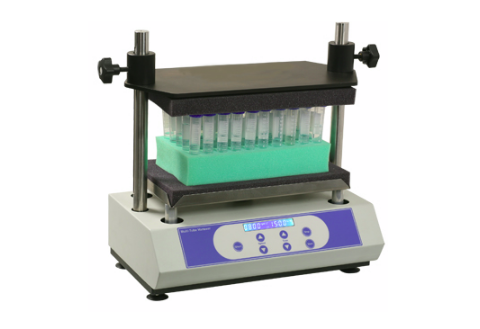

50 Cavities Vortex Vibration Ball Mill w/ YSZ Balls for High-Throughput Research - MSK-SFM-50

MSK-SFM-50  is a high throughput vortex-vibration ball mill that sets the performance standard for small quantity milling and mixing up to 50 samples for 15 ml tube, which takes place (often within 60 seconds) inside the disposable 5 ml screw-cap microtubes. The optimized mixing motion causes rapid milling through constant high-velocity impact from the hardened YSZ micro-beads. It is excellent for material genome initiative research of ceramic compounds.

SPECIFICATIONS:

Working Voltage	100 - 240V AC 50/60Hz for worldwide use 60W ( 1.5A ) US Plug
LCD Control	LCD controller for setting speed and time Speed range: 500-2500rpm Cycle Time: 1min - 99h59min, or 1sec - 99min59sec
Max. Loading Capacity	4.5 Kg Max.
Sample Holder & Tube	Standard plastic foam sample holder for 50 pcs 16 mm Dia x 115 mm L nylon tube 50 pcs Nylon tubes ( 16mm dia.,~15 ml) are included for immediate use A spare sample holder with various size cavity is available upon request Tube Holder Holder P/N Tube Qty & Diameter Tube Holder Size(mm) MTV-B01 50x Ø10mm 245x132x45 MTV-B02 50x Ø12mm 245x132x45 MTV-B04 50x Ø16mm 245x132x45 MTV-B05 15x Ø25mm 245x132x45 MTV-B06 15x Ø29mm 245x132x45 MTV-B00 Spare holder 305x178.5x25
Optional containers Click here to see a video	This vibrating device also can clamp single or multiple containers for mixing and milling. Click Pic. 1-2 to order a container A heated container with temperature control is available upon request ( Pic. 3                     Pic. 1                    Pic. 2                          Pic. 3
Grinding media	To achieve better milling and mixing, you may consider putting zirconia milling balls into the microtube Milling balls: Ø 5 mm, Ø 1.0 mm; Ø 1.5 mm; Ø 3.0 mm Various size zirconia milling balls are available to order at MTI for ball milling with microtube. Click the left picture to order
Dimensions	426x250x480mm
Net Weight	55 lbs / 25kg
Compliance & Warranty	Two years limited warranty with lifetime technical support CES certified NRTL or CSA certifications are available upon request at the extra cost
