Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

€0,00
Port Location

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

MTI

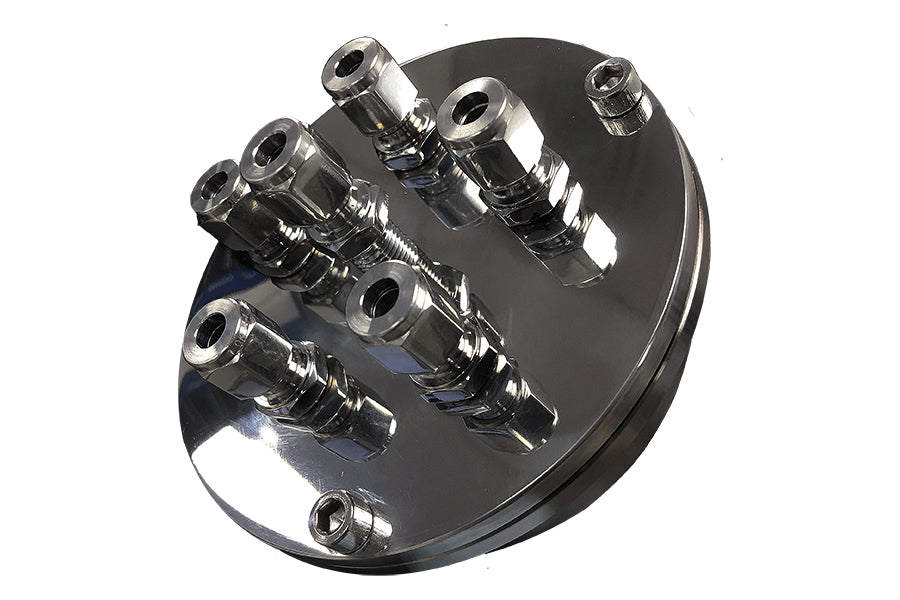

This is a single-side flange for an 80mm O.D. tube with six 1/4" tube fittings. It provides multiple feed-throughs for various gasses delivery and thermocouple insert.

Specifications:

Features
  • SS304 Stainless steel flange with double high-temperature silicon O-rings
  • Hex screw tube sealing with no welding or gluing needed.
  • Ideal for any type of tubing: ceramic, glass, quartz, steel pipes, etc.
  • Multiple feed-throughs for various gasses delivery and thermocouple insert.
Structure & Option
  • Flange for 80mm O.D. tube
  • Six 1/4" feedthrough with ferrule tube fitting
  •
Vacuum Level  10-5 torr (molecular pump) and 10-2 torr (mechanical pump)
Dimension
  • Flange dimension illustration
  •
Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
  • Please consider purchasing our ceramic tube block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products

STANDARD PACKAGE:

Part Number Part Name Qty
1 Inner and Outer Flange 1 pair
2 Feedthrough Nut 6
3 Ferrule Fitting 6 pairs
4 Centering Ring 1
5 Hex sealing screws 3
6 High-Temperature Silicone O-ring (White) 1
