Zirconia Jar w/ SS Jacket for SFM-3 & SFM-3-II Milling Machines (80ml) - MJ3YSZ80

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

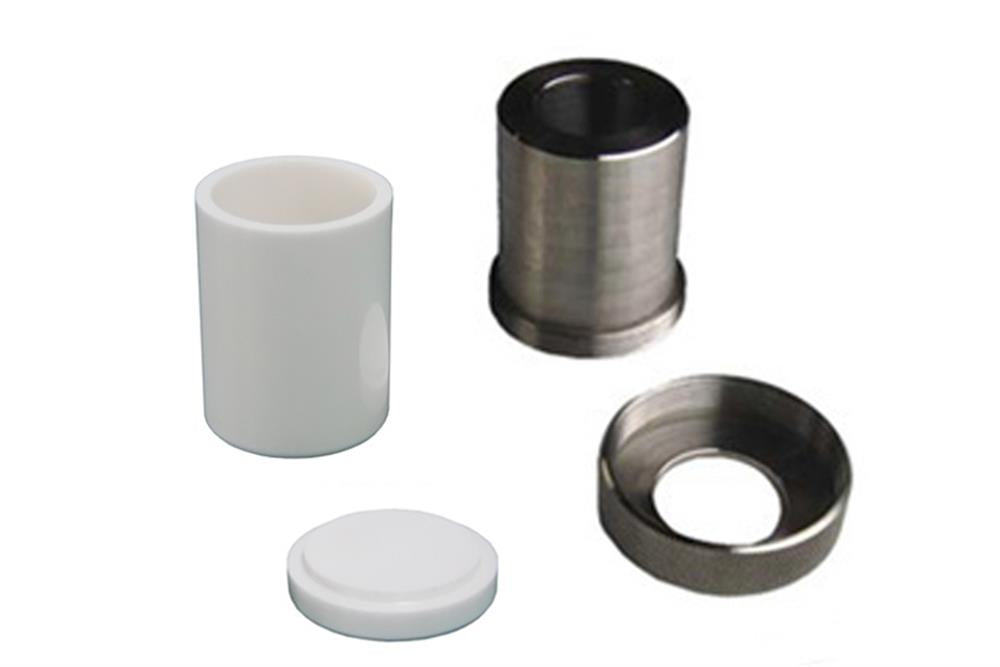

Zirconia Jar w/ SS Jacket for SFM-3 & SFM-3-II Milling Machines (80ml) - MJ3YSZ80

MTI

Zirconia Jar can be used for the  MSK-SFM-3, MSK-SFM-3-F, and MSK-SFM-3-II for milling materials to avoid iron or other inorganic contamination in air-tight condition.

SPECIFICATIONS

Material
  • Zirconia (Purity: >99.99%)
  • Hardness:  > 8.5 Mohs
  • Density:    ~ 5.9 g/cm3
Capacity
  • 84ml (actual cubage)

Package
  • 1 pc of Zirconia jar with SS Jacket (two O-rings are included to seal the zirconia jar)
  • Please click the picture left to order Zirconia balls



Ball Miler Compatibility

Zirconia Jar be used on the
Weight
  • 1.6 lbs
Dimension
Application Notes

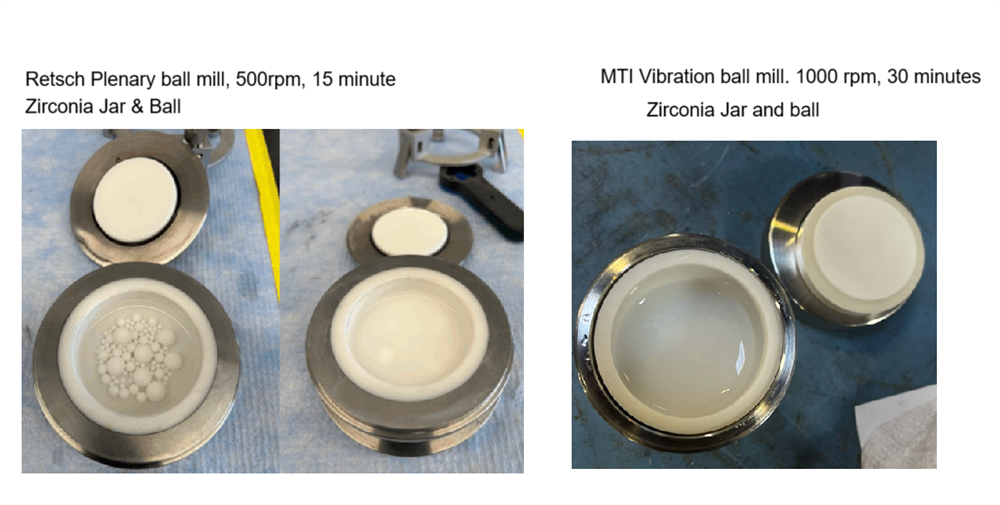

  • Warning:  Mill an empty the zirconia jar and ball, may cause Zirconia powder to chip out.  Please see the picture below test, whatever where the jar is made.
  • To avoid contamination from the wall and ball, please fill the sample into the jar with 1/3 volume first before milling.  You may start at a slow speed and let powder coat to the surface of the wall and ball, then go a higher speed.
  • For air-sensitive material, you may fill the sample and balls with an inert gas glovebox, then ball milling outside
