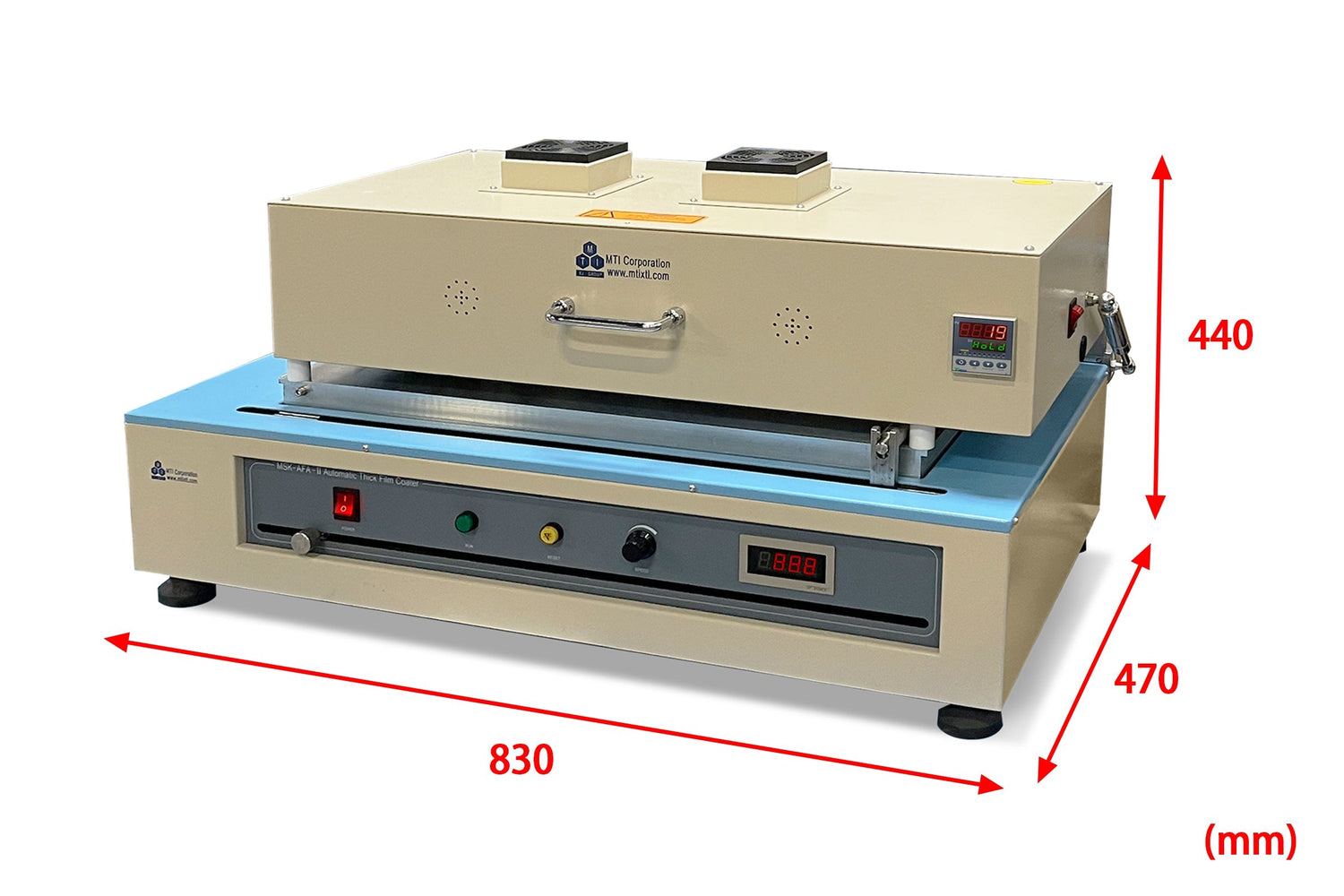

120°C Max. Film Coater w/ Vacuum Bed (12"Wx24"L) and Rapid Infrared Heating Cover & 250mm Doctor Blade-MSKAFAIIVCIR

MSKAFAIIVCIR is a CE Certified larger size automatic film coater with a vacuum bed and a rapid heating cover that heats up to 120ºC. It is designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed-thickness applicators. It has a stable driving system to promote a smooth coating with all types of materials. The pin holes on the bed can hold the substrate sheet on the bed via a vacuum. This is very helpful when performing coating on a thin substrate. It is an ideal tool for ceramic tape casting and Li-Ion battery electrode coating.

SPECIFICATIONS

Powe	110V version, two separated power cables.  IR cover, 120VAC, 10A, 1200 W, 50/60Hz, NEMA 5-15P Coater, 120VAC, 18 A, 2160 W, 50/60Hz, NEMA 5-20P 208-240V version, one power cable 208-240VAC, 3400 W, 50/60 Hz, without plug.
Traverse Speed	10 - 100 mm/sec variable [Without any load, the actual traverse speed is around 90 mm/s as the nomial speed is set as 100 mm/s. Therefore, the real speed for coating should be calibrated by customer themselves by using a ruler and stop watch] Accuracy: 10mm/sec Controlled by a 24 VDC motor.
Stroke Length	10 - 530 mm adjustable by using the Adjustable Position Switch
Heating Vacuum Bed	A vacuum bed is made of aluminum alloy with a micro-size hole Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) Heating elements are built inside the vacuum bed for uniform heating up to 100ºC Max.  Precision digital temperature controller with +/- 1ºC accuracy Type K thermocouple
Rapid Heating Cover	3 Electric Infrared Tubular heater Element is installed on the heating cover for rapid heating. 1 thermocouple is installed for temperature reading. Max Temperature: 120°C Temperature accuracy: +/- 2°C Heating Rate: approximately 1.2°C/s
Film Applicator   Pic. 1        Pic. 2	250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm (Pic. 1) Note: Thinnest film can be achieved is > 10 microns Optional hybrid film applicator of Blade and Slot die is available at the extra cost ( Click Pic 2 to see specs)
Vacuum Pump (Optional)	Please click the checkbox to order CE Compliance 120L/min Oilless Vacuum Pump
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
Application Notes	Pic.1 & 2 show coated cathode for Li-Ion battery. Please click here to see how to coat an electrode sheet. It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.) You need a vacuum mixer to remove air bubbles from the slurry to make uniform coatings (Click Pic.4) You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.) You may need a vacuum oven to dry the films and remove the binder after coating. (Click Pic.6 for detail.) Rolling pressing is necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here. (Click Pic.7 for detail.)                                         Pic.1              Pic.2           Pic.3          Pic.4
DIY ideas or options	Ultrasonic coater         Roll to roll          Electrospinning coater         Roll to Roll
