MTI  |  SKU: SPG-6A-I

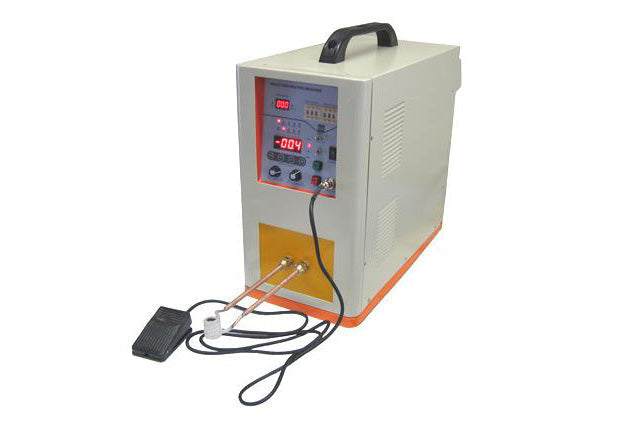

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

MTI

EQ-SPG-6A-I Compact 6KW Ultra High-Frequency Induction Heater is designed for quickly melting small quantities (<100g) of metallic material.

Features

  • Easy operation: Digital display shows output power, frequency and current.
  • Easy setup: Plug in power and connect cooling system.
  • Simple instructions allow you to learn operation within 10 minutes.

Specifications

Working Voltage 180 - 245 V AC, 50-60 Hz, Single Phase
Max. Output Power 6KW
Input Current 5 - 30 Amp (50A breaker required) Adjustable with digital display
Output Frequency 100 - 500 kHz
Duty Cycle 100%
Max. Sample Weight 100g
Timer Control Automatic timer control or Manual control selectable
Manual Control: by Foot Pedal
Automatic Heating Time: 1-99 Seconds
Automatic Dwell Time: 1-99 Seconds
Automatic Cooling Time: 1-99 Seconds
Cooling Air Cooling Rear Fan
Water Chiller (Optional):
Flowrate: > 3 L/Min
Pressure: ≥ 0.2 MPa (29 Psi)
Tap water is acceptable, but using a Recirculating Water Chiller is highly recommended.
Water Protection Over-pressure and over-temperature switch
Induction Coil Made by 5mm Dia. Copper tube (One Coil 20mm Dia. x 45mm H is included)
Customized copper coils are available at extra cost upon request
Product Dimension 520mm(L) x 240mm(W) x 500mm(H)
Net Weight 24 kg (53 lbs)

Application Notes

  • Applications: Melting, Sintering, Annealing, Heat treatment, Quenching
  • The heater will shut down if over output occurs. Please reduce the sample size to keep the heater operating under Max power
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact us for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared
  • For customization inquiries, please contact us.
