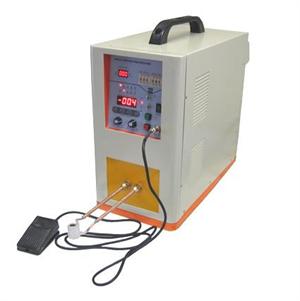

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - EQ-SPG-6A-I

EQ-SPG-6A-I Compact 6KW Ultra High-Frequency Induction Heater is designed for quickly melting small quantity (<100g) of metallic material.

SPECIFICATIONS:

Working Voltage	180 - 245 V AC, 50-60 Hz, Single Phase
Max. Output Power	6KW
Input Current	5 - 30 Amp (50A breaker required) Adjustable with digital display
Output Frequency	100 - 500 kHz
Duty Cycle	100%
Max. Sample Weight	100g
Timer Control	Automatic timer control or  Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Colling Time: 1-99 Seconds
Air Cooling	Rear Fan
Water Chiller (Optional)	Flowrate: > 3 L/Min Pressure: ? 0.2 MPa (29 Psi) Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please click here to order separately Protection: Over-pressure and over-temperature switch
Water protection	Over-pressure and over-temperature switch
Induction Coil	Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included) The customized copper coil is available at an extra cost ($300/ea) upon request
Product Dimensions	520mm(L) x 240mm(W) x 500mm(H)
Warranty	One year limited warranty with lifetime support
Operation Manual
Application Notes	Applications: Applications:     Please click here to learn the Fundamentals of Induction Heating Melting Sintering Annealing Heat treatment Quenching The heater will shut down if over output occurs. Please reduce the sample size to keep the heater operating under Max power Please click here to learn how to setup crucible for melting Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared For customization inquiries, please complete the "Customize Induction Heating System Form" and return it to info@mtixtl.com
Net Weight	24 kg (53 lbs)
Shipping Dimensions	40"(L) x 30"(W) x 30"(H)
Shipping Weight	45 kg (100 lbs)
