MTI  |  SKU: MSK-TE906-1000L

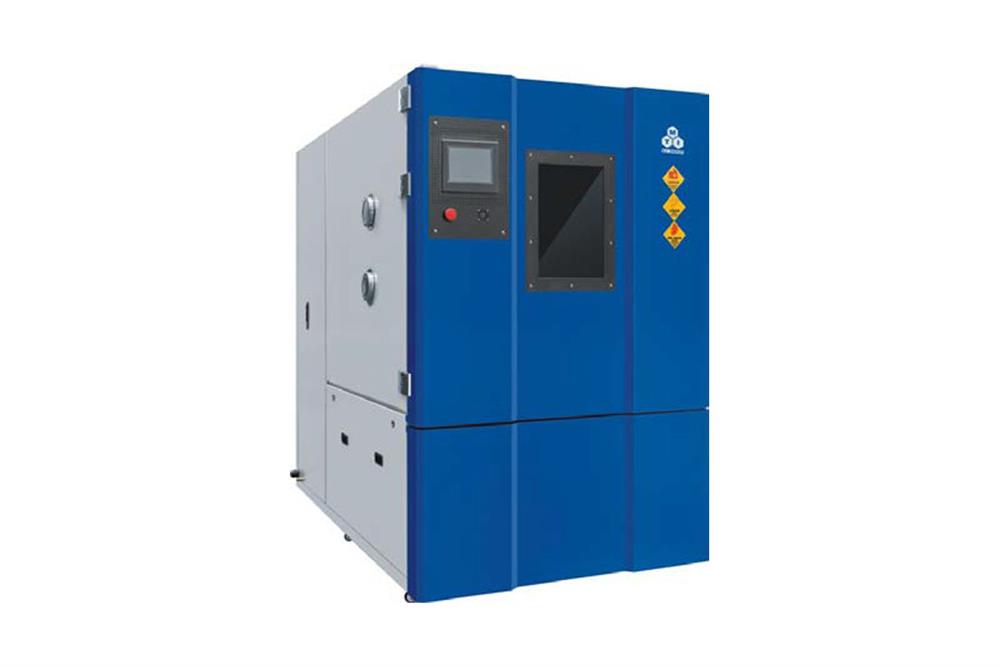

1000L Programmable Fast Thermal Test Chamber (-70C - +150C, UN38.3.4.2) - MSK-TE906-1000L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1000L Programmable Fast Thermal Test Chamber (-70C - +150C, UN38.3.4.2) - MSK-TE906-1000L

MTI

MSK-TE906-1000L is a 1,000 liters programmable therm test chamber, capable of studying the performance of rechargeable battery at rapidly changing temperature in the range from -70ºC to 150ºC. The chamber contains a built-in air blower that enables to achieve a uniform temperature field. The test temperature is consciously monitored by a built-in thermocouple and could be precisely controlled by the integrated PLC system.
The thermal testing system is built based on the thermal test requirement UN 38.3.4.2 of Lithium-ion battery testing requirements of UN manual of tests and criteria. An observation window is mounted on the front panel to monitor the real-time status of recharge batteries. The draining system could easily collect unexpected liquids.

Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements

SPECIFICATIONS
Test Chamber Features
  • SS304 stainless steel chamber with of foam polyurethane and fiberglass as the thermal insulator.
  • Chamber dimensions: L 1,000 mm x W 1,000 mm x H 1,000 mm
  • Obervation Window: L 270 mm x W 380 mm x T 80 mm, Four layers vacuum sealed.
  • Capacity: 1,000 Liters.
  • Vent Port: 2“ vent port built in the back for releasing pressure or smoke in case.
Control Panel
  • 6" touch-screen control panel to set up the program, and display temperature profile.
  • 15 PTM x 1500 STEP programmable, and each program can be repeated up to 999 times.
Cooling & Heating System
  • High-quality refrigeration compressor made in France (1.5HP)
  • Refrigerant R404A, environment-friendly
  • Stainless heater tube
  • Built-in beep alarm for overheated and over-current
  • Working Temperature: Programmable from -70ºC - +150ºC
  • Temperature accuracy: +/- 0.5ºC
  • Thermal couple: PT 100 2.0 diameter x 200 mm length
  • Maximum heating rate: 5ºC
  • Maximum cooling rate: 5ºC
Temperature Control
  • PID
Power
  • Voltage: AC 380 V Three Phases 50 Hz
  • Current: 50 A
  • Power: 12 kW
Machine Dimensions & Weight
  • Chamber size: 1000 mm W x 1000 mm H x 1000 mm D
  • Dimension: 1200 mm W x 1900 mm H x 1800 mm D
  • Net weight: 450 kg
Warranty
  • One-year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Compliance
  • CE certified
  • Built based on TUV, CSA, and UL, and ready to pass certificated at extra cost
