MTI  |  SKU: VBF1200X

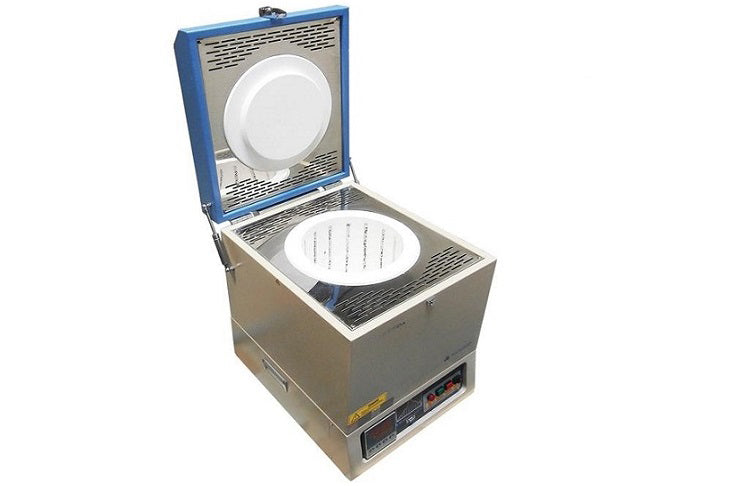

1250C Vertical Crucible Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1250C Vertical Crucible Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

MTI

SPECIFICATION:
 Features
  • The Crucible Furnace has a large chamber (9.5"d x 8.6"H,  9 liters ) and it is designed for sintering ceramic parts and components in Lab.
  •  High-quality ceramic fiber insulation around, the chamber to provide excellent uniformity and energy efficiency.
  • The heating element is embedded in the insulation for maximum heat transfer to the chamber. Max. temperature can reach 1250°C

 Furnace Structure
  • Double Layer steel structure with air cooling
  • High purity fiber alumina insulation ( made in Japan factory) for max. energy saving
  • Heating chamber size: Ø9.5" x 8.6"H , 9-liter capacity
  • Hinged-type cover for easy sample loading
  • All accessories are included for immediate use:
    •  One pcs refractory disk, which can be put on the bottom of the furnace to protect the liner from wearing out.
    •  Three pcs refractory supports, which may be put on top of the disk and bottom of the crucible to adjust crucible height.

 Power
  • AC 208 ~ 240V Single Phase 50/60Hz
  • 3.5KW Max.
  • Note Power cable included but without a plug. Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirement

 Max. Temperature
  • Max.  1250 °C  for short time < 1hour
  • Continuous working temperature:   < 1200°C
 at room temperature               at 1000°C

 Max. Heating Rate

40 °C /min Max.

 Temperature controller

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise process
  • Built-in protection for over-heated and broken Thermal couple.

Laptop, software & WiFi Control   (Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.

 Temperature Accuracy

+/- 1 °C

 Heating Element

 1300oC grade Fe-Cr-Al Alloy doped by Mo

 Dimension

510 x 435 x 425mm

 Net Weight

30 Kg

 Shipping package size

 45" x28" x 35" ( after crating)

 Shipping weight

260 Lbs

 Warranty
One year limited warranty (Consumable parts are not covered by the warranty )
Certificate
  • CE Certified
  • NRTL Certification is available upon request, additional charges will apply
Operation Instructions

Optional 		 Click here to choose a crucible
