1500C Atmosphere Controlled Induction Melting - Granulating/Casting Furnace (5kg) - IMCS-1500G

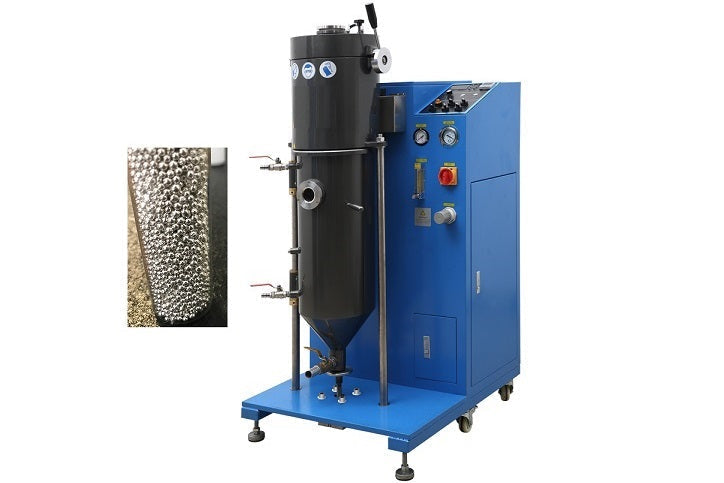

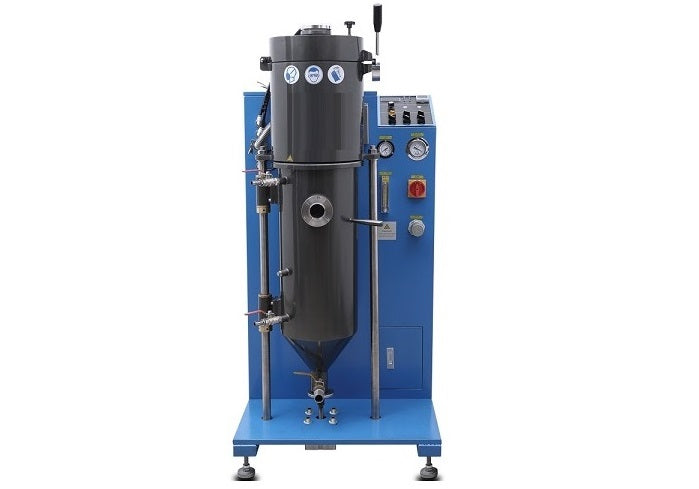

IMCS-1500G- is an induction heating system which is capable of auto-melting / casting granulation for various metal alloys up to 5 kg at Max. 1500ºC under Ar gases environment. The furnace can melt and cast bulk metallic material into 1- 6 mm diameter sphere granulation for making alloy mixing by the ball mill or further melting.


SPECIFICATIONS:

Power Requirements	Input Voltage: 208 - 240V AC, Three Phases Max. Current: 60A Output:  20 KW
Crucible Chamber	One set of standard graphite crucible is included for melting and granulating ( pls click the picture below for dimension) Pic 1:  Graphite Crucible ~ 750 ml for induction melting. Pic. 2: Graphite adaptor with 0.8 mm hole for granulation by quenching into water casting Pic. 3. Graphite rod for switching casting Customized crucible dimension is available upon request at the extra cost  Pic. 1Pic. 2        Pic. 3
Casting Chamber	Accommodates flasks 5'' diameters x 9" high  Flask is swiveled out from the bottom of crucible chamber to enable easy insertion and removal of flasks Flask is driven by compressive gas > 150 PSI. The compressive air pump is required, but not included.  You may click the link below to order:
Temperature Control	Max.Working temperature 1500ºC S-type thermocouple allows the user to closely control and monitor the temperature with the most accurate readings Heating is electronically controlled to minimize temperature overshoot and to hold the set-point temperature stable Bottom-pour design of crucible ensures minimal temperature drop in metal casting during the crucible to flask transfer
Vacuum and Inert Gas	Vacuum requirement: 1bar (-29.9" Hg) at sea level Vacuum gauge and handle provide easy monitoring of vacuum pressure Inert Gas Requirement: 5 liters/ minute @ 0.7 bar (10 psi) hi-purity nitrogen or argon Double stage rotary vane vacuum pump is included with this casting system
Water Cooling	16L/ min water floow  Please click picture below if you need a recirculating water chiller
Warranty	One-year limited warranty with lifetime support
Compliance	CE certified NRTL certification is available upon request at extra cost
Application Notes	Please clicks here for the melting temperatures of various metals Attention: A pressure regulator must be installed on your input gas tank ( click the picture below to review ) and have the output gas pressure set below 3 PSI at all times after opening the gas tank with the gas maintained in a continuous flowing condition. Gas build up with pressure levels exceeding over 3 PSI may cause irreversible damage to the furnace chamber.   Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages. Click here to learn more about the installation of a gas regulator. The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
Dimensions	900 L x 750W  x 1500 H mm
Operation
Net Weight	132kg
Shipping Weight	186kg
