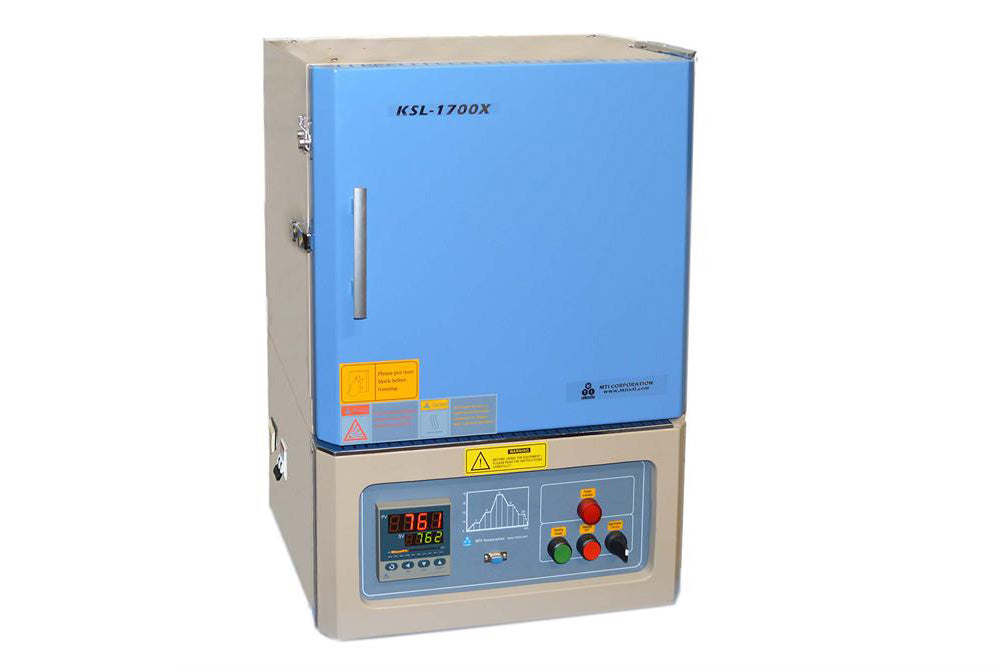

1750C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) Kathal Super-1800 Heating Elements - KSL-1700X-KA

• Double shell steel case with cooling fan to keep case surface cool
• High purity alumina fiber insulation for max. energy saving
• All electriccomponents are UL or Met recognized and ready to pass any safety test worldwide

• Chamber: 160 x 150 x 150mm (6.3" x 5.9" x 5.9"), 3.6L
• Overall: 515 x 500 x 730 mm (20.28" x 20" x 28.75")

Power

4.8 KW

Voltage

Standard Working Temperature

1700° C or 3092° F  (continuous)

Maximum Working Temperature

1750° C or  3180° F (< 3 hours)

Heating Rate

0~20°C / min (suggestion  =< 10°C)

Temperature Accuracy

+/- 1° C

Temperature Uniformity

• +/- 5°C over 120 mm (5") @ 1700°C
• +/- 2°C over 80 mm (3") @ 1700°C

Heating Elements

Thermocouple

• FA-YD518P-AG temperature controller is included.
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port
• MET Certified

• MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package  is available at the options bar. Click for the detail information about the MTS02-Y software kit.

• You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.

• Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters operating range.

• 10 feet length 10-3 AWG heavy duty UL approved power cable is included
• Extra length cable can be ordered by click picture below
• The plug is not included. You can order from your local hardware store according to female plug in your lab, or order from link below (30A plug)

          (click here to order plugs from us)

Shipping Weight

355 lbs

Shipping Dimensions

48" x 40"x 45"

Warranty

• One year limited warranty with lifetime support.  (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
• ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.

• CE Certified
• NRTL or CSA certification is available at extra cost.

Application Notes

• For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
• The cooling rate shall also not exceed 10 °C /min.
• This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please click here to learn how to DIY gas purging system.
• The refractory block must be inserted before closing door.

 Quantity

KSL-1700X

 KSL-1700X High Temperature Muffle Furnace

 1 set

 KSL7-01

Kanthal Super 1800C Grade Heating Element, 4 pcs installed in furnace

 4 pcs

 KSL7-02

B-Type Pt-Rh to Pt-Rh Thermocouples with A
